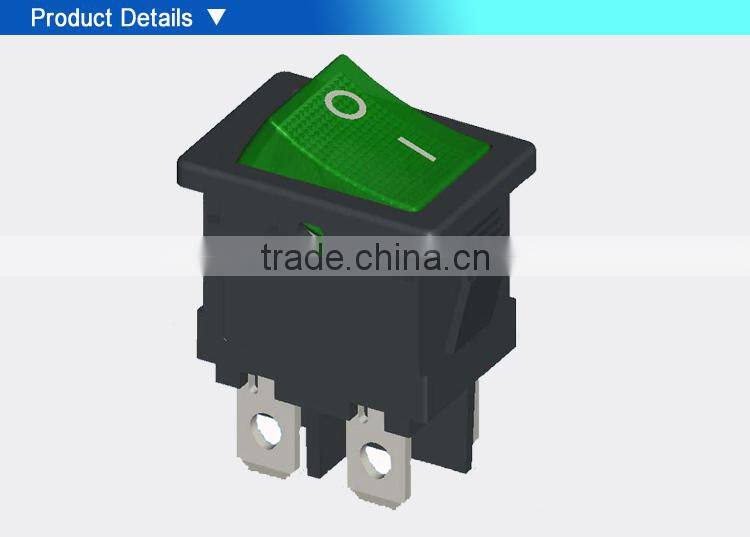

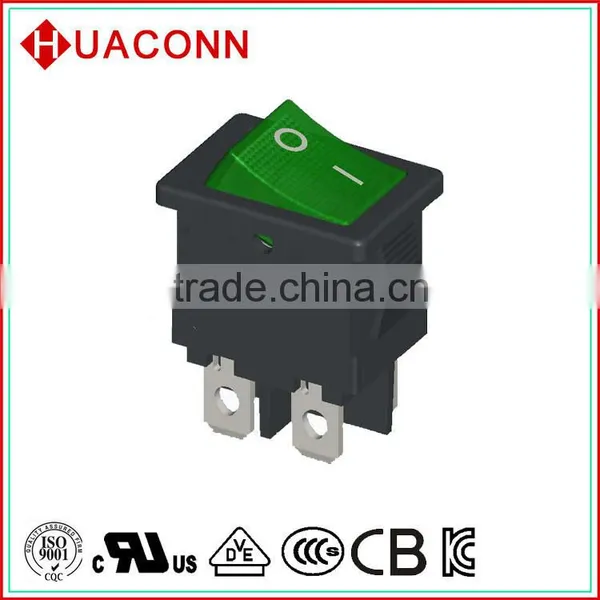

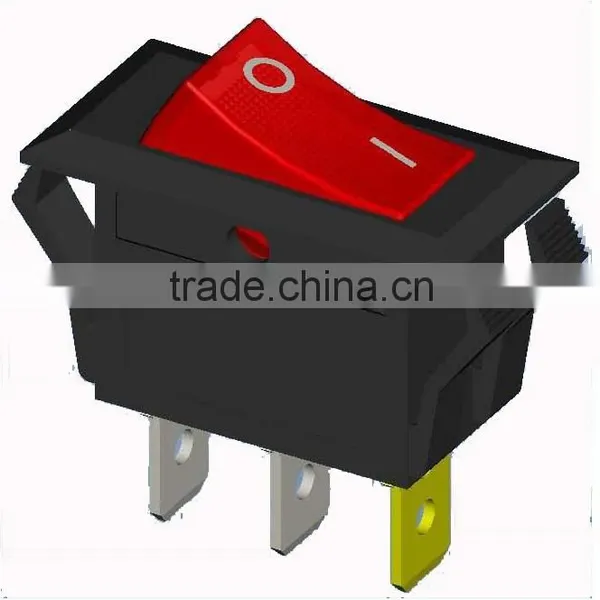

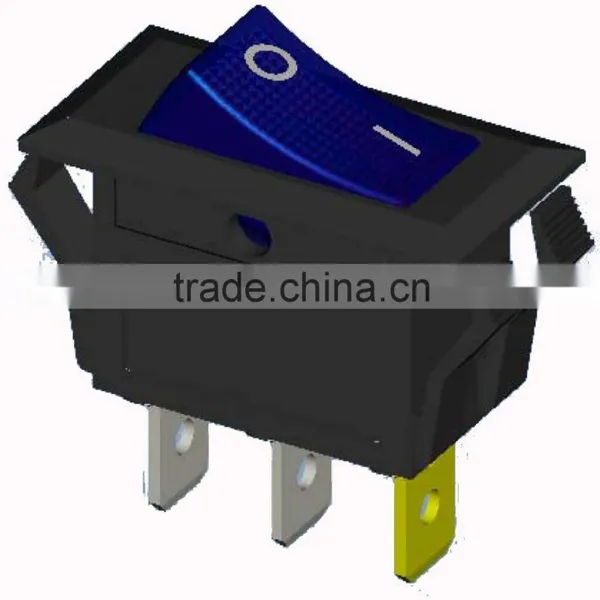

Help CenterUL Cetification T125 6 Pin Micro Switch
Related Products
-
Rocker Switch 125v 16a 250vNegotiableMOQ: 1000 Pieces -
Rocker Switch Light T85 250vac Red LightNegotiableMOQ: 1000 Pieces
-
Electrical Rocker Switch 8A 250V 10A 125VNegotiableMOQ: 1000 Pieces
-
Rocker Switch T120 8A 250V 10A 125VNegotiableMOQ: 1000 Pieces
-
Small Switch Red Button 8A 250V 10A 125VNegotiableMOQ: 1000 Pieces
Specification for the rocker switch
Rated load |
16A 250V AC 1/4 HP 20A 125V AC 1/4 HP 250V AC 3/4HP |
Initial contact resistance |
50m Ωmax |
Insulation resistance |
100M Ω |
Withstand voltage |
1500VAC for terminal to terminal |
Mechanical life |
100000 cycles |
Electrical life |
10000 cycles |
Terminals type |
quick contact and soldering |
Working temperature |
≤105℃ |
Working force |
700±300gf |
Main material of Body |
PA66 |
Material of Actuator |
PA66 |
Material of Terminals and movable contact |
brass |
Certificates: UL VDE KC CE CB RoHS CCC
All of our products are UL VDE KC CE CB RoHS CCC approved.
As a manufacturer in the field of manufacturing AC sockets, AC Inlet, receptacles and rocker switches, we can design the items as requirements. It is available for us send samples for testing at any time.
Please contact us to get the drawing of our items by email, thanks!
