Help CenterDouble Push Button Switch Resistance Type ,red and Green With a Light 220V XB2-EW
Related Products
-
Extended Momentary Push Button Reset Switch,copper or Silver Contact XB2-ELUS$ 0.2 - 1MOQ: 10 Pieces -
Double Push Button Switch XB2-BLUS$ 0.2 - 1MOQ: 10 Pieces
-
Double Push Button Switch With Light, B2-BW,copper or Silver ContactUS$ 0.2 - 1MOQ: 10 Pieces
-
Extended Momentary Push Button Reset Switch,copper or Silver Contact Grade B XB2-ELUS$ 0.2 - 1MOQ: 10 Pieces
-
Contact Block NO or NC Copper or Silver ContactUS$ 0.07 - 0.08MOQ: 10 Pieces
Specifications
1. double push button switch resistance type2. CCC,CE ,ISO9001:2008,IAF,UKAS
3. certified as Yellow Supplier by CHINT
Description
These are our company's double push button switch resistance type models in the picture , you can add X before the double push button switch resistance type models. If you want one double push button switch resistance type for sample ,please contact us .thank you.
| double push button switch resistance type LED | ||||||
| Nominal voltage | AC/DC 6V | AC/DC 12V | AC/DC 24V | |||
| AC110V | AC220V | AC380V | ||||
| LED life | ≥ 30000hours | |||||
| LED color |
|
|||||
| Voltage limitation | 0.85Un≤U≤1.1Un | |||||
| double push button switch resistance type Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| double push button switch resistance type Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |

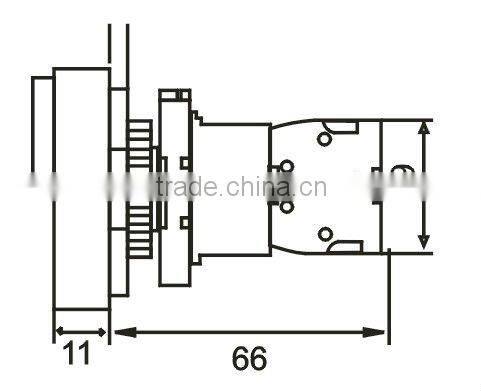

XB2- EW8365 double key is flush
XB2-EW8465 double key with a light one key is flush one key is extended
| Elucidation | Color | Reference | |
|
|
|
B2-EW8465 | |
Our double push button switch resistance type have waterproof function
Our double push button switch resistance type use the fireproof material which can protact it from burning
Our double push button switch resistance type screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The double push button switch resistance type contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
PACKAGING
1 If the quantity is big enough ,we can do double push button switch resistance type packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each double push button switch resistance type is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every double push button switch resistance type box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The double push button switch resistance type are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the double push button switch resistance type
samples will be sent by DHL,UPS,FEDEX and so on .
