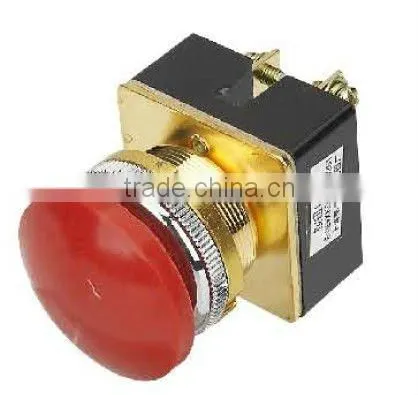

Help CenterMushroom Head Transient Moving Type Control Button LA2J

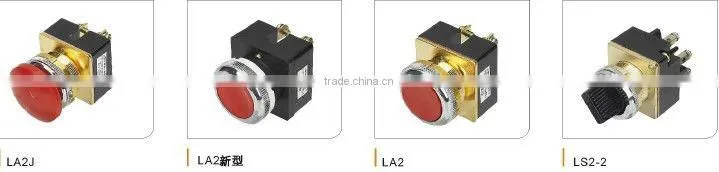

Related Products
-
Flat Head Push to Make Switch Transient Moving Type Control Button LA2NegotiableMOQ: 10 Pieces -
Rotary Switch ,voltage Selector Switch Transient Moving Type Industrial Control Button LS2-2NegotiableMOQ: 10 Pieces
-
2 or 3 Position Selector Switch ,black Rotaty Switch LA18-22X2NegotiableMOQ: 10 Pieces
-
High Grade 22mm 30mm Flat Red Head Momentary Contact Mechanical Push Button Switch T2BFRNegotiableMOQ: 10 Pieces
-
High Grade 22mm 30mm Green Flat Momentary Contact Mechanical Push Button Switch T2BFRNegotiableMOQ: 10 Pieces
Specifications
220V/6A,380V/4A,660V/2A440V/0.3A220V/0.5A,110V/1A
10:1NO 01:1NC 20:2NO 02:2NC 11:1NO+1NC 22:2NO+2NC
Description
Zhejiang Kenaida push button CO.,LTD is a professional push button and indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.
LA2 series transient moving type control button , rational construction,contact reliability,nice appearance, used in electromagnetic starter,contactor,relay and other electrical circuit which AC 50Hz below 660 V voltage,DC 440V voltage.
Contact: 10:1NO 01:1NC 20:2NO 02:2NC 11:1NO+1NC 22:2NO+2NC
Technical parameters:
Rated insulation voltage ui(v) 660V
Convention althermal current ith(a) 10A
Rated capacity 220V/6A,380V/4A,660V/2A
440V/0.3A220V/0.5A,110V/1A
The power frequency voltage withstand: 2500v/60s
Contact Resistance ≤25mΩ temperature:-25~+25°C
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details
