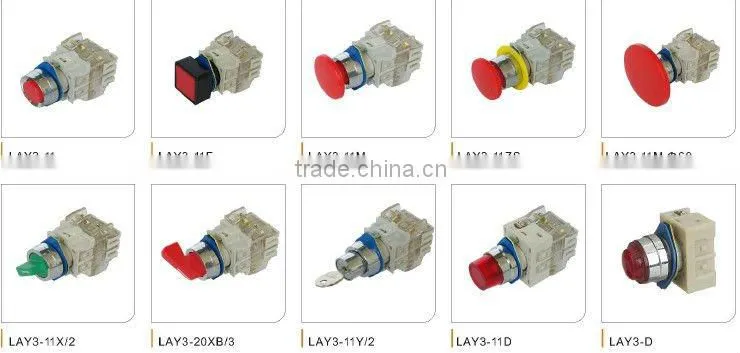

Help CenterSquare Head Momentary Push Button Switch With White Clean Contact Block LAY3-11F
Related Products
-
40mm Mushroom Head Push Button Switch With White Clean Contact Block LAY3-11MNegotiableMOQ: 10 Pieces -
40mm Mushroom Emergency Stop Push Button Switch With White Clean Contact Block LAY3-11ZSNegotiableMOQ: 10 Pieces
-
60mm Mushroom Push on Pull off Button Electrical Switch With White Clean Contact Block LAY3-11MNegotiableMOQ: 10 Pieces
-
2 or 3 Position Selector Switch,rotary Electrical Switch With White Clean Contact Block LAY3-11X/2NegotiableMOQ: 10 Pieces
-
2 or 3 Position Selector Switch,rotary Electrical Switch Long Lever With White Clean Contact Block LAY3-20XB/3NegotiableMOQ: 10 Pieces
Specifications
LAY3 series be used in electromagnetic starter,contactor,relay which AC 50Hz below 380V voltage ,CD below 220 voltage .Description
Zhejiang Kenaida push button CO.,LTD is a professional push button and indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.
scope of application
LAY3 series be used in electromagnetic starter,contactor,relay which AC 50Hz below 380V voltage ,CD below 220 voltage .
Normal working condition and installation conditions
Ambient air temperature:-5degree- +40 degrees, the average below +35degree in 24 hours.
Altitude:below 2000m
Atmosphere condition: when the highest temperature is +40 degree,the air relative humidity below 50%,the low temperature can allow a higher relative humidity.
Pollution grade: 3 grade
Installation Class:second
No significant shake, and the shock vibration and no rain and snow hit place
Working in without explosive tendency medium, that must be corrosion metal and damaging insulating air , and in conductive dirt place.
Rated insulation voltage Ui 380V
Convention althermal current lth 5A
Rated operational voltage Uc (V) 380V 220V 110V
Rated operational current le(A) AC-15 2.5 4 -
DC-13 - 0.3 0.6
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details
