Double Head Push on Push off Button Switch Building Block Type APBB-22N

Specifications

Description

           Zhejiang Kenaida push button CO.,LTD is a professional push button and  indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.

Application

This series be used in AC 50Hz(or 60Hz), below rated operational voltage 380V or below DC  220V industrial control circuits.

Up to the standard of GB14048.5-2008 and JB/T 3907-2008

According to the operation
button type   knob type   Push-Pull

according to utility
flat type  light type  mushroom head type   auto-lock type knob type  spin handle type key type  dual-head type

according to contact
NO contact  NC contact

Normal working condition and installation conditions

temperature

work temperature:-20 degrees

Working environment humidity : 45%-85%RH

Altitude

less than 2000m

Atmospheric conditions

when the temperature is 40 degrees,Working environment humidity is less than 50%.
Under the low temperature can allow a higher relative humidity

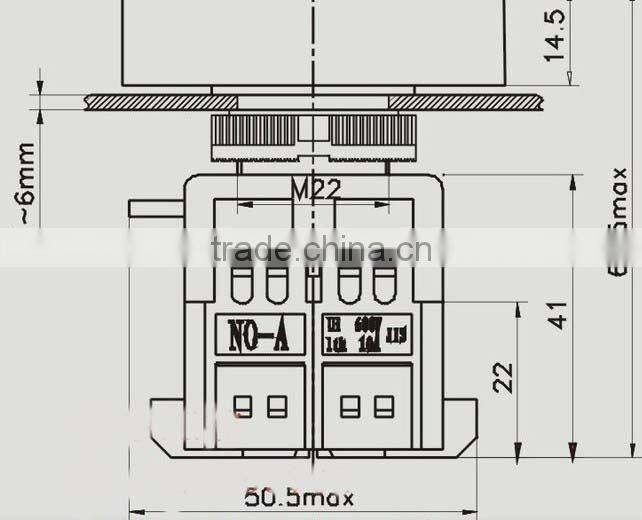

Install Aperture
22mm 25mm 30mm

Features
each button can install 1-4 couple contact
buttons use high-level flame retardant.

  PACKAGING

1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.

2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.

3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.

4 The goods are using standard packaging.

EXPORTING

1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.

2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .

3 We can help your agent which in china to deal with the exporting process.

4 The goods also can be exproting by your trading company .

5 You can contact our sale department for more details
