Specifications
1. contact type: NO+NC2. push button
3. many colors
Description
Zhejiang Kenaida push button CO.,LTD is a professional push button and indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.

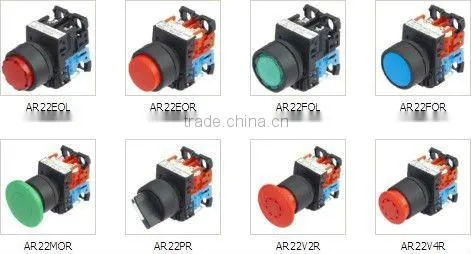

These are our company's models in the picture .please remind us which type and color you want .thank you .If you want one piece ,please contact us.
Specification
Category push button switch
push button switch with light
emergency stop push button switch
choice switch
choice switch with light
rated insulation voltage 600V AC/DC
electrical life 220V AC 6A more than 500000
220V AC 3A more than 1000000
operating frequency 1200 times/hour
AR22VGE type :1800times/hour
dielectric strength 2500V AC
insulation resistance more than 100MΩ
Rated pulse dielectric strength 6kV(AR22VGE type:4kV)
limited short-circuit current 1000A
short current protection system fuse 15A
Pollution degree 3
vibration resonance test:10 to 55 HZ double amplitude 0.1mm
seiche life test:16.7Hz
humidity 45 to 85% RH
| round convex | ||||
| Elucidation | Color | Contact type | Model number | |
|
|
|
green | 1NO | AR22EOL-10 |
| red | 1NC | AR22EOL-01 | ||
| yellow | 1NO | AR22EOL-11 | ||
| green | 1NO | AR22EOL-11 | ||
| red | 1NO+1NC | AR22EOL-11 | ||
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details
