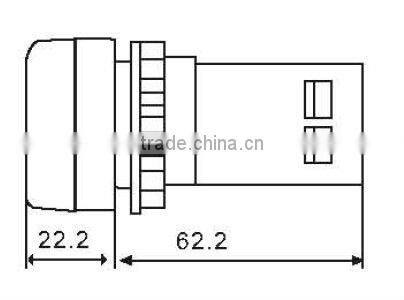

Flat Momentary Electrical Push Button Switch KB7-CA

Specifications

Description

            Zhejiang Kenaida push button CO.,LTD is a professional push button and  indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.

             please remind us which type and color you want .thank you .If you want one piece ,please contact us.

rated capacity:

AC15  220V/6A  380V/4A  660V/2A
DC13 24V/6A 48V/3A 110V/1A 220V/5A

Biggest insulation voltage

AC 2500V  50HZ 1min

Conventional thermal current
Ith  10A

rated insulation voltage
Ui  660v

crew cut button the spring coil return
Elucidation	Color		Contact type	Model number
		black	1NO	KB7-CA21
		green	1NO	KB7-CA31
		red	1NC	KB7-CA42
		black	1NO+1NC	KB7-CA25
		green	1NO+1NC	KB7-CA35
		red	1NO+1NC	KB7-CA45

PACKAGING

1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.

2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.

3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.

4 The goods are using standard packaging.

EXPORTING

1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.

2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .

3 We can help your agent which in china to deal with the exporting process.

4 The goods also can be exproting by your trading company .

5 You can contact our sale department for more details
