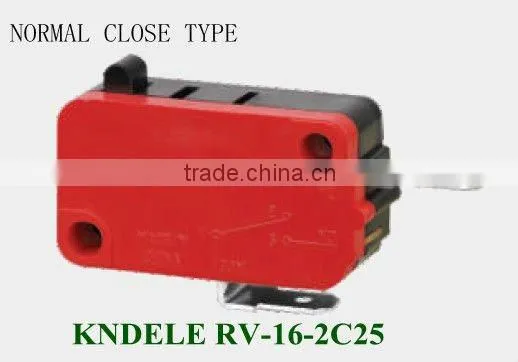

Help CenterRV Micro Switche NC Types16A RV-16-2C25
Related Products
-
RV Micro Switch With Middle Lever 16A RV-162-1C25NegotiableMOQ: 10 Pieces -
RV Roller Lever Micro Switch 16A RV-165-1C25NegotiableMOQ: 10 Pieces
-
RV Screw Terminal Type Smart Micro Switch 16A RV-16-1B5NegotiableMOQ: 10 Pieces
-
RV Width Terminal Type Smart Tactile Micro Switch 125V 16A RV-16-1C5NegotiableMOQ: 10 Pieces
-
RV Snap Action Micro Switches With Partition 125v 16A RV-16-1C2R5NegotiableMOQ: 10 Pieces
Specifications
The small basic switch pursues is safety, credibility.ZHEJIANG KENAIDA PUSH BUTTON
Packing & Delivery
Packing: standard exporting packaging or according to customer's request
Delivery detail: 7 days after payment or it depands on the quantity
You can contact our sale department for more details.
Description
Micro Switch
The product are widely used in following fields such as the industrial machinery, household appliance, commercial machine, automobile, building automatic system and so on.
Character
1.Operating Position(OP)14.7±0.4mm,PT less than 1.2mm(button type for example)
2.Impact resistance: max 1000/s2
3.Good heat resistance: max operating temperature is T105°C
4.Rich varieties: can satisfy many requirements.(can be customized)
5.High-strength shell: plastic shell can stand 6kgf.cm. Seamless installation.
6.Up to ROHS
Installing hole
Technical Parameters
| Classification | RV-21 RV-16 RV-11 | RV-3 | |
| Operating Speed | 0.1mm-1m second(button type) | ||
| On and off Frequence | Mechanical 600 times/min; Electrical 30times/min | ||
| Insulation Resistance | ≥ 100mΩ | ||
| Contact Resistance | max 15mΩ | max 30mΩ | |
| Puncture Withstand | not terminals | AC1000V 50/60Hz 1min | |
| between no voltage metal parts and terminal | AC2000V 50/60Hz 1min | ||
| Grounding in among terminals | |||
| Vibration Resistance | Malfunction | double amplitude 1.5mm 10-55Hz | |
| Warranty | Mechanical life | ≥ 10,000,000 times | |
| Electrical life | ≥ 100,000 times | ≥ 300,000 times | |
| Working Temperature and Humidity | -25°c - +80 °c ; ≤ 85%RH | ||
Diagram
