Help CenterCross Roller Lever Micro Switch Snap Action Switch RZ-15GW54S-B3
Related Products
-
Lever Electrical Micro Switch Snap Action Switch RZ-15GW-B3(three Holes)NegotiableMOQ: 10 Pieces -
Steel Wire Lever Micro Switch Snap Action Switch RZ-15HW52-B3NegotiableMOQ: 10 Pieces
-
Action Lever Micro Switch Snap Action Switch RZ-15HW24-B3NegotiableMOQ: 10 Pieces
-
Reverse Motion Lever Electrical Micro Switch Snap Action Switch RZ-15GR-B3NegotiableMOQ: 10 Pieces
-
RV Micro Switches Small Basic Switch NO Types16A RV-16-3C25NegotiableMOQ: 10 Pieces
Packing & Delivery
Packing: standard exporting packaging or according to customer's request
Delivery detail: 7 days after payment or it depands on the quantity
You can contact our sale department for more details.
Description
Unit: mm
Characters
1.Rated current open shut capacity 15A
15A 125,250VAC
1/8HP 125VAC ,1/4HP 250VAC
1/2A 125VDC,1/4A 250VDC
2.High precision

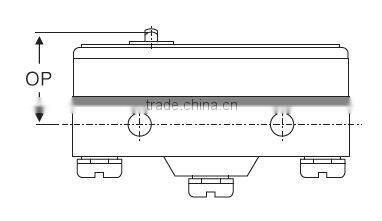

OP precision±0.4mm (Needle button type)
3.Long life: mechanical life is more than 20 million times (Needle button type)
4.Rich varieties
Diagram

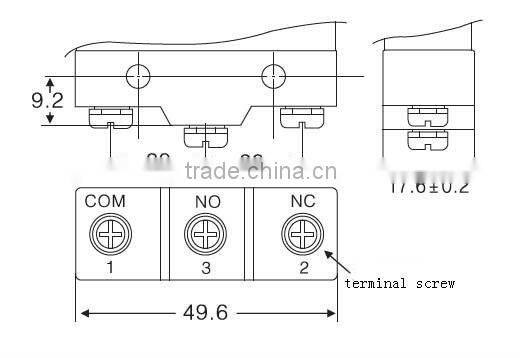

Contact Type

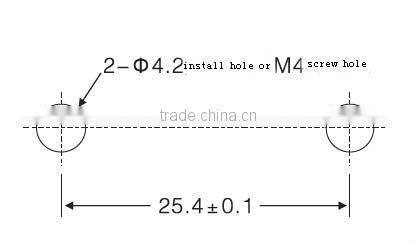

Installation Hole Size

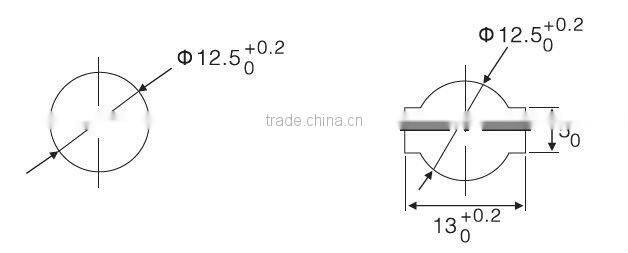

Panel Mounting Dimension
1.stick harness type
2.roller stick harness type

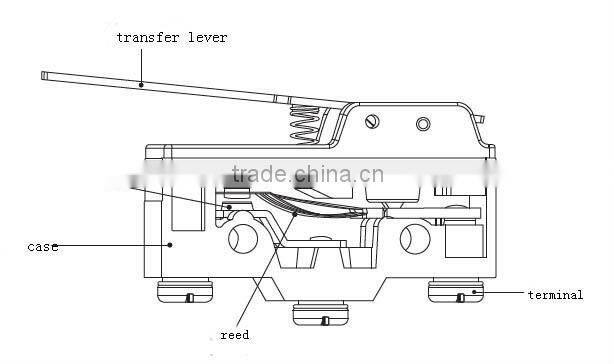

Product Structure
Wiring size
Unit: mm
Technical Parameters
| Classification |

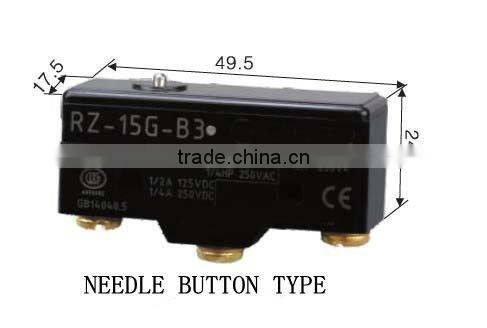

General Type (needle button type) |
Spring soft lever Type | |
| Operating speed | 0.1mm-1m/s |
1mm-1m/s | |
| On and off frequence | Mechanical | 240 times/min | 120 times/min |
| Electrical | 20 times/min | ||
| Insulation resistance | ≥ 100mΩ | ||
| Contact resistance | max 15mΩ | ||
| Puncture-withstand | not terminals contact spacing 0.5mm AC1000V 50/60Hz 1minute | ||
| contact spacing 0.25mm AC600V 50/60Hz 1minute | |||
| contact spacing 1.8mm AC1500V 50/60Hz 1minute | |||
| between no voltage metal parts and terminal | |||
| Grounding in among terminals AC2000V 50/60Hz 1minute | |||
| Resistance to vibration | double amplitude 1.5mm,10-55HZ | ||
| Impact resistance | Needle button type | max 300m/s2 | |
| other type | max 50m/s2 | ||
| Mechanical life | Needle button type | ≥ 20,000,000 times | |
| other type | ≥ 5,000,000 times | ||
| Electrical life | contact spacing 0.25mm 0.5mm 500,000 | ||
| contact spacing 1mm ≥ 100,000 | |||
| contact spacing 1.8mm ≥ 100,000 | |||
| Operating Temperature and humidity | -25 °c ~ +80 °c ; ≤ 85%RH | ||
