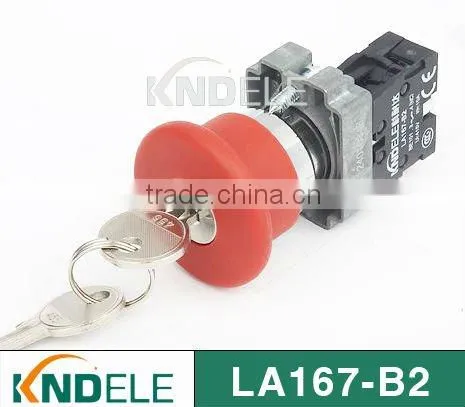

Waterproof Emergency Stop Push Button Reset Key Switch,grade A,silver Contact B2-BS142
US$ 0.2 - 1
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KND waterproof key switch
Model Number:
waterproof key switch BS
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Extended Momentary Tactile Switch Push Button Silver Contact D7-11DNegotiableMOQ: 10 Pieces -
2 or 3 Position Selector Light Switch D7-11DX/2 Silver ContactNegotiableMOQ: 10 Pieces
-
Rotary Switch ,2 or 3 Position Selector Switch D7-11X/2 Silver ContactNegotiableMOQ: 10 Pieces
-
2 or 3 Position Rotary Selector Switch With Long Handle Silver Contact D7-11XBNegotiableMOQ: 10 Pieces
-
Mushroom Automative Push Button Switches D7-11M Silver ContactNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
KND waterproof key switch
Model Number
waterproof key switch BS
Max. Current
10A
Max. Voltage
415V
Mechanical Life
100000TIMES
Specifications
1. emergency stop push button key switch2. CCC,CE ,ISO9001:2008,IAF,UKAS
3. certified as Yellow Supplier by CHINT
Description
We are a manufacturing push button switch organization.push button switch is our main product.These are our company's waterproof emergency stop push button key switch models in the picture , you can add X before the waterproof emergency stop push button key switch models. If you want one waterproof emergency stop push button key switch for sample ,please contact us .thank you.
| waterproof emergency stop push button key switch Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| waterproof emergency stop push button key switch Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| waterproof emergency stop push button key switch Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |

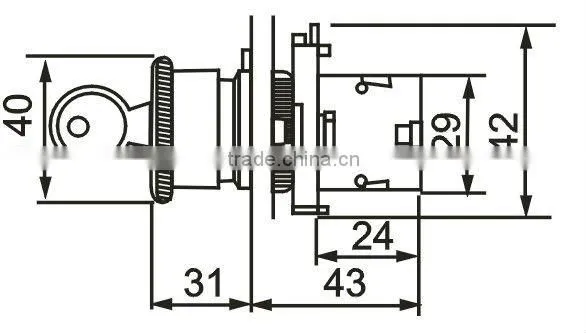

| Elucidation | Head size | Contact Type | Reference | |
|
40mm | 1NC | B2-BS142 | |
| 40mm | 1NO+1NC | B2-BS145 | ||
| 40mm | 1NO+1NC | B2-BS9445 | ||
|
1 The finger of comfort press to press | |||||
| position and switch to turn peration | ||||||
| 2 The function identify | ||||||
| 3 The auto aonnect ground | ||||||
| 4 Defend the finger get an electric | ||||||
| shock a design | ||||||
| Plate chrome metals a head and install a base | ||||||
| The quakeproof bolt carry son | ||||||
| Hard ,credibility ,as long as | ||||||
| 3000000time machine life span | ||||||
|
||||||
| Button head -touch some base a construction | ||||||
| The button head hold antomatic is in open the | ||||||
| bore | ||||||
| The button head revolve certain angle,card go | ||||||
| into touch some base | ||||||
| 2metal bolt fix quake proof | ||||||
| The anto connect ground | ||||||
| The open type connect line to carry and have | ||||||
| never need to prepare loose bolt | ||||||
| Electricity function | ||||||
| Most can pack 1-6 pay to touch some mold piece | ||||||
Our waterproof key switches have waterproof function
Our waterproof key switch use the fireproof material which can protact it from burning
Our waterproof key switch screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The push button switch contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
