Specifications
1. led button indicator2. CCC,CE ,ISO9001:2008,IAF,UKAS
3. certified as Yellow Supplier by CHINT
Description

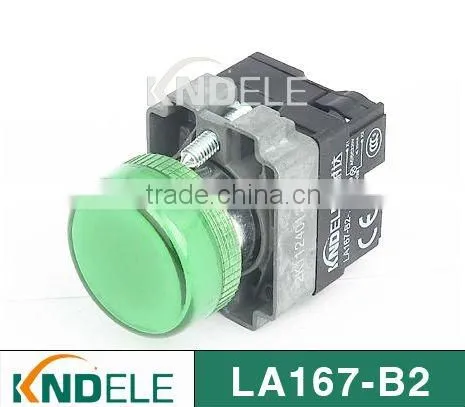

These are our company's waterproof led button indicator models in the picture , you can add X before the led button indicator models. If you want one led button indicator for sample ,please contact us .thank you.
| led button indicator LED | ||||||
| Nominal voltage | AC/DC 6V | AC/DC 12V | AC/DC 24V | |||
| AC110V | AC220V | AC380V | ||||
| LED life | ≥ 30000hours | |||||
| LED color |
| |||||
| Voltage limitation | 0.85Un≤U≤1.1Un | |||||
| led button indicator Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| led button indicator Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| Elucidation | Color | Reference | ||
| | white | | B2-BV61 |
| green | B2-BV63 | |||
| red | B2-BV64 | |||
| yellow | B2-BV65 | |||
| blue | B2-BV66 | |||
| white | | B2-BV71 | |
| green | B2-BV73 | |||
| red | B2-BV74 | |||
| yellow | B2-BV75 | |||
| blue | B2-BV76 | |||

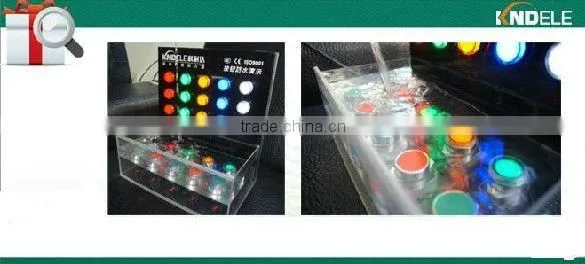

Our led button indicator have waterproof function

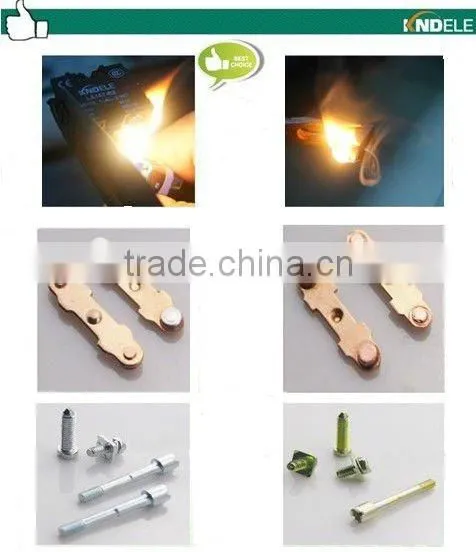

Our led button indicator use the fireproof material which can protact it from burning
Our led button indicator screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The led button indicator contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
PACKAGING
1 If the quantity is big enough ,we can do led button indicator
packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each led button indicator is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every led button indicator box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
