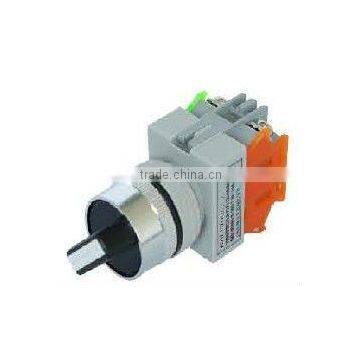

Help CenterSelector Actuator,selector Switch ,rotary Switch,KD37-11X/2 Two Position ,20X/3 Three Positon
Related Products
-
Mushroom Head Push Button Switch,NO+NC,KD37-11MNegotiableMOQ: 10 Pieces -
Key Selector Actuator , Selector Switch,Two Position or Three Position KD37-11Y/2 KD37-20Y/3NegotiableMOQ: 10 Pieces
-
Selector Actuator , Selector Switch,Two Position or Three Position With Light KD37-11DX/2 KD37-20DX/3NegotiableMOQ: 10 Pieces
-
Flat Momentary Push Button Electrical Switch KD39A-11,NO+NCNegotiableMOQ: 10 Pieces
-
Flat Auto-lock Push Button Switch KD39A-11T,NO+NCNegotiableMOQ: 10 Pieces
Specifications
1. contact type: NO+NC ,2NO2. Selector Actuator
3. black
Description
Zhejiang Kenaida push button CO.,LTD is a professional push button and indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.
These are our company's models in the picture , you can add X before the models.please remind us which type and color you want .thank you .If you want one piece ,please contact us.
| Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | |
| Protection level | IP40 |
| Contact Features | |
| Contact action | slow move NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Position | Contact type | Model number | ||
|
|
Choice switch 2P |
|
1NO+1NC | KD37-11X/2 | |
| Choice switch 3P | 2NO | KD37-20X/3 | |||
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
