indicator light 24v 220v led neon pilot light AD127-16C/S

Specifications

1.indicator light
2.many colors available
3.good quality

Description

           Zhejiang Kenaida push button CO.,LTD is a professional push button and  indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.

       These are our company's models in the picture .please remind us which type and color you want .whether you want neutral(no brand) or our brand on the goods? also remind us . if you don't remind , we will sent the goods at  random .thank you .If you want one piece ,please contact us



Semi-conductor economy energy indicator(LED)
Elucidation		Color		Reference
	The LED electronics economy energy indicator		green	AD127-16C/S
			red	AD127-16C/S

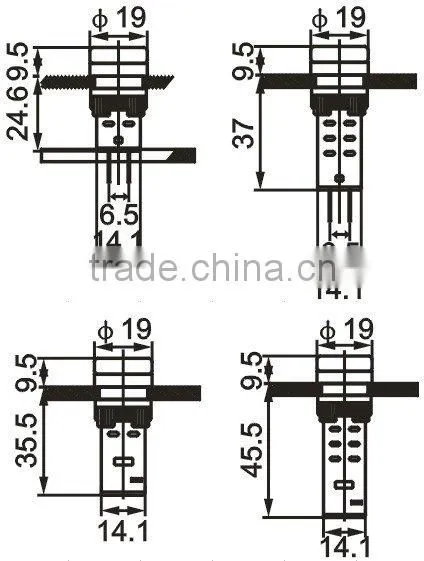

	Install size 16mm (The Led has already prepared to pack into integral whole and can't dismantle a cent)		yellow	AD127-16C/S
			blue	AD127-16C/S
			white	AD127-16C/S







Performance Characteristic

1 Continuous working life:≥30000 hours
2 Specular Level ≥ 100 cd/m²
3 Allow Instantaneous Voltage Fluctuate ±20% (above110V)
4 Power Frequency Withstand Voltage :2.5kV(AC RMS),1min
5 Operating Frequency (AC):50-60HZ
6 Rated Operational Current:≤20mA
7 Comparative Tracking Index CT1≥100,antiflaming
8 Insulation Resistance:Ui≤60v is 5MΩ,60≤Ui≤660v is 50MΩ
9 Color:red green yellow white blue









Note: AD/DCindicator is resistance buck type

          AC indicator is resistance-capacitance buck type

         AD/DCindicator’s case temperature higher than AC indicator when the voltage above 110V

Used Note: AC indicator operating frequency is 50-60HZ

                  Anti-interference type indicator’s general threshold value under 40V

                   AC two color must no wiring error
