6.3v 24v 36v 110v 220volt 380volt indicator lights led

Specifications

1.2- colour indicator light
and green available
3.good quality

Description

           Zhejiang Kenaida push button CO.,LTD is a professional push button and  indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.

       These are our company's models in the picture .please remind us which type and color you want .whether you want neutral(no brand) or our brand on the goods? also remind us . if you don't remind , we will sent the goods at  random .thank you .If you want one piece ,please contact us.

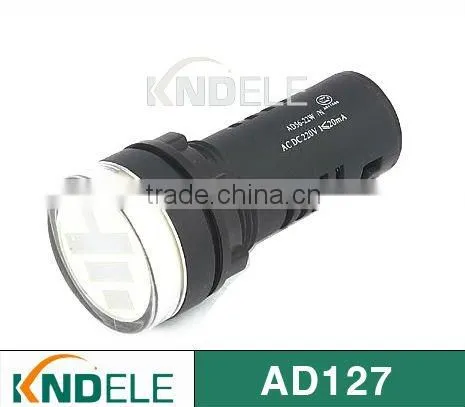

Semi-conductor economy energy indicator(LED)
Elucidation		Color		Reference
	X1X2 power on red light		green	AD127-W/N
			red	AD127-W/N
			green	AD127-W/N
			red	AD127-W/N



Performance Characteristic

1 Continuous working life:≥30000 hours
2 Specular Level ≥ 100 cd/m²
3 Allow Instantaneous Voltage Fluctuate ±20% (above110V)
4 Power Frequency Withstand Voltage :2.5kV(AC RMS),1min
5 Operating Frequency (AC):50-60HZ
6 Rated Operational Current:≤20mA
7 Comparative Tracking Index CT1≥100,antiflaming
8 Insulation Resistance:Ui≤60v is 5MΩ,60≤Ui≤660v is 50MΩ
9 Color:red green yellow white blue









Note: AD/DCindicator is resistance buck type

      AC indicator is resistance-capacitance buck type

      AD/DCindicator’s case temperature higher than AC indicator when the voltage above 110V

Used Note: AC indicator operating frequency is 50-60HZ

           Anti-interference type indicator’s general threshold value under 40V

           AC two color must no wiring error





PACKAGING

1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.

2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.

3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.

4 The goods are using standard packaging.



EXPORTING

1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.

2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .

3 We can help your agent which in china to deal with the exporting process.

4 The goods also can be exproting by your trading company .

5 You can contact our sale department for more details
