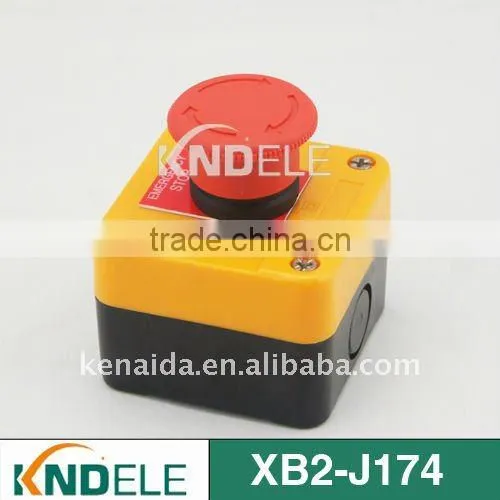

Red Sign Emergency Stop Push Button Lock Electrical Control Box

Red Sign Emergency Stop Push Button Lock Electrical Control Box photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Kenaida
Model Number:
XB2-J174
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Kenaida
Model Number XB2-J174
Protection Level IP40,IP54
Max. Current 10A
Max. Voltage 600V

Specifications

1.pushbutton box 1 hole

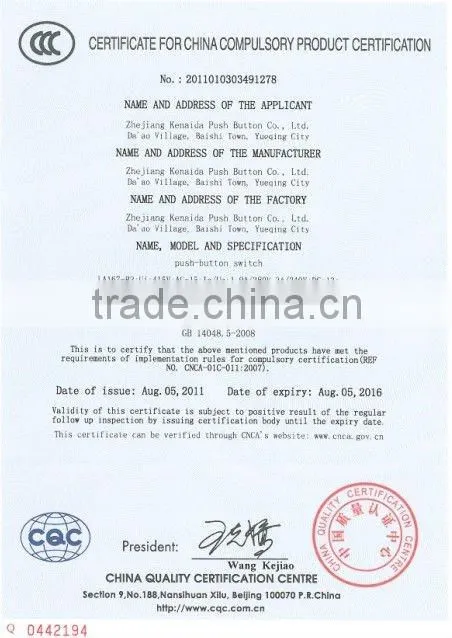

2.Certificate:CE,ISO9000
3.Working temperature
4.Diameter size:22mm/25mm

Product details:

name:pushbutton box 1 hole

Place of origin:liushi zhejiang china

Brand name:Kenaida

Protection Level:IP54,IP40

Color:White,gray,Yellow,

Material:Plastic



Payment &shipment terms:

Minimun order quantity:10 pieces

Port:shanghai/ningbo

Packaging details:10pieces/box

Delivery Time:7 days after payment

Payment terms:T/T,L/C

Supply ability:200000 per month





Detailed Product Description





1. contact type:NO , NC , NO+NC
2. our companyis certified as Yellow Supplier by Zhejiang CHINT Electric Co.,Ltd



Description

                 These are our company's models in the picture , you can add X before the models.   If you want one for sample ,please contact us .thank you.





Technical Parameters
Nominal insulation voltage Ui(V)380V
Rated current lth(A)10A
Rated operational voltage ue(v) 380250240125
Rated operationalcurrent le(A) AC-152.5 3
 DC-13 0.27 0.55



Environment Features
Match a standardCB14048 5-2008,IEC 60947-5-1
Ambient temperature-25°c- +55°c
Vibration resistance≤ 500HZ , amplitude about 1.0mm
Shock resistance ≥10g
Protection levelIP40,IP65





Contact Features
Contact action  NO or NC
Contact resistance ≤ 50mQ
Mechanical life ≥1000000
Electrical durability AC ≥100000
Short-circuit protection RT16-10A



Red Sign Emergency Stop Push Button lock electrical control boxReferenceDetail
B2-J174red 40mm mushroom head turn reset
B2-B174H29 1NCturn reset
B2-B164H29emergency stopauto-reset





Red Sign Emergency Stop Push Button lock electrical control box





Red Sign Emergency Stop Push Button lock electrical control boxRed Sign Emergency Stop Push Button lock electrical control box

Red Sign Emergency Stop Push Button lock electrical control box



PACKAGING

1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.

2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.

3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.

4 The goods are using standard packaging.



EXPORTING

1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.

2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .

3 We can help your agent which in china to deal with the exporting process.

4 The goods also can be exproting by your trading company .

5 You can contact our sale department for more details.
