Home > Products > COB controlswitch > COB CONTROL BUTTON SWITCH

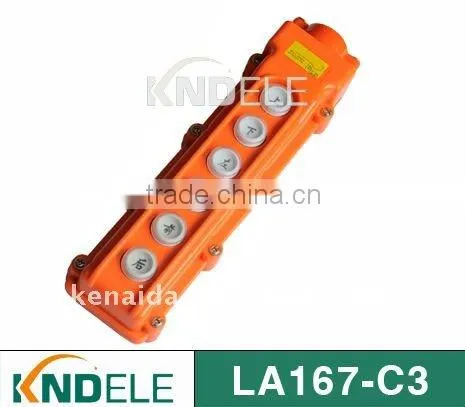

COB CONTROL BUTTON SWITCH
Negotiable
/ Piece
10 Pieces(Min. Order)
- Shanghai Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KND | |
| Model Number | LA167-C3-63 | Protection Level | IP40 IP65 | |
| Max. Current | 10A | Max. Voltage | 415V |
Product Description
Specifications
COB Push ButtonsFrequency: 50 Hz 60 Hz
Max. Current: 5A
Max. Voltage: 500v
IP 65 rain-proof, COB 21:2 lines, COB
Normal Operating Condition and Installation Conditions
1 Operational temperation:-5°c - +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can't corroding metal and damage the insulation
| Technical Parameters | ||
| Feature | ||
| Contact resistance | ≤50mΩ | |
| Mechanical life | instant-on switch 1000000 | |
| scram self-locking button 50000 | ||
| others 250000 | ||
| Electrical durability | scram self-locking button | |
| others500000 | ||
| Protection level | IP65 | |
| contact capacity | ||
| Rated operational voltage ue(v) | Rated operational current le(A) | |
| AC-15 | 380 | 2.5 |
| 220 | 4.5 | |
| DC-13 | 220 | 0.3 |
| 110 | 0.6 | |
