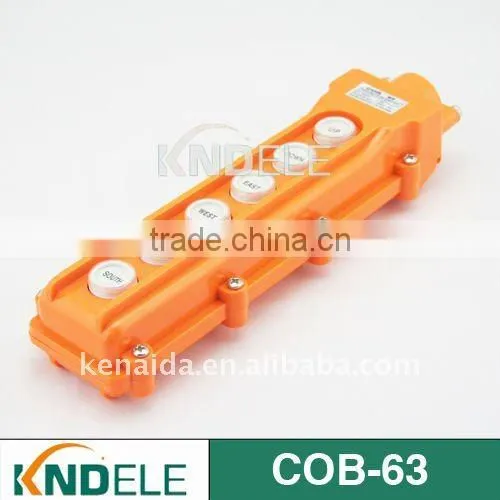

Help CenterCOB CONTROL BUTTON SWITCH COB-63
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KND
Model Number:
COB-63
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
KND
Model Number
COB-63
Protection Level
IP40 IP65
Max. Current
10A
Max. Voltage
415V
Specifications
COB Push ButtonsFrequency: 50 Hz 60 Hz
Max. Current: 5A
Max. Voltage: 500v
IP 65 rain-proof, COB 22
Quality Hoist Push Button Switch (lifting push button switch)COB61 ,COB62,COB63,COB64
Quality Hoist Push Button Switch
COB61A ,COB62A,COB63A,COB64A
Normal Operating Condition and Installation Conditions
1 Operational temperation:-5°c - +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can't corroding metal and damage the insulation
| Technical Parameters | ||
| Feature | ||
| Contact resistance | ≤50mΩ | |
| Mechanical life | instant-on switch 1000000 | |
| scram self-locking button 50000 | ||
| others 250000 | ||
| Electrical durability | scram self-locking button | |
| others500000 | ||
| Protection level | IP65 | |
| contact capacity | ||
| Rated operational voltage ue(v) | Rated operational current le(A) | |
| AC-15 | 380 | 2.5 |
| 220 | 4.5 | |
| DC-13 | 220 | 0.3 |
| 110 | 0.6 | |
