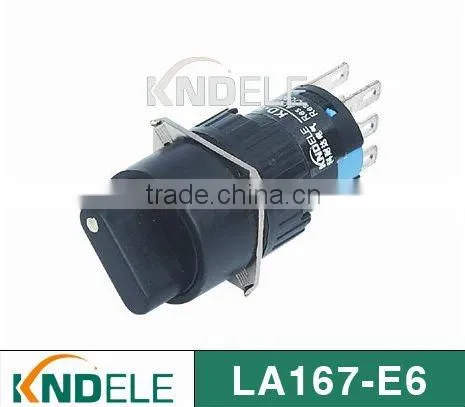

16mm 2 or 3 position mini push button switch 16mm E6 series
- 500000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T
You May Like
-
16mm mushroom head auto-reset mini push button switch 2NO+2NC KD16-11M KD16-22M
-
16mm round micro push button switch 2NO+2NC KD16-11 KD16-22
-
mininature mushroom push button switch E6-11M
-
2 or 3p rotary small key switch E6-11Y/2 E6-11FY/2 E6-11JY/2
-
220 industrial small electronic black buzzer E6-Y-B E6-F-B E6-J-B
-
XD16 indicators&switches
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KND | |
| Model Number | E6-X/2 | Max. Current | Other | |
| Max. Voltage | Other | Mechanical Life | Other |
Product Description
Specifications
1.two position rotary switch2.three shape available
3.good quality
Description
These are our company's models in the picture .please remind us which type and color you want .whether you want neutral(no brand) or our brand on the goods? also remind us . if you don't remind , we will sent the goods at random .thank you .If you want one piece ,please contact us.
| | circle two position | E6-X/2 | ||
| Square two positon | E6-FX/2 | | ||
| rectangle two position | E6-11JX/2 | |||
| circle two position | E6-22X/2 | ||
| Square two positon | E6-22FX/2 | | ||
| rectangle two position | E6-22JX/2 | |||
| | circle three position | E6-22X/3 | ||
| Square three positon | E6-22FX/3 | | ||
| rectangle three position | E6-22JX/3 |
| Rate Value | ||||
| Rated Current lth(A) | 5A | |||
| Rated Voltage (V) | 24V | 125V(110V) | 250V(220V) | |
| Direct-Current | 1A | 0.2A | 0.1A | |
| Alternating Current | P.F=1 | 5A | 3A | |
| P.F=0.7 | 3A | 2A | ||
| Performance Characteristics | |||
| Operational temperation | -25°c - +55°c (No frozen) | ||
| Make Airiness around the product | |||
| Operational humidity | 45- 85%RH (No frost) | ||
| Contact Resistance | ≤50MΩ | ||
| Insulation Resistance | ≥100MΩ | ||
| | between the contact and the lamp pin | 2000V,AC50HZ,1min | |
| between the homopolar terminal | 1000V,AC50HZ,1min | ||
| between different terminal | 2000V,AC50HZ,1min | ||
| Endure Dibratility | 50HZ,1.2mm | ||
| Endure Impact | ≥10g | ||
| Life | auto-return button | 1000000 | |
| auto-return button,selector button | 500000 | ||
| emergency stop button , key button | 100000 | ||
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details
