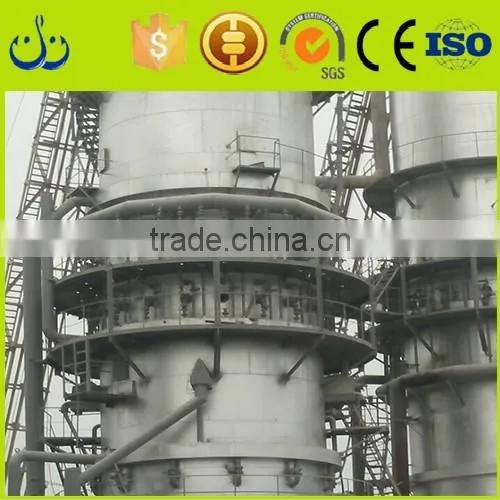

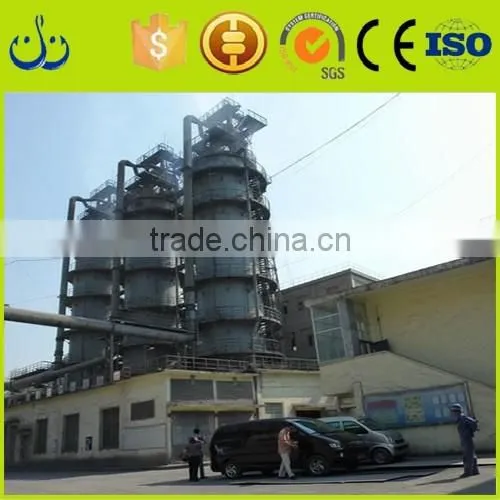

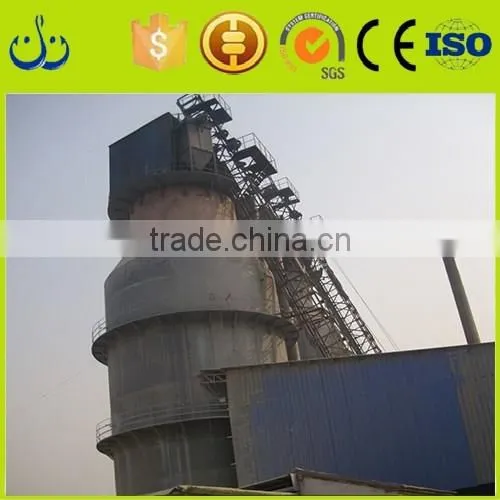

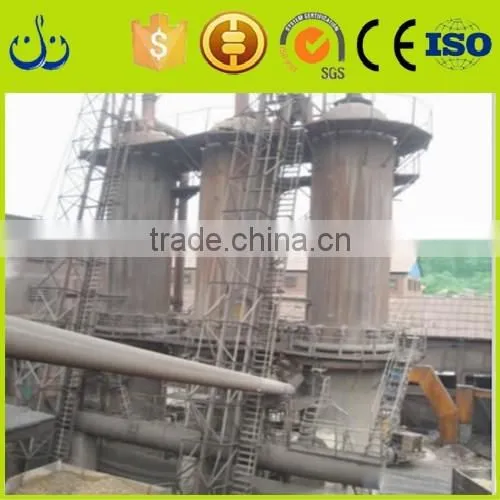

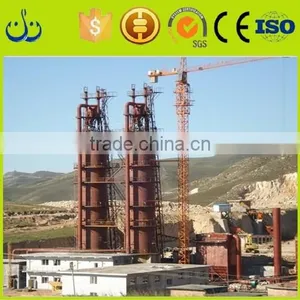

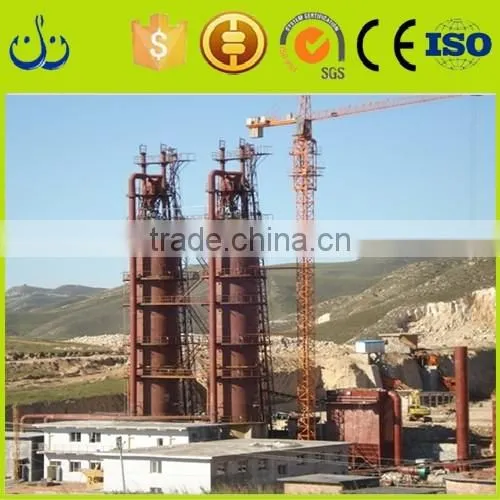

saving more space simple operation vertical shaft lime kiln manufacturers
- 12 Set / Sets per Month
- Qingdao port Tianjin port Shanghai port or any China port as your requirement.
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Blast Furnace | Usage: | Sintering Furnace |
Place of Origin: | Henan, China | Brand Name: | Liaison | Model Number: | HL-001 |
Voltage: | 380V | Power(W): | Adjustable | Dimension(L*W*H): | Depands |
Weight: | 2T-35T | Certification: | ISO9001:2008 | Warranty: | 12 Months, 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
saving more space simple operation vertical shaft lime kiln manufacturers
Technical parameters
Working Principle
After weighing the limestone and coal mixed enough to be put into the bucket elevator to the top of lime kiln,went into the inner kiln by rotary burden distributor.The limestone has been preheated,burning and cooling,its finished product(lime) could be discharged by the disk ash hoist to the finished product warehouse.
Raw material:element of limestone as follows:
Item | Grain diameter(mm) | Chemical component(%) | ||||
CaO | SiO2 | MgO | S | P | ||
Limestone | 40-80 or 20-40 | ≥53 | ≤1 | ≤2.0 | ≤0.3 | ≤0.1 |
The grain diameter of limestone required is 40-0mm,upper limit could be 5%,lower limit should be 3%.
Parameters of Range coal
Moisture(%) | Volatilization(%) | Ash(%) | Fixed carbon (%) | Calorific value(Kcal/kg) | Grain diameter |
4 | <11% | <15% | >70% | >6000 | 20-40mm |
Parameters of Briquette
Moisture(%) | Volatilization(%) | Ash(%) | Fixed carbon (%) | Calorific value(Kcal/kg) | Grain diameter |
3 | <11% | <20% | >65% | >5300 | 30-50mm |
Auxiliary machinery list
The lime produced by the vertical lime kiln could be widely used in the industry of metallurgy,chemical and cement and building material,also apply for instruments and apparatus,medical,spinning,clothing,leather,telecommunication industries and so on.
Lime and limestone are used for building material and important raw material for many industries.
product: packed,stored,transported,according to the international regulation.
Packing Details: 20ft GP: 5.80mx 2.13mx 2.18m about 25MTS,24-26m³
40ft GP: 11.8mx 2.13m x 2.18m about 25MTS,54m³
40ft HG: 11.8m x 2.13m x 2.72m about 22MTS,68m³
By bulk for any size. The quantity should more than 50mt.
Pre-sale service:Project designing,process designing,choosing suitable equipment freely provided for you.
Medium-sales service:According you to complete the acceptance of the equipment,draft the construction scheme and detailed process,and complete process of export equipment.
After-sales service:The professional engineer and technician could be sent to our customer and guide the installation,debugging and training the operators.
Henan Liaison Steel is a large scale enterprise with Integration of researching, development, manufacturing and marketing vertical lime kiln machinery. Our main business scope is: lime shaft furnace,vertical lime kilm,stone crushing series, industrial grinding series, oredressing equipment and cement equipment.
Our products have been exported to a number of foreign countries, including southeastern Asia, south Africa, south America, etc. And numerous customers have come to visit our factories with the purpose of choosing their ideal machine.
To give you a responsible quotation, you can inform us the following information:
1).What's the material you are going to deal with?
2).What's the granularity of the material?
3).What's the granularity of the final products are you going to achieve?
4).What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
