Wire And Cable Cable Making Equipment
• Usage
This series is primarily for stranded aluminum-clad steel cables,stainless steel optical fiber loose tubes,optical fiber composite overhead ground wires(POGW),stranded ACSR,
stranded bare copper wires,and by this series,a variety of cables and optical cables can be armored or shielded with steel wire.
• Technical parameter
Name |
Part |

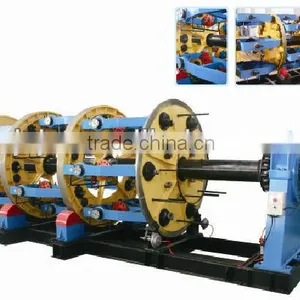

Planetary stranding machine JCJXJL630 |
|
6+12+18/630 |
6+12+24/630 |
||
Pay-off |
Pay-off drum specifications |
Φ630mm |
Φ630mm |
Strander |
Monofilament diameter |
Φ1.2-5.0mm |
Φ1.2-5.0mm |
Cabling diameter |
Φ35mm |
Φ45mm |
|
Cage rotary speed |
33-77r/min |
33-77r/min |
|
Pitch |
88 |
77 |
|
Bobbin size inside of cage |
Φ630mm |
Φ630mm |
|
Motor power |
45kw |
55kw |
|
Capstans haul-off |
Capstan diameter |
Φ1800mm |
Φ2000mm |
Haul-off speed |
5.1-36.9m/min |
||
Take-up |
Take-up bobbin |
PN1250-2500mm |
PN1250-2500mm |
• The brand of main components
Japan NSK bearing
Switzerland belt
France Schneider electric
Shenzhen Inovance inverter
• After-sales service
Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes
1) Correct operating mode
2) Correct maintenance way
3) Remove simple problem of our product
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part
2) 6 month for electrical part
• Competitive advantage
(1) We already have a history of more than 10 years. (2) Attending a lot of exhibition at home and abroad.
• Wordwild markets
India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt,Bangladesh and so on.
*Different of cable making proposal (35mm---200mm)
*Building wire sheathing line
*Building wire insulation line
*Power cable sheathing line
*Power cable insulation line
*High speed wire insulation line
*coaxial cable insulation line
*LAN cable making machinery
*Mini cable making machinery
*Twisting machines
*Coiling machines
