Electric Wire Cable Cabling and Stranding Machine

 electric wire cable cabling and stranding machine

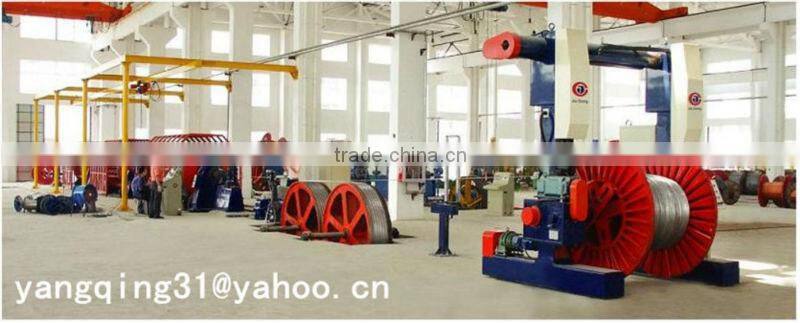

JCJX-KJ630 Type Rigid Frame Stranding Machine

Main feature:

1:The machine is suitable for stranding long length and section bare aluminumcopper , aluminum alloy, aluminum cable steel reinforcing wires to product the following power cables. Sector shapped conductors,round compacted ,single core prespiralled.

2:reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more,the equipment has high-powered, high speed.

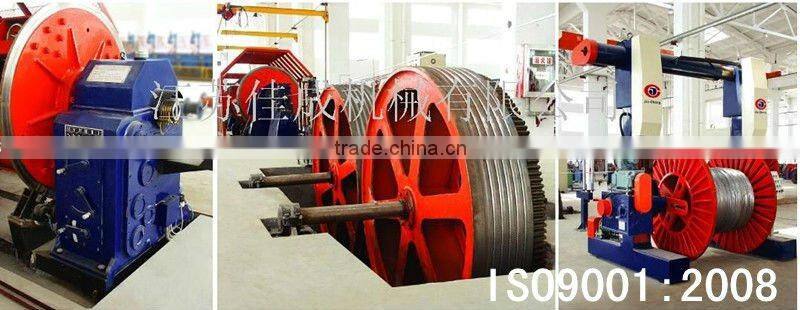

3:ir is driven by 36-stage gear-box,the tow wheels of double wheel capstan are overhung position supported on shafts. One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out. The maximum pulling force reaches 15T . each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.

 addition:

This machine’s tightening device and Pneumatic means all operated by manual

It use double driving, double traction, One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out

The gear box’s gear using hard-toothed surface grinding, so it has high precision, the noise is less than 80Db

Technical parameter:

Product:

Component:

Pre-sale training:

in order to guarantee the customers are able fully to operate the machine,if the customer need,

we can help customer training,includes:

rrect operationg mode;

rrect maintenance way;

3.remove simple problem;

our company for our machine product,since the shipment date,our company free after-sale

maintenance service guarantee period is:

1.1 year for mechanical part;

2.6 months for electrical part;

we have our own factory and we can custom the machine according to you requirements ,we also

can control :

1.the price;

2.the quality;

3.the delivery time;

Jiacheng has some world famous parts suppliers,machines have high price prefprmance ratio;
Body and other key components are produced by our own factory,quality is reliable;

 Jiacheng has more than 20 years of experiences in wire and cable machine;

Driving to Shanghai,we only need one and a half hours;
