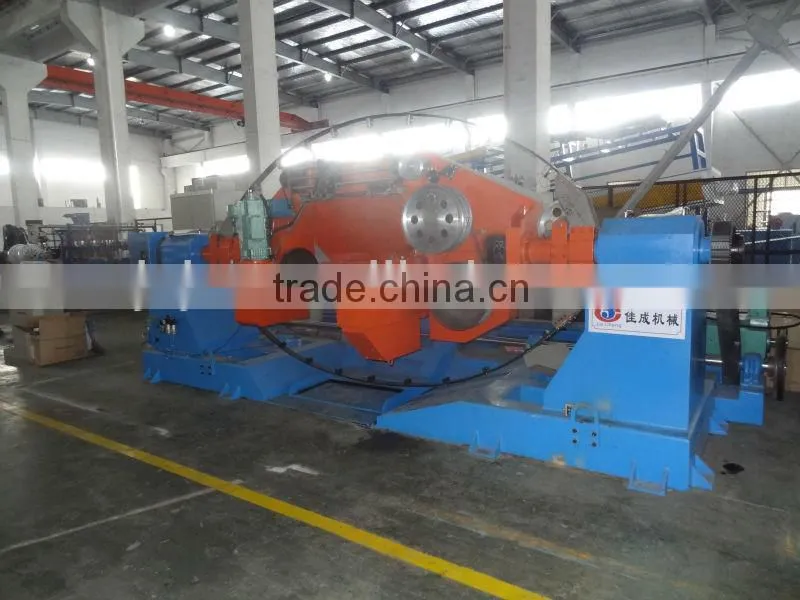

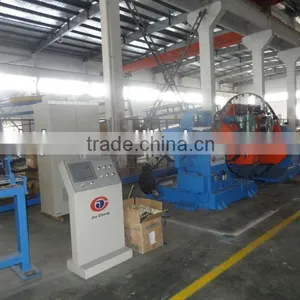

Copper Wire Stranding Machine
• Usage
This equipment specially used to twisting copper and aluminum round compress conductor.

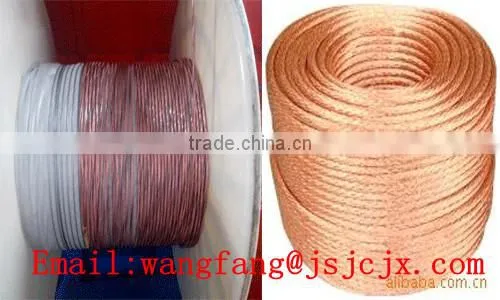

• Finished product
• Technical parameter
Suitable copper wire dia. |
Φ1.0-3.0mm |
Finish stranded copper wire dia.(Max.) |
Φ10mm |
Finish stranded wire dia.(Max.) |
Φ15mm |
Section of strand-twisting |
3.5-70sqmm(6AWG-450MCM) |
(Semirigid 1+6) Section of strand-twisting |
3.5-50sqmm(6-1/0 AWG) |
Section of compaction Cu |
3.5-50sqmm(6AWG-300MCM) |
Section of compaction Al |
3.5-70sqmm(6AWG-301MCM) |
Line speed |
Max. 150m/min |
Strand pitch |
40-350mm |
Cradle flyer R.P.M.(Max.) |
800rpm |
Load weight(Max.) |
3000kg |
Compaction angle(Max.) |
13% |
Traction pulley |
2* Φ600mm |
Stranding Direction |
S&Z |
Main motor(DC/AC/HP) |
55kw DC motor |
Drive of capstan(DC/AC/HP) |
30kw DC motor |
Drive of take-up unit(DC/AC/HP) |
7.5kw DC motor |
Drive of traverser |
0.75kw Inverter motor |
Drive of loading&unloading |
1.5kw Inverter motor |
Power control |
Digital type DC control |
Revise system |
Line speed synchronous auto control |
Spool bobbin size OD(mm) |
OD:Φ1250mm(Max.) |
Spooler size OW(mm) |
950*800*80 |
Control system |
PLC man-machine interface |
Lay stranding pitch |
PLC digitization setting |
Traversing width |
1000mm(Max.) |
Traversing unit |
Wire diameter setting by digital type |
Take-up type |
Pneumatic shaftless type |
Reel loading &unloading |
Liquefaction automatic positioning |
Brake system |
Disc brake |
Bearing lubricative type |
Oiling regularly |
Air pressure |
6kg/sqcm |
Noise level |
80db |
Machine size(L*W*Hmm) |
6030*2280*2280 |
Weight |
12500kg |
• The brand of main components
Japan NSK bearing
Switzerland belt
France Schneider electric
Shenzhen Inovance inverter
• After-sales service
Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes
1) Correct operating mode
2) Correct maintenance way
3) Remove simple problem of our product
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part
2) 6 month for electrical part
• Competitive advantage
(1) We already have a history of more than 10 years. (2) Attending a lot of exhibition at home and abroad.
• Wordwild markets
India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt,Bangladesh and so on.
*Different of cable making equipment
*Wire drawing machine (multiple wire)
*Rod breakdown machine
* Offline annealing and tin-coating machine
* Rigid frame stranding machine
* Annealing machine
* Copper, Aluminum, Aluminum Alloy, Brass, Stainless Steel wire.
Sincerely invite you to visit our company !
Skype:wfjsjcjx
Mobile:0086-13915712932
