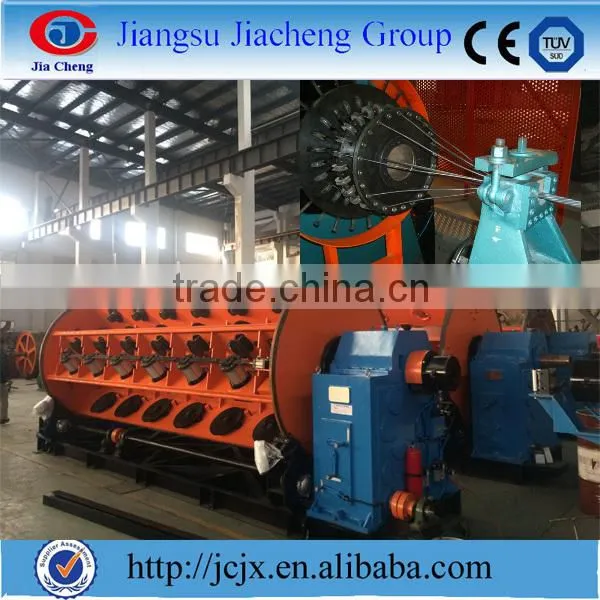

Stranding Machine For Copper/aluminum/aluminum Alloy
• Usage
The machine is suitable for stranding bare aluminum, copper, aluminum alloy,aluminum
cable steel reinforcing wires to produce the following power cables: sector shap- ed cond-
uctors, round compacted, single core prespiralled.
• Main features
(1) Reels are arranged quartering around the cages. The central shaft does not support the weight of reels. The equipment has high rigidity, high-powered, low moment of inertia, high speed.

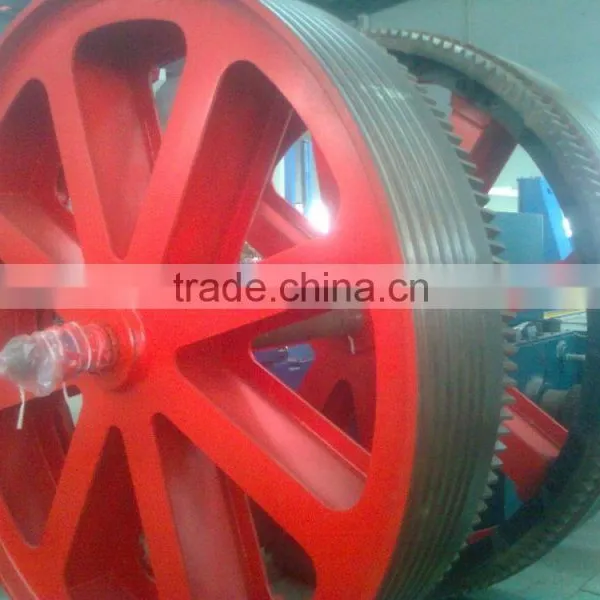

(2)It is driven by 36-stage gear-box. The two wheels of the double wheel capst- an are overhung position supported on shafts. One wheel is straight and the oth- er is inclined position arranged to ensure good care of the material to be pulled out.
(3)Each reel is equipped with an advanced broken wire detector,allowing to stop the machine automatically in case of broken wire. The machine is especial- ly suitable for manufacturing power cable and cross-linked cable.
• Technical parameter
Machine type |
JCJX-KJ500 |
|
Stranding single wire Dia.(mm) |
Copper |
1.5~4.5 |
Al alloy |
1.8~5.0 |
|
Aluminum |
1.8~5.0 |
|
Max. cage rotate speed (rpm) |
6B |
208 |
12B |
187 |
|
18B |
168 |
|
24B |
151 |
|
30B |
127 |
|
Pay-off reel in cage |
PND 500 |
|
Central pay-off reel |
PND500-PND2000 |
|
Take-up reel |
PND1600-PND2500 |
|
Control type |
PLC+touch screen |
|
• After-sales service
Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes
1) Correct operating mode
2) Correct maintenance way
3) Remove simple problem of our product
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part
2) 6 month for electrical part
• Competitive advantage
(1) We already have a history of more than 10 years.
(2) Attending a lot of exhibition at home and abroad.
• Successful case
*Different of cable making equipment
*Wire drawing machine (multiple wire)
*Rod breakdown machine
* Offline annealing and tin-coating machine
* Rigid frame stranding machine
* Annealing machine
* Copper, Aluminum, Aluminum Alloy, Brass, Stainless Steel wire.
Sincerely invite you to visit our company !
