JCJX-KJ630 Rigid frame stranding machine
1. Usage
The machine is suitable for stranding long length and section aluminum, bare copper, aluminum alloy, aluminum cable steel reinforcing wires to produce the following power cables: sector shaped conductors, round compacted,single core prespiralled.
2. Main features

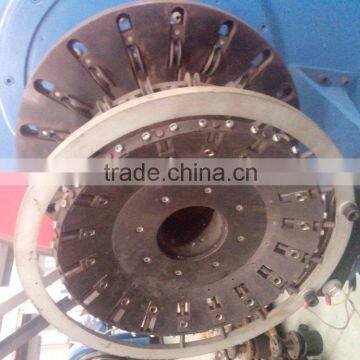

(1) Reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more. The equipment has high rigidity, high-powered, high speed.

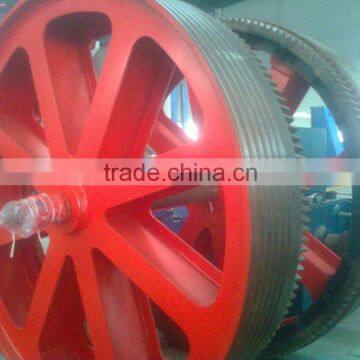

(2)It is driven by 36-stage gear-box.The two wheels of the double wheel capstan are overhung position supported on shafts.One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out.The maximum pulling force reaches 15T.Each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.
3. Technical parameter
Machine type |
JCJX-KJ630 |
|
Stranding single wire Dia.(mm) |
Copper |
1.5~4.5 |
Al alloy |
1.8~5.0 |
|
Aluminum |
1,8~5.0 |
|
Max. cage rotate speed (rpm) |
6B |
192 |
12B |
173 |
|
18B |
124 |
|
24B |
117 |
|
30B |
90 |
|
Pay-off reel in cage |
PND 630 |
|
Central pay-off reel |
PND630-PND2000 |
|
Take-up reel |
PND1600-PND3150 |
|
Control type |
PLC+touch screen |
|
4. Final products
5.The brand of main components
Japan NSK bearing
Switzerland belt
France Schneider electric
Shenzhen Inovance inverter
6. After-sales service
Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes
1) Correct operating mode
2) Correct maintenance way
3) Remove simple problem of our product
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part
2) 6 month for electrical part
7.Competitive advantage
(1) We already have a history of more than 10 years.
(2) Attending a lot of exhibition at home and abroad.
(3) Getting a lot of honor and certificate.

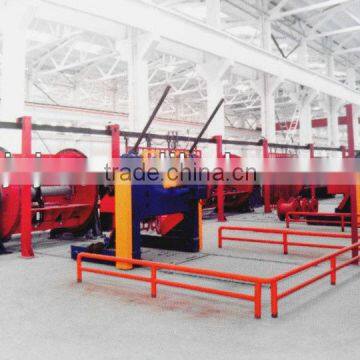

8.Successful case
Welcome to visit Jiangsu Jiacheng !
