Specifications
800P twisting bunching machine1.high speed
2,twisting wire range:0.05-1.2 mm
3,twisting section:0.035-16 sq mm

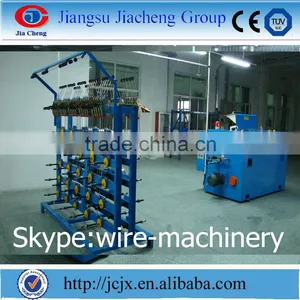

800P twist bunching machine is used to twist and bunch bare copper wire, tinned wire,enameled wire and so on.
Machine's main technical parameter:
1. machine model: JC-300P/500P/500PB/650P/800P
2. Control type: PLC+HMI+Inverter control
3. Twisting section area: 0.035-16 mm²
4. Single inlet wire range:φ0.05~1.2 mm
5. Twisting pitch: 2.0-152.32 mm
6. Twisting direction: S or Z
7. Take-up tension: tension control by magnetic clutch
8. Max.main shaft speed: 1200-3000r/min
9. Traversing type: Transverse and distance can be bearing transverse
10. Bearing lubrication: Thin oil lubrication,circulation cooling
11. Bobbin loading&unloading type: Hydraulic type
12. Max.bobbin dia.: ø800
13. Auto stop unit: While reach setting length ,any wire break,or other error auto stops
14. Brake: Magnetic brake
15. Motor power: 4-11 kw
machine's detailed:
