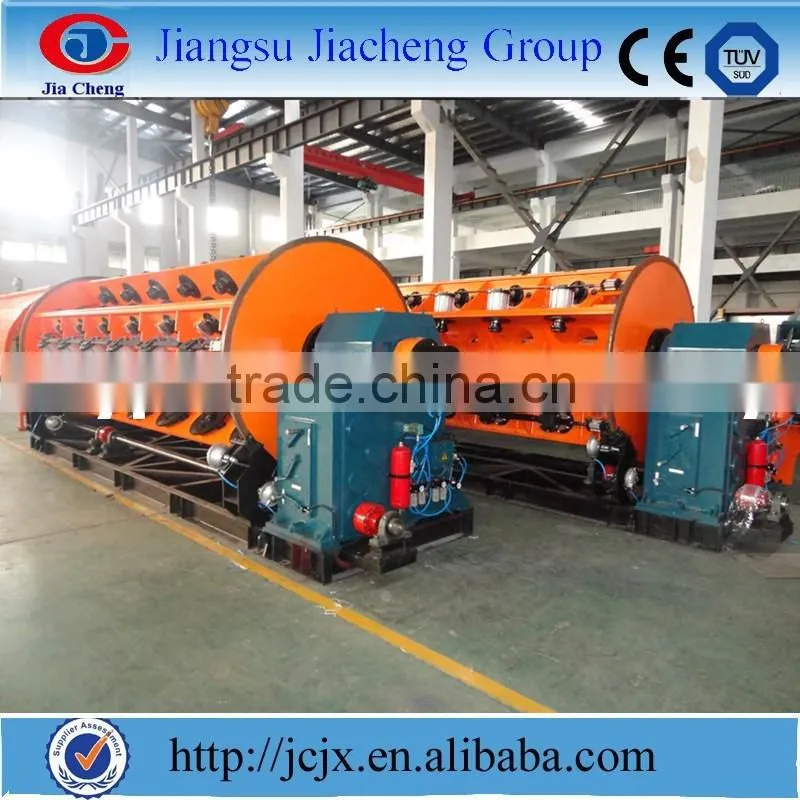

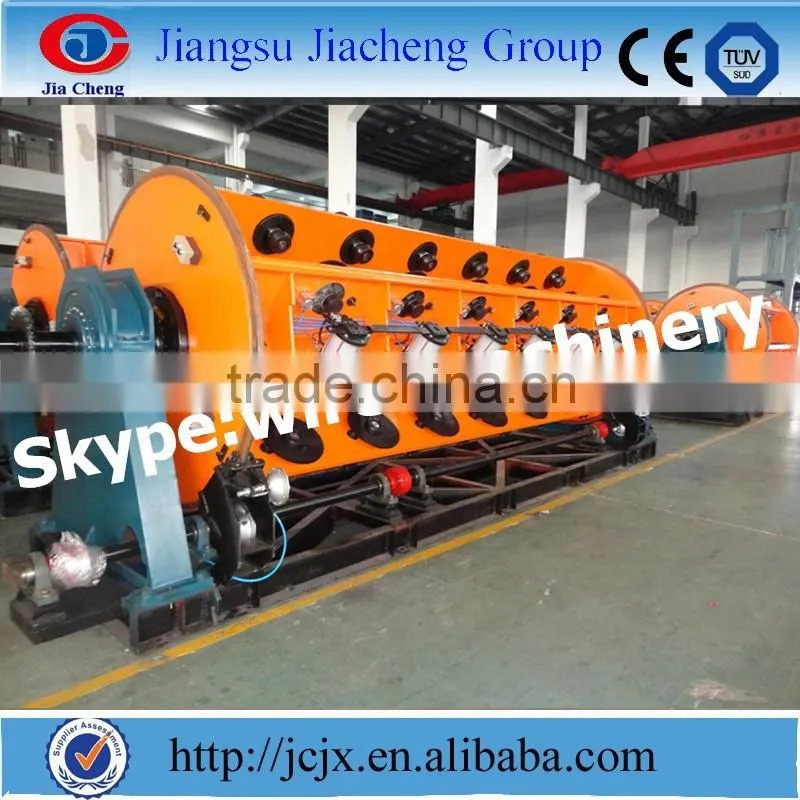

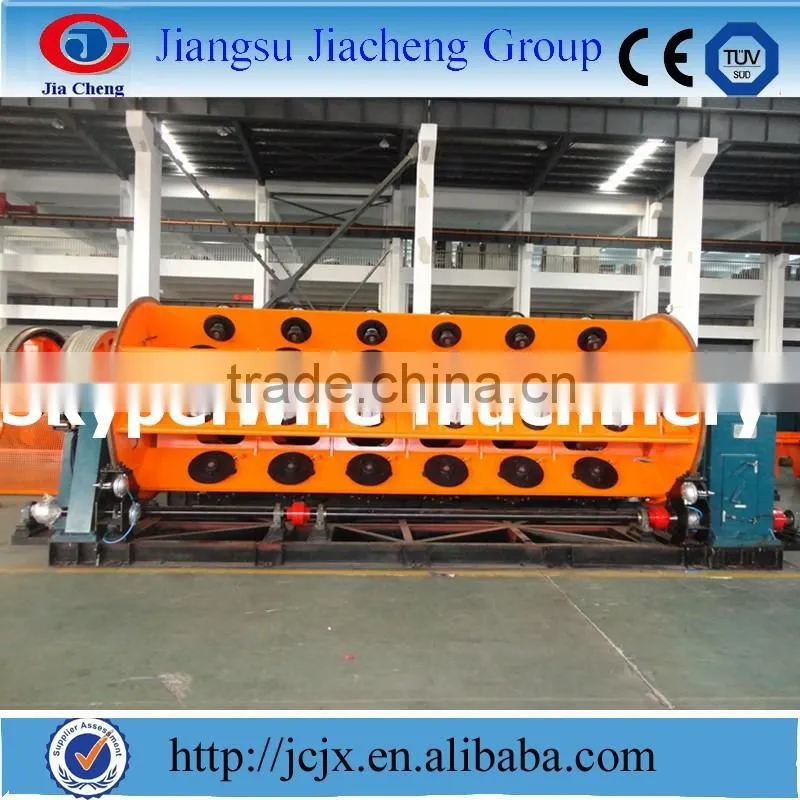

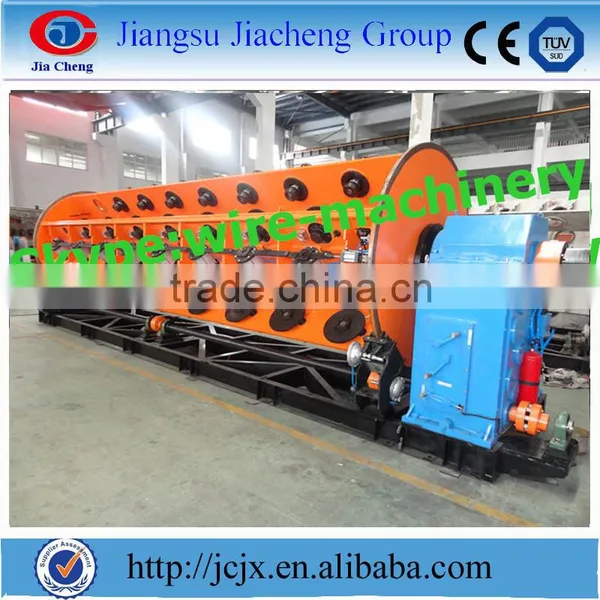

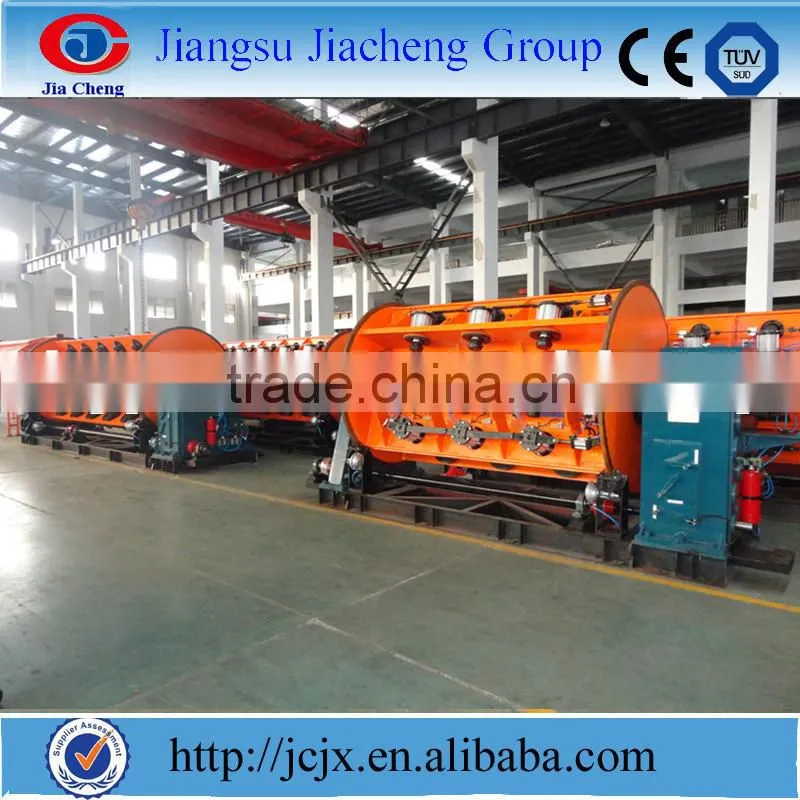

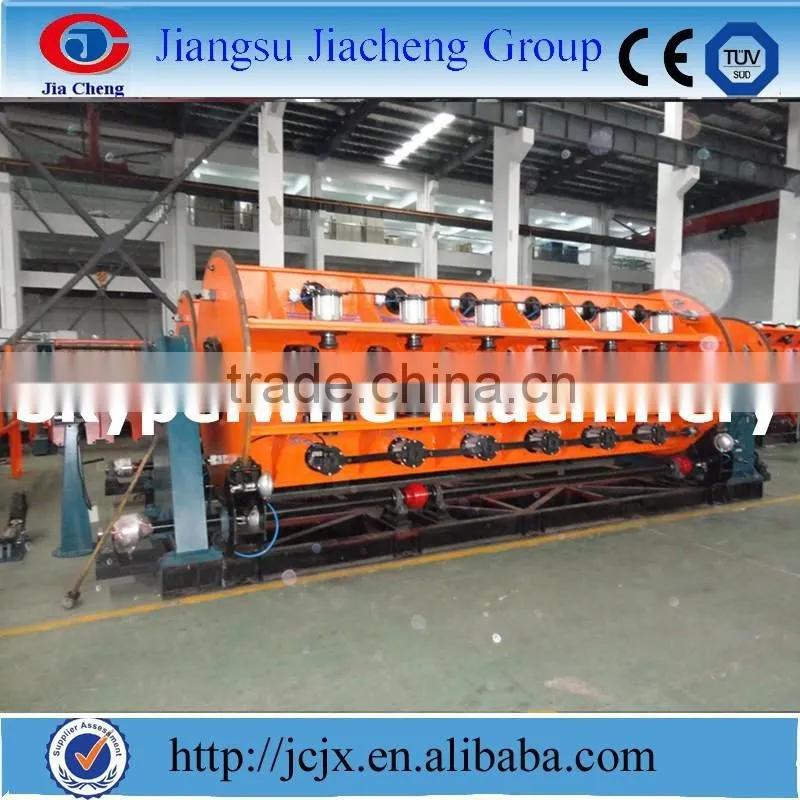

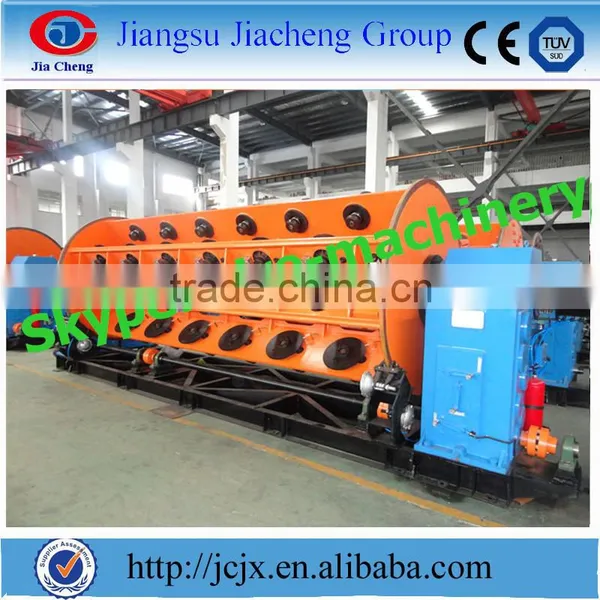

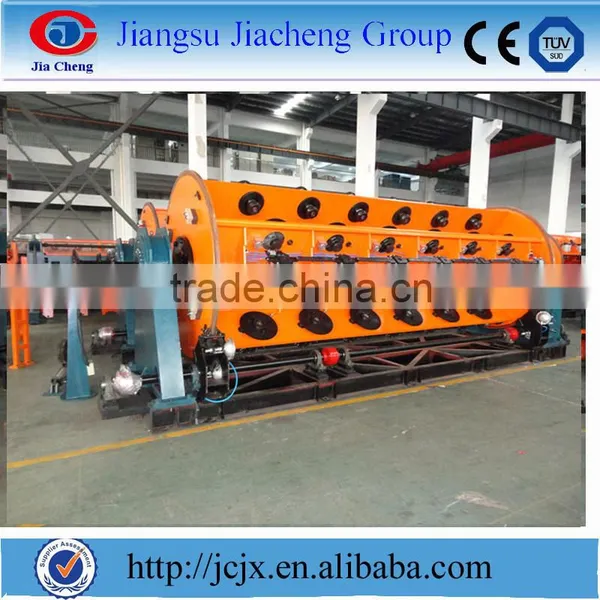

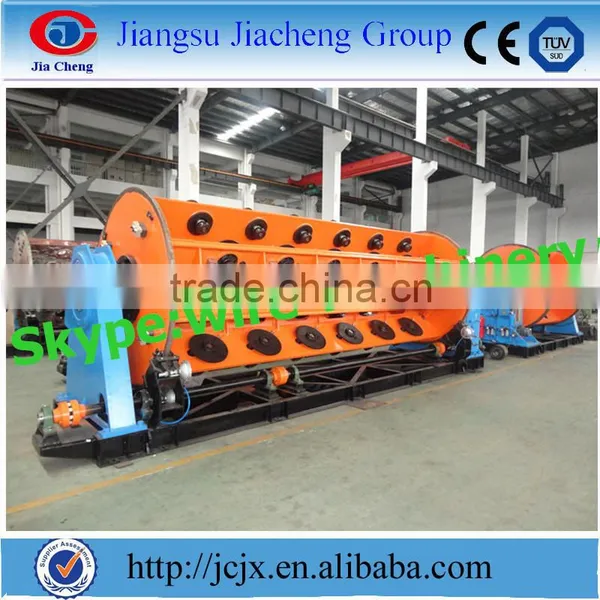

KJ-630 rigid frame stranding machine with price is suitable for stranding bare aluminum, copper,aluminum alloy,aluminum cable steel reinforcing wires to produce the following power cables: sector shaped conductors,round compacted,single core prespiralled.
Main features:
(1) Reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more. The equipment has high rigidity, high-powered, high speed.
(2)It is driven by 36-stage gear-box.The two wheels of the double wheel capstan are overhung position supported on shafts.One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out.The maximum pulling force reaches 15T.Each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.
3. Technical parameter
| Machine | JCJX-KJ630 copper/al/alloy wire rigid frame stranding machine | |
| Standing single wire Dia.(mm) | Copper | Φ1.50-Φ4.50 |
| Al alloy | Φ1.80-Φ5.00 | |
| Aluminum | Φ1.80-Φ5.00 | |
| Max.cage rotate speed(rmp) | 6B | 192 |
| 12B | 173 | |
| 18B | 124 | |
| 24B | 117 | |
| 30B | 90 | |
| Pay-off reel in cage | PND630 | |
| Central pay-off reel | PND630-PND2000 | |
| Take-up reel | PND630-PND2500 | |
| Control type | PLC+touch screen | |
4. The latest technological improvement
The old strand frame which fixed by screw, not so strong, durable and safe
The new strand frame which fixed by ironed welding and safe shield inside. It’s strong, durable and safe! What’s more, the price remain unchanged!
5.Wordwild markets
India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt,Bangladesh Burma and so on.
