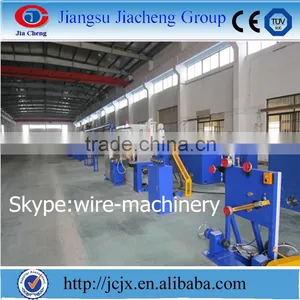

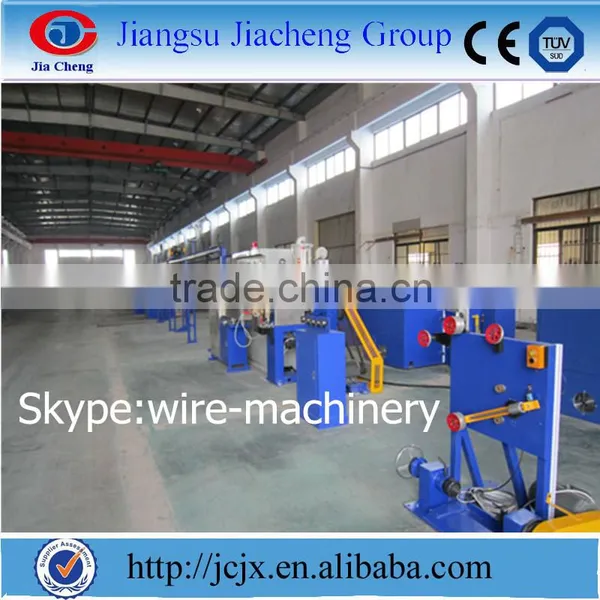

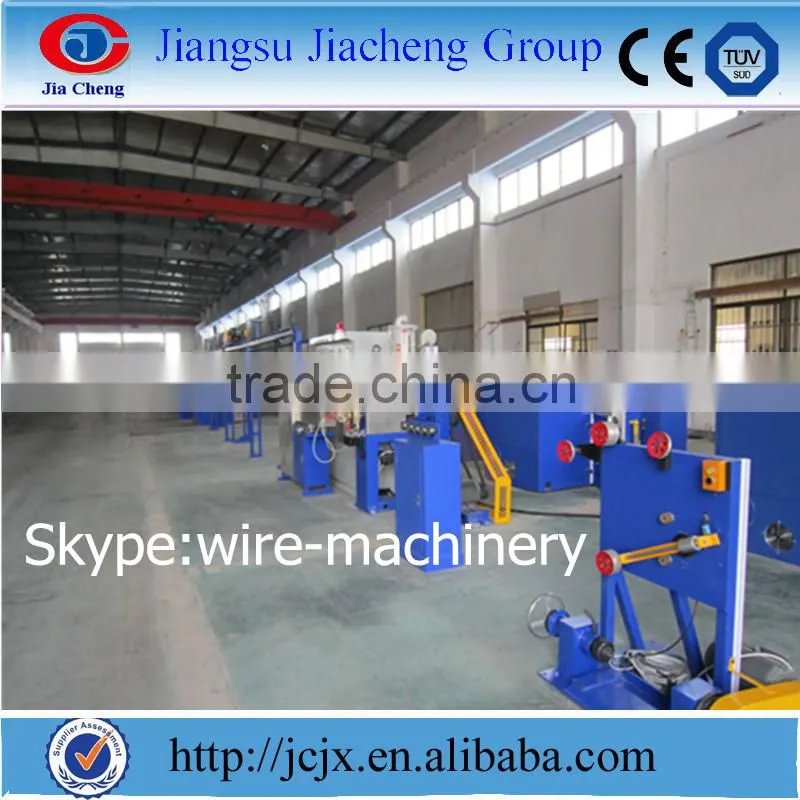

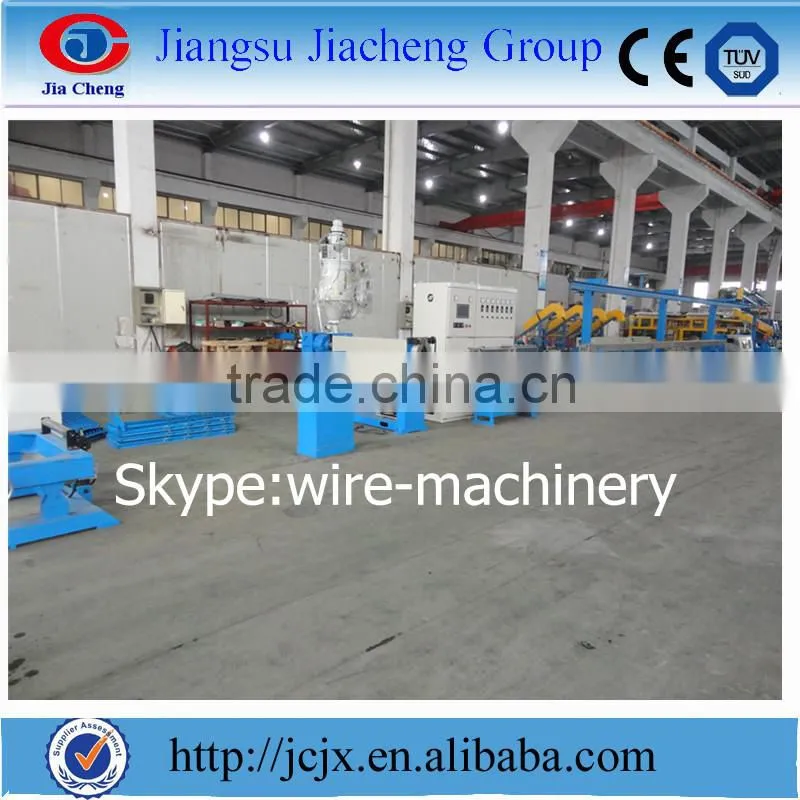

silicon wire making machine
- 15 Set / Sets per Month
- ShangHai Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Application: | Wire | Plastic Processed: | Other, Silicon |
Screw Design: | Single-screw | Automatic Grade: | high | Place of Origin: | Jiangsu, China |
Brand Name: | Jiacheng | Model Number: | JCJX-45 silicon wire extruder | Voltage: | 380V 50/60HZ |
Power(W): | 38200 | Dimension(L*W*H): | 33m 3m 2m | Weight: | 8000Kg |
Certification: | CE,ISO9001:2008,BV | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
silicon wire making machine1,Finished wire Dia:0.8-5.0mm
2,Certificte:CE,ISO9001,BV
3,Insulation:PVC,LDPE,XLPE,LSHF,NYLON,AB
silicon wire making machine is mainly used to manufacture all kinds of silicon high temperature wire and cable and cannula
2.Characteristic
1. PLC+touching screen,whole control,adjusting and monitoring production process parameter.
2. Special silicon screw,screw barrel,crosshead and dies to prevent the in-house vulcanization structure.
3. Special silicon auto machine heat set and water cooling system.
4. Precision testing feedback system to ensure accurate wire diameter so as to reduce the cost
3. Consisting Components:
1)pay-off machine , straightening table, hopper drying , auto feeder, main extruder, electrical cabinet, the first parts water trough, laser caliper gauge (optional), printer (optional),fixed water trough, haul-off machine , accumulator ,meter counter, spark tester(optional), 800-1000mm dual bobbin take-up.
4. Technical parameter
Parameter machine model | Φ45 | Φ70 | Φ90 |
Main machine power(kw) | 11 | 22 | 45 |
Extrusion capacity(kg/h) | 30 | 80 | 135 |
Dia. Of screw | Φ45 | Φ70 | Φ90 |
L/D of screw | 12:1 | 14:1 | 14:1 |
Pay-off bobbin(mm) | Φ300-400 | Φ400-630 | Φ400-630 |
Pay-off wire diameter(mm) | 0.2-3.0 | 1.5-6.0 | 2.0-10 |
Finished outside dia.(mm) | 0.8-5.0 | 1.8-8.0 | 3.0-12 |
Vucanize length(m) | 12 | 16 | 24 |
Heater power(kw) | 3 section 36kw | 4 section 48kw | 6 section 72kw |
Traction motor | 2.2 | 4 | 7.5 |
Production speed(m/min) | 10-200 | 10-200 | 4-40 |
Take-up bobbin dia.(mm) | 400-500 | 400-630 | 1250-1600 |
5. The brand of main components
Motor: fomous brand ,WANNAN , SIEMENS
Inveter: Inovance from shenzhen , YASKAWA Japan
Electric equipment: Schneider
Bearing : NSK from Japan
Leather-belt: toothed synchronous transmission leather belt use JIEBAO (German),
others use SANWEI (Taiwan)
Magnetic powder clutch: MISTUBISHI
6. After-sales service:
Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes
7.Wordwild markets India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt,Bangladesh Burma and so on.
8.About us:
Contact Us
- Jiangsu Jiacheng Technology Co., Ltd.
- Contact nameQian Guoping
- Phone0086-512-58353383
- AddressJuqiao Development Zone, Tangqiao Town,Zhangjiagang City,Jiangsu Province. China Suzhou,Jiangsu
