JCJX3000A/5000A/8000A Copper Coating Machine, CCA Production Line MachineUS$ 50,000 - 80,000MOQ: 1 Set
JCJX-3000A/5000A/8000A copper coating machine (production line machine)
1.Main usage:
The Copper wire can be coated a layer of steel outside
Main feature:
1.Double floor water tank, save space.
2.Six rollers, the whole rack made of stainless steel.
3.Main motor by frequency control.
4.Take-up part controlled by torque motor, stable tension.
Technical parameter:
Machine model |
JCJX-3000A |
JCJX-5000A |
JCJX-8000A |
Control system |
Button type |
||
Main power control |
Controlled by electric motor |
||
Take-up power control |
Controlled by torque motor |
||
Wire diameter |
1.01.4mm |
1.201.80mm |
1.22.2mm |
Main motor |
2.2KW |
3.3/ 4KW |
4KW/ 5.5KW |
Take-up motor |
YLJ112-12 |
YLJ112-12/ |
YLJ132-16 |
Spool reel size |
300mm/ 400mm or according to customers requirement |
||
Take-up type |
Shaftless take-up M/C |
||
Traversing type |
Plam shaft type |
||
Transmission type |
Tri-angle belt, chain |
||
Line speed |
10m/min 120m/min |
||
Rectifier |
3000A |
5000A |
8000A |
Dimension(mm) |
15000*1200*1400 |
18000*1600*1600 |
20000*1800*1600 |
Weight |
3500KG |
5000KG |
6000KG |
Company image:
Our company’s advantage:
1).JIACHENG have some world famous parts suppliers. Have high price performance ratio.
2).special lubrication system for the gears and bearing.
3).second section annealing system, outside electrically neutral (no current flow to other unit)
4).body and other key components and parts are produced by our own factory ,quality is reliable.
5).our company’s developing process in more than 10 years.
Customer production site:
Enterprise honour:

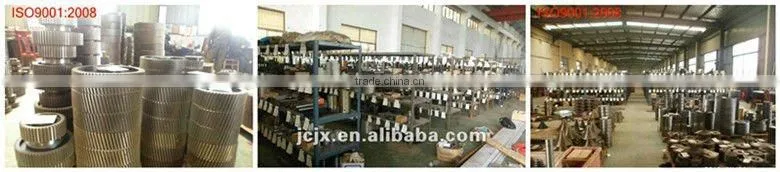

Workshop:
Package:
After-sell service:
Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Main Product:
Cable making equipment
* Wire drawing machine (multiple wire)
* Rod breakdown machine
* Tin-coating machine
* Rigid frame stranding machine
* Annealing machine
* Copper, Aluminum, Aluminum Alloy, Brass, Wire drawing machine
* Wire and cable production line
* Bunching machine
* CCA wire machine
Payment terms and contact ways
Escrow, T/T, L/C at sight
Contact: Lily Peng
Mobile: 0086-13506220296
Skype:lili19900510
