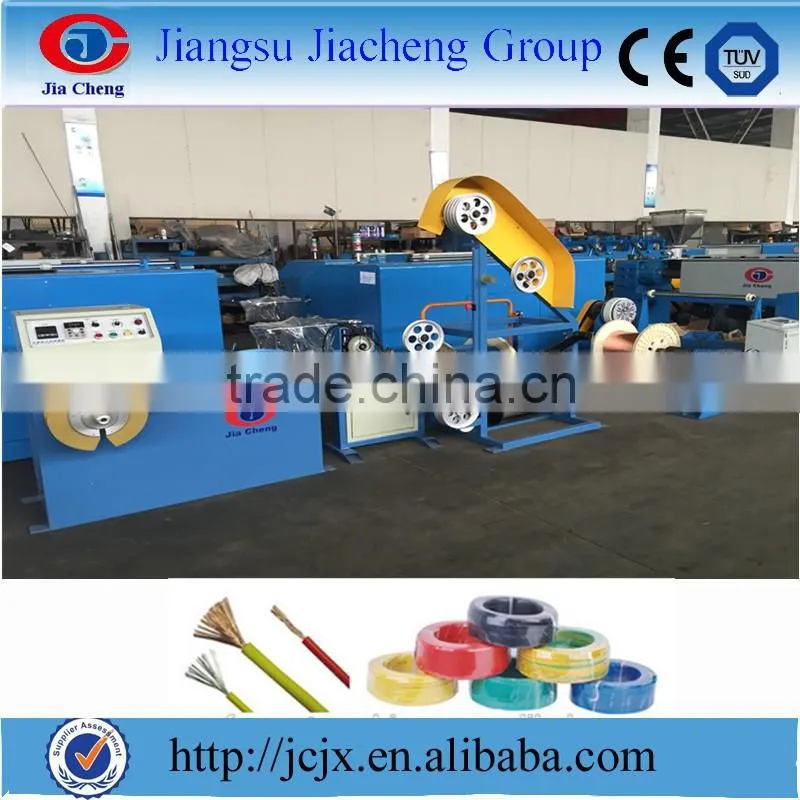

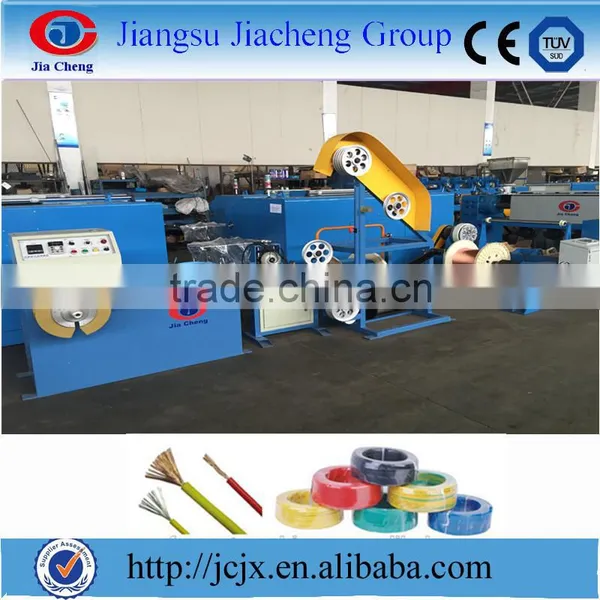

Wire and Cable Coiling and Wrapping Machine

Name: Wire and Cable Coiling and Wrapping Machine
Brand: JCJX
SKU: 133580487

US$ 2 - 2 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

JCJX

Model Number:

JCJX-wire and cable Coiling and wrapping Machine

Jiangsu Jiacheng Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JCJX

Model Number JCJX-wire and cable Coiling and wrapping Machine

Usage Winding

We are the professional manufacturer have more than 20 years of experience in making all kinds of wire and cable machinery,realize the wire from drawing to extruding.
we are the factory not the trade company,Machine’s body and other key components and parts are produced by our own factory, quality is reliable.,and we can control .the price;.the quality and .the delivery time;
Drawing wire as you want	Cu,Al,Al-alloy,S.S,etc.
We have	Single /multi wire drawing machine(2 wires, 4 wires,16 wires, 20 wires)
After drawing	We have annealing,stranding,extruding machine
our company address	near to shanghai: Juqiao Economic Development Zone, Tangqiao Town,Zhangjiagang City, Jiangsu Province, China.
to see more products	https://img13.fr-trading.com

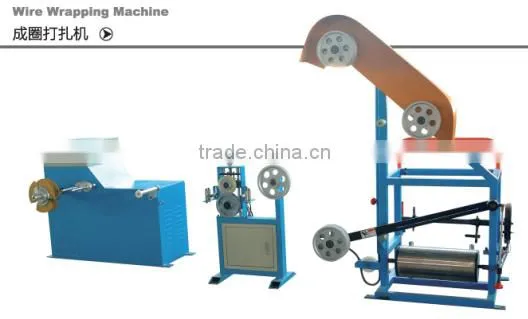

wire wrapping machine

1. function

high speed wrapping and packing machine for wire & cable coils with PVC, PE film, PP weave tape or paper

2.features

1. high speed winding wrapping with PVC, PE film, PP weave tape or paper

2. touch screen + human-machin interface make it easy to operate

3. intellect arm carry wire coils, which is driven by DC motor, carrying and turn coil smoothly

4. 99 types of coil wrapping data in the PLC memory can be input into the machine.

3. specification:(mm)

Model	Φ630mm	Φ1250mm	Φ1250-Φ1600mm
Applicable wire range	0.5-6mm2	10-70mm2	10-240mm2
Traversing tension	Automatically
Main motor speed	0-600 r/min	0-300 r/min	0-300 r/min
Loading bobbin type	Lever-type	Electric type	Electric type
Pay-off bibbin model	Φ400-630mm	Φ800-1250mm	Φ1000-1600mm
Tapping model	Outside Dia .≤320mm Inner Dia. 120mm Width30-100mm	Outside Dia.≤600mm Inner Dia. 200300mm Width60-150mm 150-200mm	50-250
Power	2.2kw	3kw	4kw
Meter counter structure	Type of wheel pressure	Double wheel type with air pressure	Double wheel type with air pressure

Induction type/ Measurement accuracy	Rotary encoder/0.5%	Rotary encoder/0.5%	Rotary encoder/0.5%
