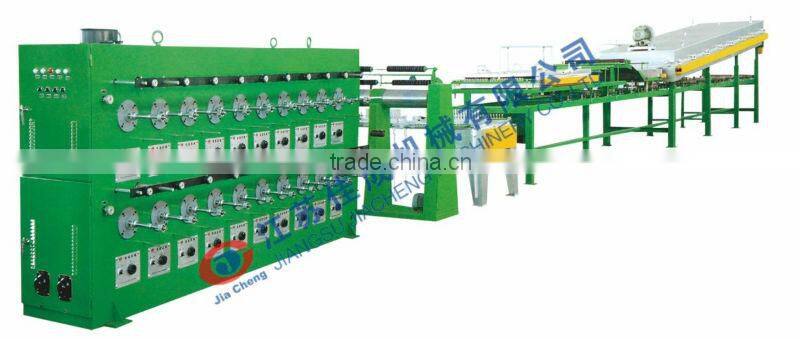

On-line Annealing Tin-coating Machine
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiacheng | |
| Model Number | JCJX-40H | Usage | Drawing |
Product Description
Annealing and Tinning machine
Technical parameter:
Machine type | JCJX-40H | JCJX-40H | JCJX-40H |
1.Usage | Used for producing annealing copper wire and tin-plating the wire | ||
2.Number of wire | 24 | 32 | 40 |
3.Finished wire diameter | φ0.10-φ0.32 | φ0.10-φ0.45 | φ0.25-φ0.8 |
4.Pay-off method | Hairbrush or tension wire placing | ||
5.Tinning speed | 300 | 300 | 300 |
6.Tin-plating type | Dual-furnace hot plating, mould tin-scraping. | ||
7.Dimension of pay-off wheel | φ310 | φ310 | φ310 |
8.Receiving wire method | Single-dish torque wire receiving | ||
9.Annealing method | Water seal & continuous annealing by heater | ||
10. Spooler dimension | PT5-PT25 | PT5-PT25 | PT10-PT25 |
11.Thermal power | 60kw | 65kw | 70kw |
12. Power | 12kw | 18kw | 20kw |
13. Main machine power | 72kw | 83kw | 90kw |
14.Machine dimension(mm) | 195000×1600×2200 | 21000×1600×2200 | 23000×1600×2200 |
15.Machine weight(kg) | 3500 | 3500 | 4300 |
our shanghai exhibition:

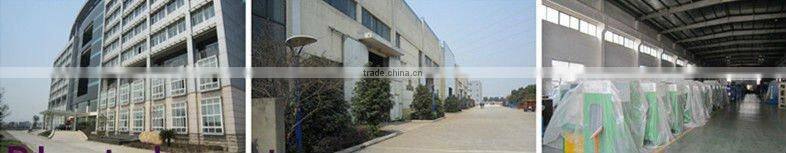

Company image: (the occupied area of our company is 10,000square meter) welcome to our company!
Our company’s advantage:
1).JIACHENG have some world famous parts suppliers. Have high price performance ratio.
2).special lubrication system for the gears and bearing.
3).second section annealing system, outside electrically neutral (no current flow to other unit)
4).body and other key components and parts are produced by our own factory ,quality is reliable.
5).our company’s developing process in more than 10 years.

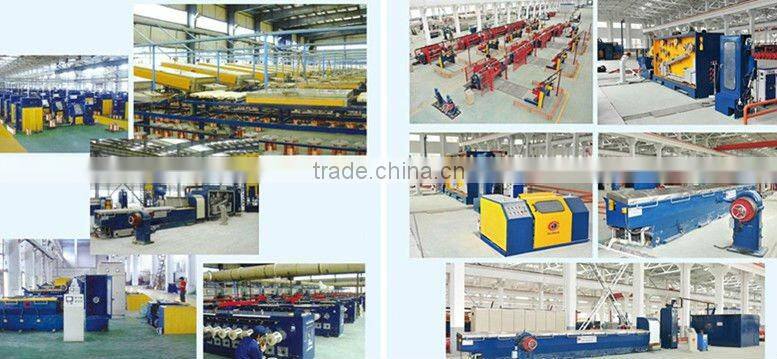

Customer production site:
Enterprise honour:

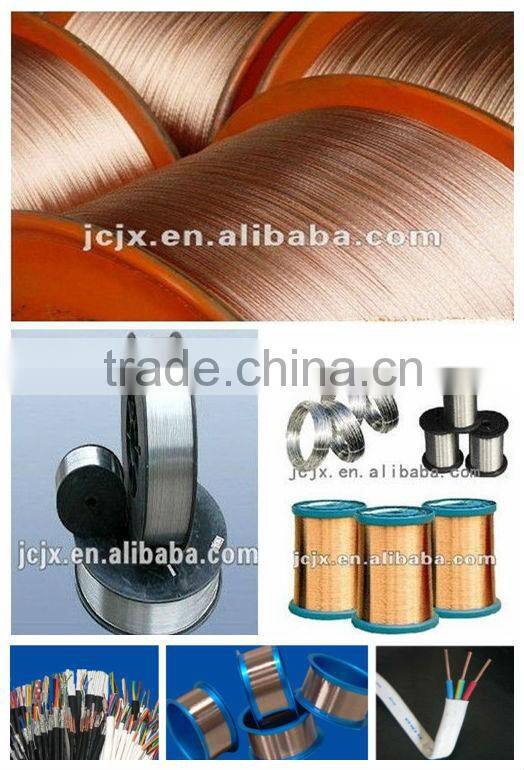

Final products:
After-sell service:
Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need,
we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
our company for our machine product, Since the shipment date, our company free after sale
maintenance service guarantee period is:
A: 1 year for mechanical part,
B: 6 month for electrical part.
