JIACHENG Annealing and Tinning Machine for Copper Wire
- shanghai
- T/T Money Gram PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JC | |
| Model Number | JCJX-40H/7.5 | Usage | Other, Annealing and Tinning |
Product Description
Specifications
40 Heads Annealing and Tinning Machine1.Uniform heating .
2.Dual tinning tank design .
3.Save spave
4.CE , ISO certificated
The annealing and tinning machine is used to anneal the drawed copper wire and tin-plate the annealed wire to improve the weldability ,and barrier interaction between the insulation and copper wire .
Main feature :
1.Add one room inside the annealer ,can make the temperature impartial distribution .
2.Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time .
3.Spooler arranged in double layer can save space.
Technical Parameters :
Machine type | JCJX-40H/7.5 |
NO. of wire | 40 |
Wire Dia . (mm) | φ0.1~φ0.7 |
Pay-off stand | Brush or overhead |
Max. speed (m/min) | 300 |
Annealing type | Radiation heating |
Tinning type | Hot coating |
Pay-off Bobbin Size (mm) | φ300 |
Take-upe type | Single spooler drive by torque motor |
Traverse type | Motor+inverter control |
Take-up bobbin size | 5”~10” |
Total power (kw) | 75 |

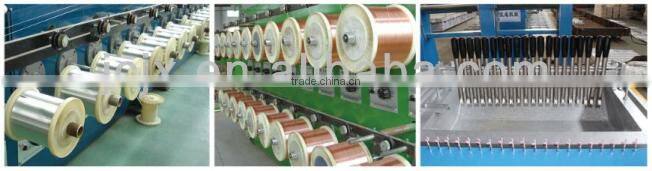

Pictures of this machine :
Double layer take-up machine Tinning tank
After sale service :
Training sevrvice:
In order to guarantee the customers fully to operate the machine, we can help customer training, including correcting mode, correcting maintenance way and removing simple problem of our products .
Maintenanc sevrvice:
1 year for mechanical part; 6 month for electrical part .
Certificates of our factory and our machine :
Sincerely invite you to visit our company !
