Specifications
Laser Cutting Steel Tube1.IPG fiber laser 300w,500w,2000w
2.cutting steel pipe&sheet
3.double drive ball screw
4.CE,FDA

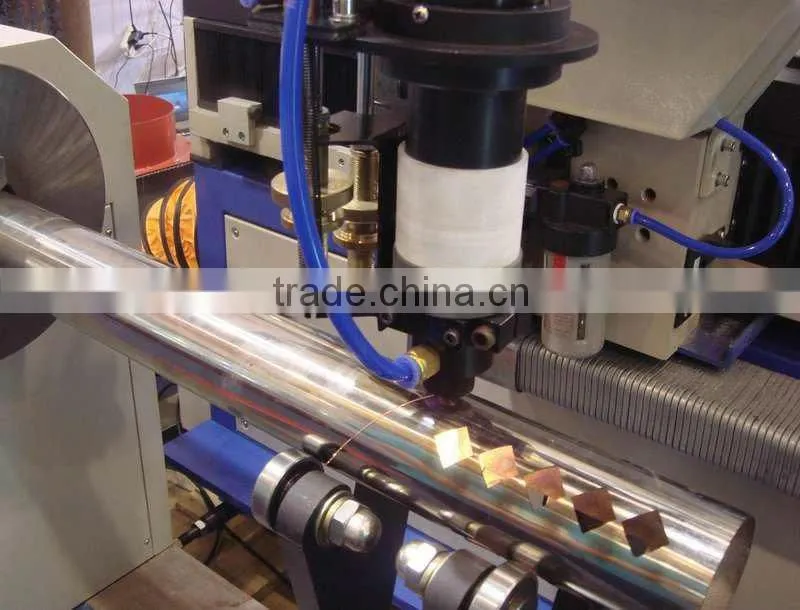

Laser Cutting Steel Tube with Rotary Device

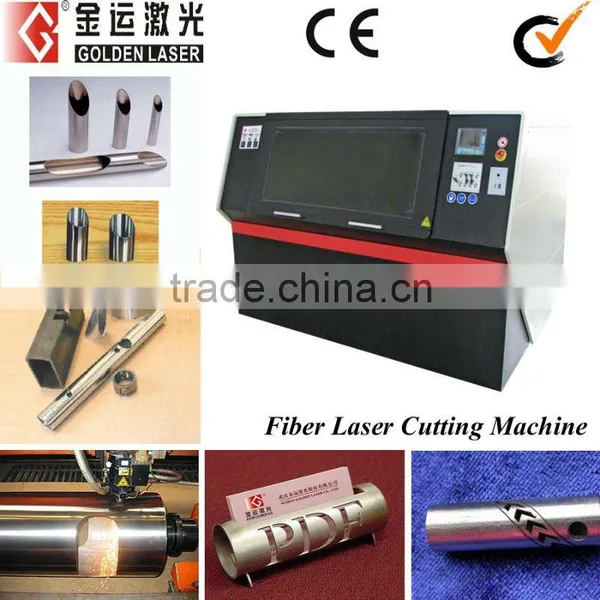

Fiber Laser Cutting Machine
Applicable materials:
Mainly used for carbon steel, mild steel, stainless steel, iron, alloy steel, aluminum, titanium alloy, copper, brass, galvanized sheet and metal sheet, metal tube and pipe fast cutting, etc.
Applications:
Fiber laser cutting has been applied in medical microelectronics, glasses frames, subway spare parts, auto parts, machine parts, handicraft, hardware tools, advertising signage, sheet metal processing, metals ironware components and parts, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal sign letters, elevator panel cutting, etc.
Machine Features:
300W power. (optional with 500W, 1KW, 2KW)
Long lasting life time (100,000 hours) of the laser module. (IPG laser source)
Specialist for cutting thin sheet in precision
Small heat affected zones create narrow cutting “kerf”, have the ability to cut most complex design and create sharp corner.
Dynamic focus system avoid material uneven
Nesting software provides efficiency and material-saving
Minimized burrs and roughness
Lowest maintenance cost & energy-consumption
Easy operation.
Technical Parameter:
Laser medium: |
IPG fiber laser |
Cutting area: |
1300mmX900mm |
Max. cutting speed: |
12m/min |
Cooling way: |
air cooling |
Laser wavelength: |
1070nm |
Laser output power: |
300W (optional with 500W, 1KW, 2KW) |
Laser input power: |
1KW |
Minimum line width: |
0.1mm |
Cutting depth: |
0.2-3mm (fiber laser 300watts) Fiber Laser 2000W can cut up to 20mm thick metal |
Control system: |
Offline control, 5 inches display |
Motion system: |
Double drive ball screw control system |
Cutting head |
Auto following focus |
Positioning accuracy |
±0.01mm |
Power supply: |
AC380V ± 5% 50 / 60Hz |
Power consumption |
5Kw |
Environment temperature: |
5-35degree |
Continuous working time: |
24 hours |
Optional |
Rotary device for pipes and tubes cutting Working area 1500*3000mm, 600*400mm |
Advantage of Fiber laser cutting machine:
Fiber Laser cutting has become the largest application for lasers in metal processing. Fiber laser cutting offers an advanced alternative to conventional cutting processes.
Fiber laser technology allows for smaller beam diameter therefore decreasing kerf width, decreasing heat penetration and increasing throughput.
This fiber laser cutting system adopts double drive ball screw to keep high precision cutting result and high speed cutting. This system can cut the most complex design and achieve the best quality.

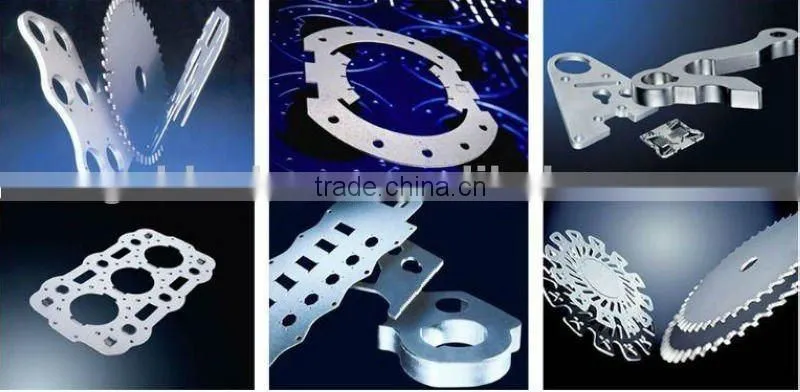

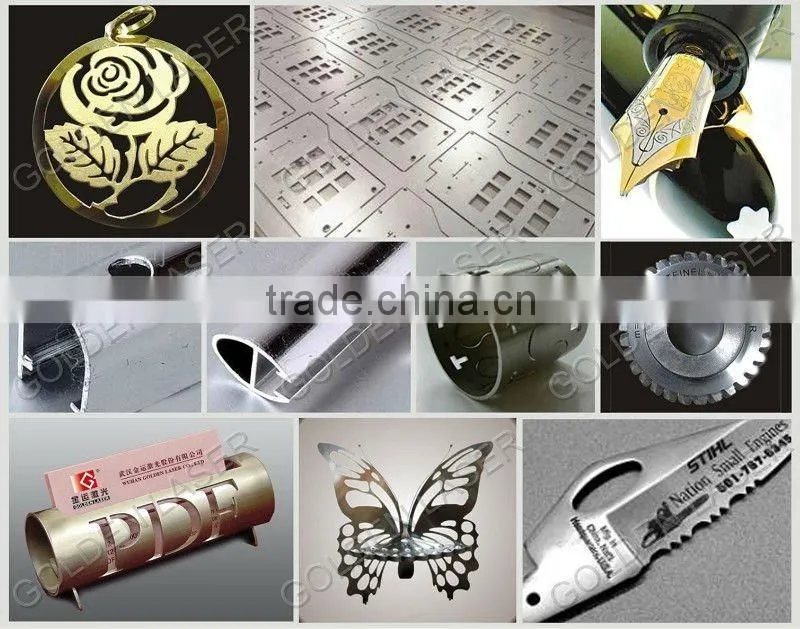

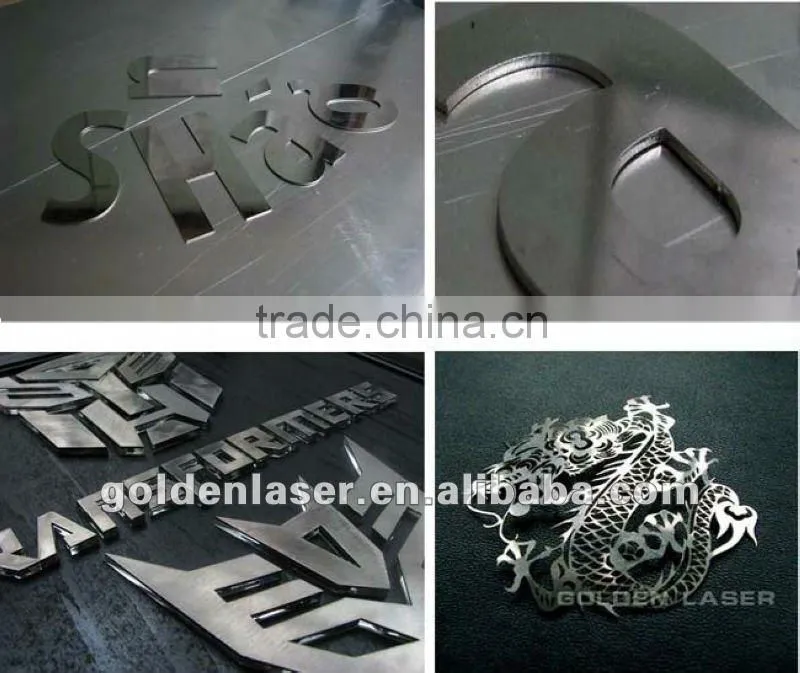

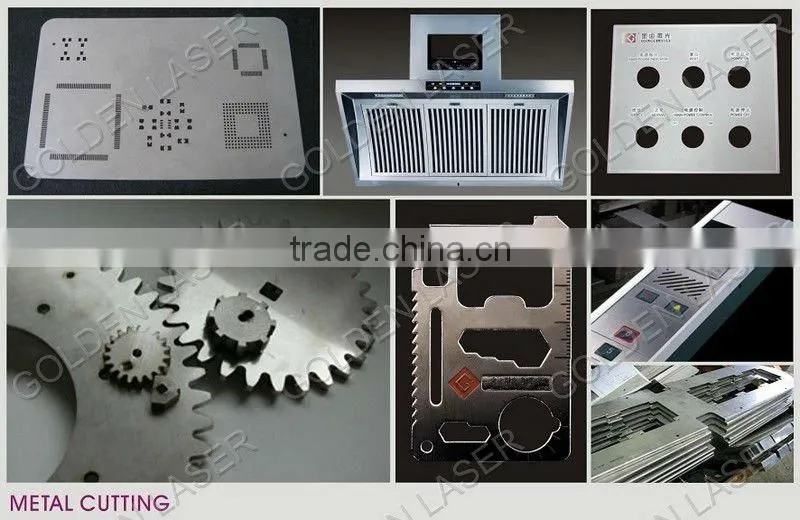

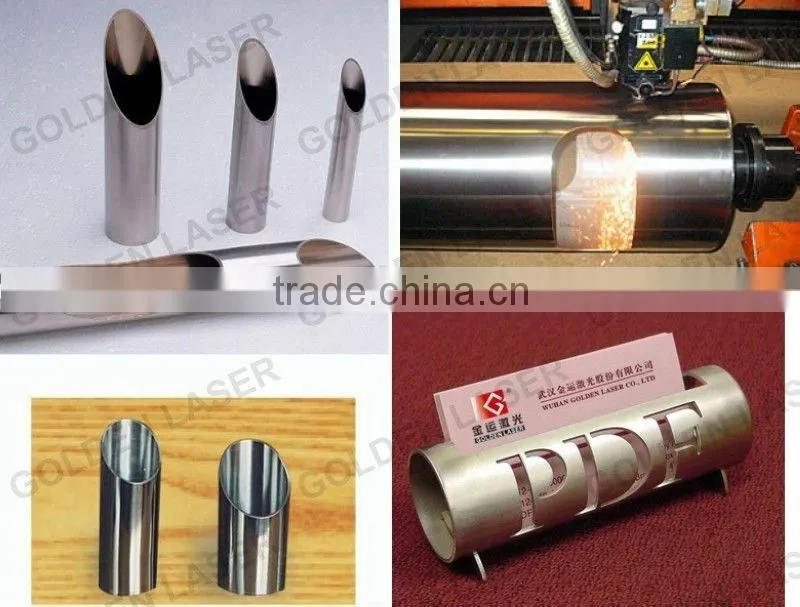

Samples Gallery:

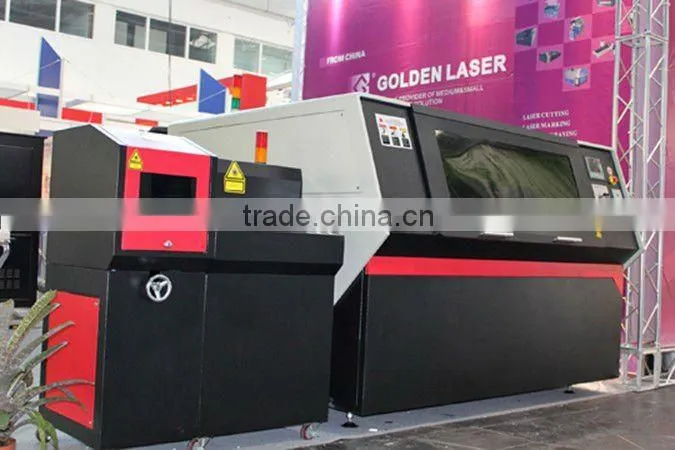

Golden Laser Exhibitions:
