Specifications
fiber laser 2kw1.laser power 300w 500w 1000w 2000w
2.faster speed
3.higher quality cuts
ing area 1500X3000mm
Fiber Laser 2KW for Cutting Stainless Steel Metal Sheet
<< Fiber Laser Cutting Advantage:
(1) The fiber laser series are Golden Laser’s new line of metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel, aluminum, brass, etc.
(2)The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.
(4) Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

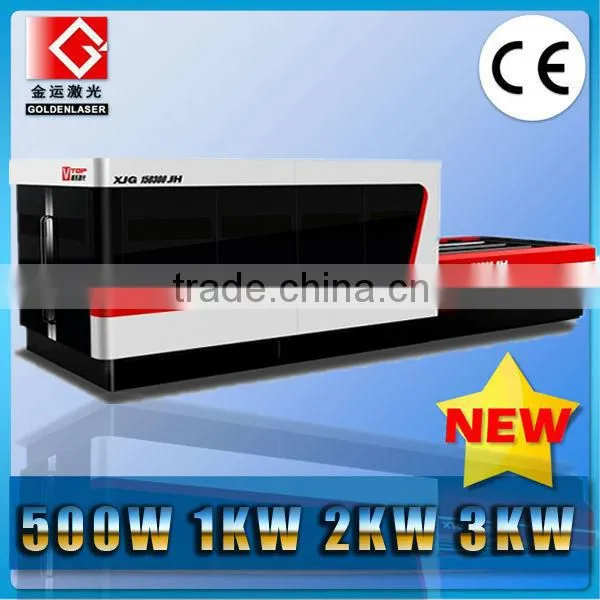

<< GoldenLaser hot sale fiber model recommended: XJG-150300JH fiber laser cutting machine
XJG-150300JH Fiber Laser Cutting Machine Main Technical Data: | |
Laser Type: |
IPG Fiber laser / Coherent fiber laser |
Laser Power: |
500W / 300W / 1000W / 2000W |
Working area: |
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm |
Working Table Structure: |
Fixed / Pallet Working Table |
Control System: |
PMAC full-closed loop servo control |
Driving Mode: |
Double ball screw driving / Double gear rack driving |
Idle/Processing Speed: |
48m/min / 24m/min |
Positioning Accuracy: |
0.05mm |
Cooling System: |
High precision constant temperature water chiller |
Protection System: |
Enclosure protection |
Laser Head: |
Golden Laser / Precitec / Laser mech |
Power Supply: |
AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
Total Power: |
7.5KW / 6KW~20KW |
Support Format: |
PLT, DXF, BMP, AI, DST, DWG, etc. |
Floor Space: |
5.4mX4.6m (shuttle working table) |
Other Standard Collocation: |
Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc. |
Related Model: | |
XJG-6040 DT |
Fiber Laser Cutting Machine 600X400mm |
XJG-13090 DT |
Fiber Laser Cutting Machine 1300X900mm |
XJG-150300 DT |
Fiber Laser Cutting Machine 1500X3000mm |
GJMSJG-Series |
YAG Laser Cutting Machine 600X400mm,1300X900mm,1300X2500mm,1500X3000mm |

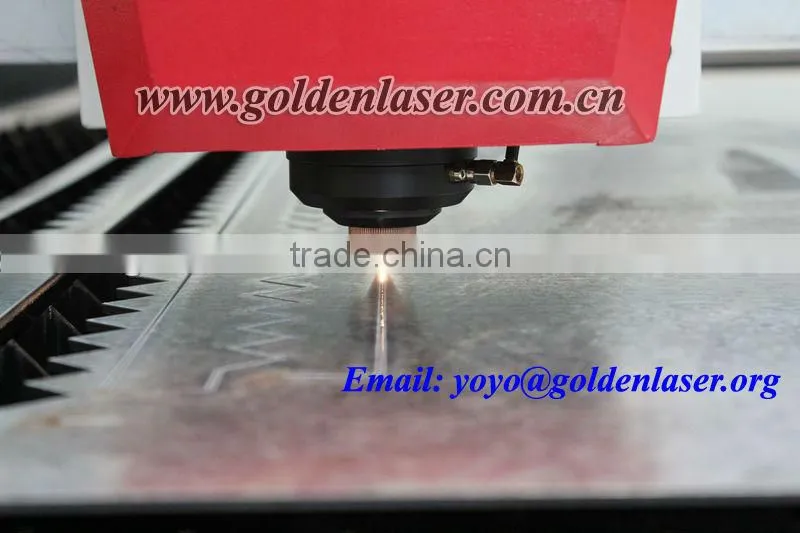

Fiber Laser Cutting Live-Action:
Fiber Laser Cutting Machine Features:
♦The double ball screw closed-loop system and imported open-type CNC system enable high processing accuracy and high working efficiency during high speed cutting.
♦Standard collocation of 1000W fiber laser generator and optional 300W-2000W fiber laser generator ensures low operation and maintenance cost.
♦Enclosure design meets CE standard, reliable and safe processing. Shuttle table/pallet working tables convenient for material uploading and unloading and further promotes working efficiency.
♦Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
♦Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
♦Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.
♦Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting.
<< Fiber Laser Cutting Applicable Materials and Industry:
It is applicable to stainless steel, carbon steel, alloy, galvanized steel, titanium sheet and other metal sheets and pipes (different power due to different materials)
It is applicable to sheet metals, kitchenware, hardware, advertising, decoration, gifts, lighting lamps, medical instruments and other field.
<< Advantages Comparison between Different Types of Laser Generators of GOLDEN LASER Metal Laser Cutting Machines:
In the field of laser applications for metal cutting, besides providing various working sizes of laser cutting machines for different industries and different requirement, Golden Laser provides a variety of types of laser generators with different power and comprehensive customized solutions for customers.
Different types of laser generators have different advantages for cutting. As a metal cutting machine manufacturer with solid strength and outstanding competitiveness, Golden Laser launched fiber laser generator, YAG lamp pump generator and CO2 RF metal laser tube for customers’ option. Customers can choose the most suitable laser generator to meet production demands according to the application industry, cutting materials, cutting requirements, budgets and other factors.
Advantages Comparison between Different Types of Laser Generators:
|
Fiber Laser |
YAG Lamp Pump Laser |
CO2 RF Metal Laser |
Power |
200W~2000W |
500W/650W/850W/1300W |
300W/500W |
Advantages |
Excellent laser beam quality, high cutting precision, high cutting speed, high efficient photoelectric conversion rate, low use-cost and maintenance cost, easy operation and convenient maintenance |
Compared with fiber laser generator and CO2 RF metal laser tube of the same power, it has lower price, thicker material cutting ability, wider application field and lower one-time investment. |
It can cut metal sheets and non-metal materials. Wider range of applicable materials. Adjustable output power. Maintenance free. Easy to operate and convenient to use. |
Applicable Materials |
All kinds of metal sheets and pipes |
All kinds of metal sheets and pipes |
All kinds of metal sheets, acrylic, wood board and other nonmetal materials |
Applicable Industry |
Sheet metal, hardware, watches, metal art craft works, etc. |
Sheet metal, kitchenware, metal letters and accessories & hardware, etc. |
Sheet metal, advertising, furniture and models, etc. |

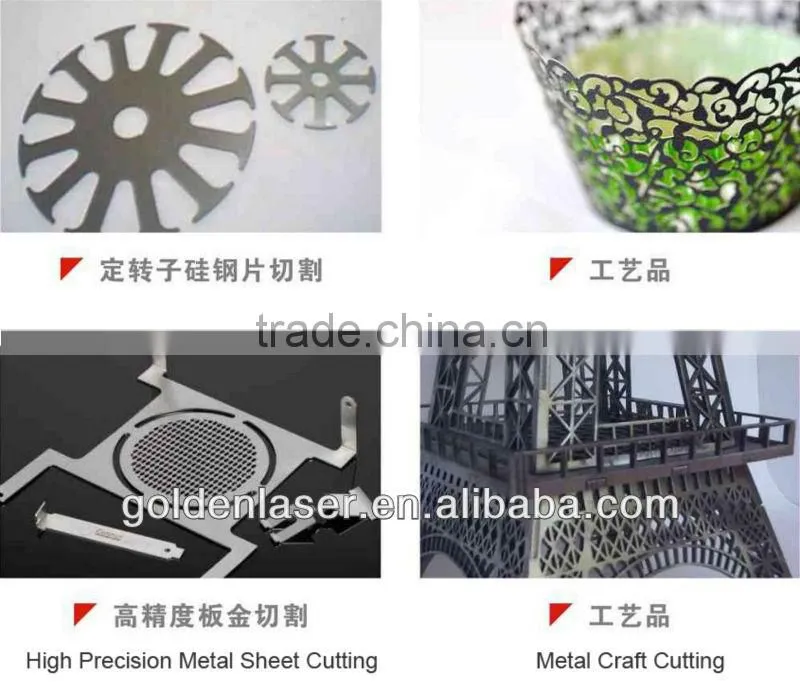

<< Sheet Metal, Advertising Letters and Cabinet Laser Cutting Samples:
<< Kitchen Ware and Spare Parts Laser Cutting Samples:
<< Machinery, Electrical Cabinet and Food Machinery Laser Cutting Samples:
<< Hardware Laser Cutting Samples:
About GOLDEN LASER:
Golden Laser is a professional manufacturer of different types (CO2, YAG, and Fiber) laser cutting, laser engraving, laser marking and laser welding systems. Whether you need a cost-effective machine or a more sophisticated automated solution. From the economical models to the large format processing systems, GoldenLaser has the laser machine solution that meets your requirements.

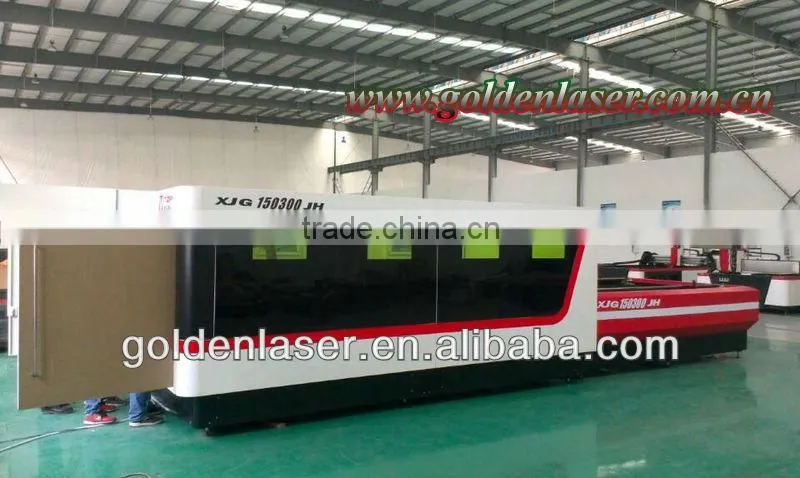

Golden Laser Factory Photos:
When inquiry for price list,working videos,package,delivery time and more specification,please let me know :
1,Which material do you need to cut ?
2,What is the size and thickness ?
3,What is your business industry ? Are you an end user or reseller?
We will be happy to help you in any way we can.
