Spark Plug Laser Welding Machine
- 6000 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Place of Origin: | Hubei, China | Brand Name: | Golden Laser |
Model Number: | GHJ-300GX | Single Pulse Energy: | 150J | Wavelength: | 1064um |
Focal Spot Diameter: | 0.8mm | Max. Output Power: | 300W | Dimensions: | L750 X W1620 X H1340 |
Usage: | laser welding metal | Power(W): | 12KW | Certification: | CE, ISO |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wooden Case Package
Product Description
Specifications
spark plug laser welding machine1.single pulse max output power 150J
2.high stability
3.fiber transmission
4.Factory price
Spark Plug Laser Welding Machine
Laser welding has the superiority of small welding spot diameter, narrow weld seam and excellent welding effect. After welding, there is no need further treatment or merely simple further treatment. Furthermore, laser welding is applicable to a large scale of materials and can weld various different materials. There advantages enable laser welding be widely used in varieties of precision welding processes.
@ How does laser machine welding metal materials:
Demo video on youtube: http://youtu.be/hIh9KjNUwBI
Main Advantages of Laser Welding Machine
1.Laser welding can control the heat input to the least demand quantity. Its range of metallographic change in the heat-affected zone is small. The deformation caused by the heat conduction can be controlled to minimum.
2.Laser welding doesn’t use electrodes, so there is no electrode contamination or electrode damage. Furthermore, because it is non-contact welding process, equipment wear and deformation can be reduced to minimum.
3.Laser beam is easy to focus and be aligned and is easy be guided by optical instruments, so laser welding machines can be placed at the appropriate distance from the workplace and laser beam can be guided around the machine or through the obstacles. Other welding methods are unable to take effect due to the above space limitations.
4.The workpiece can be placed in hermetic space (under the control of vacuum or internal gas environment.)
5.Laser beam can be focused in a small area, so laser welding can weld small metal parts with close welding gap.
6.Laser welding is applicable to a large scale of materials and can weld various different materials.
7.Laser welding is easy to do automatic high-speed welding and can process under digital or computer control.
8.While welding thin metal sheets or thin wires, users will not be disturbed by the phenomenon of melt back as arc welding.
9.Laser welding is not affected by the magnetic field (arc welding and electron beam welding is easily to be affected) and can be accurately focused on the welded workpiece.
10.Laser welding is applicable to metals of two different physical properties (such as different resistance)
11.Laser welding does not need vacuum environment or X-ray protection.
12.Laser welding can use switch devices and optical fiber to transmit the laser beam to different work points, meeting the need of synchronized multi-position welding and non-simultaneous multi-position welding.

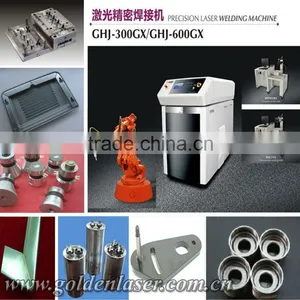

High Precision Laser Welding Machine GHJ-300GX /GHJ-600GX
Laser Welding Machine Main Features:
♦This machine adopts 1064nm pulse laser as light source. It utilizes laser radiation to heat the surface of workpiece. The surface heat transmits to the internal part of the workpiece by heat conduction effect. The width, energy, peak power and repetition frequency parameters of the laser pulse can be controlled to melt the workpiece and then form melt pool. Because of its unique advantages, this technology has been successfully applied into micro & small metal parts precision welding and welding thin metal sheet.
♦Laser Beam is transmitted through flexible optical fiber and then is projected on the weld joint through the welding head.
♦Laser welding is a non-contact welding process, no need of pressure infusion. Just required inert gas to prevent the melt pool from being oxidized. Precision Electric Slide.
Applications
Wide range of industrial applications of laser welding machine:
Such as batteries, electronics, optical communications, automotive, auto parts, sensor, microelectronics, hardware, household appliances, medical equipment, mold, bathroom, super capacitors, motors, instrumentation, aerospace, solar, glasses, jewelry, etc.
Welding material is mainly metallic material:
Such as stainless steel, aluminum alloy, carbon steel, mild steel, brass, copper, galvanized sheet, rare metals, etc.
GHJ-300GX / GHJ-600GX Laser Welding Machine Technical Parameter
Laser types | YAG lamp pump laser generator | |
Laser wave length | 1.064μm | |
Maximum power | 300W ( GHJ-300GX ) 600W ( GHJ-600GX ) | |
Single pulse maximum output power | 150J | |
Output stability | ±5% | |
Laser transmission mode | Flexible fiber | |
Power supply | Triphase AC 380V | |
Maximum input power | 8kW | 16KW |
Size | L750xW1620xH1340 | |
Working table(optional) | Precision electrical slide working table; galvanometer working table; robot device | |
Positioning accuracy | 0.01mm | |
Cooling system | Internal & external double circulation heat exchange | |
heat exchange power | 12.5kW | 18KW |
Quantity of fiber transmission branches | 1~4 | |
Storable laser type | 32 types | |
Video monitoring(optional) | High-definition camera + 14 inch monitor | |
Format supported | DWG, DXF, PLT,AI, etc. | |
Weight | 450kg |
Laser Welding Machine - Welding Working Table
Pecision Electric Slide |
|
Galvanometer Working Table |
|
Fiber Laser Welding Robot Arm |
|
Robotic Arm Fiber Laser Cutting/Welding System
Product Feature
1) Repeat positioning accuracy up to 0.05mm, max moving speed 2.1M/S.
2) It perfectly integrated the world famous ABB robot arm and fiber laser welding machine that can realize automated production to the maximum.
3) Reduce operating costs, improve product quality and consistency, improve the working conditions of employees, expand production, and enhance manufacturing flexibility, reduce material waste and improve qualified products' rate.
4) Combined with simulation software Robot Studio of ABB offline programming and the good human-computer interaction interface Flexpendant as well as man-machine interface, it makes the entire laser welding system to meet customer technical requirements and easy to operate and manage .
5) The robot arm programming can meet various modes of production and prepare in advance, so it greatly reduce the adjust time in the production, improve production efficiency and expand return of investment of robot arm system.
XJG-2400 Laser Welding Robot Arm Technical Parameter
Distance of 5th axis reaches | 1.44m |
Number of robot body axes | 6 |
Number of external devices axes | 6 |
Continuous rotation axis | 6 |
Repeat positioning accuracy | 0.05mm |
Tcp top speed | 2.1m/s |
Laser type | IPG fiber laser generator |
Laser power(standard/optional) | 500W/1000W |
Power supply | 200-600V, 50/60Hz |
Weight of robot arm | 380kg |
Integrated source | Upper arm 23 channel signal |
Integrated gas source | Upper arm up to 8bar |
Application Fied
It is suitable for various metallic materials and ABS non-metallic materials.
It is applicable to Auto industry, mold making, kitchenware and hardware automated cutting.
Laser Welding Samples:
Golden Laser Factory & Exhibition:
<< When contact Golden Laser for laser welding machine detail specifications, Please kindly let me know:
1. What’s your welding material?
2. Welding speed you required?
3. What’s your application industry?
4. Picture of your sample (more and clear picture will be highly appreciated, especially on welding area).
5. DWG. Format welding drawing.
6. Requirement of gas tightness, weld strength, depth of fusion.
Attn. Ms Yoyo Ding
W.E.B : www goldenlaser com cn
E.m.a.i.l : yoyo(at)
Company Profile
Golden Laser, a high-tech enterprise, is committed to providing laser machines and solutions for global customers. (Stock Code: 300220)
Product line includes laser cutting machine, laser engraving machine, Galvo laser machine, Co2 flatbed laser cutting machine, metal laser cutting machine, fiber laser cutting machine, yag laser cutting machine, laser marking machine, more than 100 models of laser machines with different types of Co2, YAG and fiber laser. Applications involve textiles, garment, industrial fabrics, advertising, printing, packaging, electric, furniture, decoration, carpets, car interiors, metal processing and other industries.
After many years of efforts and innovation, Golden Laser has grown into China great leadership and world-renowned manufacturer of laser equipment. Our marketing network has been extended to more than 100 countries and regions globally. Especially in the textile and garment field of laser applications, Golden Laser has become China's first brand.
As a backbone enterprise of China Optical Valley, Golden Laser has research and development centers and a government awarding foreign technical cooperation agencies, and built complete laser equipment manufacturing industry chain. A number of products and technologies obtained national patents and software copyrights.
Looking forward to the future, Golden Laser will continue to adhere to the main line of development of the industry breakthrough strategy to continue to strengthen technological innovation, management innovation and marketing innovation as the core of the innovation system advantages.
Golden Laser Development Direction
For all sectors to provide laser application solution providers and aggregators
Integrated laser full industrial chain, providing solution for laser application
Providing service for all the enterprises on the laser industry chain
Golden Laser Spirit
Unity
--Great Efforts and Hard Struggle
Creativity
--Patent and quality
Faith
--Sincerity and trust
Service
--Customer priority and consideration
Contact Us
- Wuhan Golden Laser Co., Ltd.
- Contact nameYOYO DING
- Phone0086-158-71714482
- AddressNo. 6, Shiqiao Rd.1, Economic Development Zone, Jiang'an District Wuhan,Hubei
