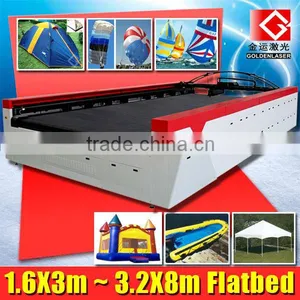

Flatbed Laser Cutting for Tent/PVC Coated Fabric/Canvas/Oxford Cloth/Fiberglass
- 6000 Set / Sets per Month
- Shanghai
- T/T
- PVC Coated Fabrics,Sail Boat,PE,Tent Laser Cutter Bed
- Membrane Structure Tent Laser Cutting Bed 320cm width
- Genuine Leather Laser Cutter with CCD Camera Auto Recognition System
- Co2 flatbed laser cutter/genuine leather laser cutter
- flat bed CO2 laser for genuine leather cutting
- Flat Bed Co2 Genuine Leather Laser Cutting Machine Price
Product Details
Condition: | New | Laser Type: | CO2 | Applicable Material: | Other, industrial fabric |
Cutting Thickness: | laser cut tent | Cutting Area: | 1.6X3m,2.5X3m,2.1X6m,3.2X8m | Cutting Speed: | 0-36000mm/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Golden Laser Software |
Graphic Format Supported: | AI, PLT, DXF, BMP, DST, DWG, DXP | Place of Origin: | Hubei, China | Brand Name: | Golden Laser |
Model Number: | CJG-320800DT | Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wooden Case Package
Product Description
Specifications
laser cutting for tent1.fast continuous cutting
2.clean cutting edge
3.auto feeder conveyor table
4.laser cut long pattern
Flatbed Laser Cutting for Tent/PVC Coated Fabric/Canvas/Oxford Cloth/Fiberglass
@ Laser Cutter Plotter,Demo Video: http://youtu.be/r8AxDKtlx7A
With the variety of the outdoor’s material, large size for processed design, high costs of raw materials, Golden Laser introduced super large working size, continuous nesting and auto-feeding laser processing system. It adopts belt transmission technology to reach super large size laser cutting without restriction, makes any designs with rapid production, modular installation, and easy maintenance.
@ Advantages of Laser Cutting:
♦ No burr/fraying with laser cutting:
Laser cutting is done by high temperature process. It can make cut edge to close up automatically. Hence, no need to recut the patterns after one-time cutting.
♦ No distortion to the processed fabric:
In the process of cutting, laser dose not touch the processed fabric, but laser beam works on the fabric.
♦ High precision:
Diameter of the laser beam can be focalized into 0.1mm (we adopt top lens imported from world famous company II-VI-INFRARED).
Cutting is done exactly according to uploaded graphics through computer control.
♦ High efficiency and easy operation:
Just upload the graphics into the cutting machine and laser will cut fabric into shapes as designed.
@ Welcome to contact Golden Laser by info(at)
@ Laser cutting machine application: Suitable for cutting a variety of textile and industrial fabrics.
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
Large Format Laser Cutting Machine CJG-210600LD & CJG-320800LD
@ Laser Solution for Cutting Textile Fabrics::
(1) Laser cutting with large working area
(2) Smooth, clean cutting edges, no reworking necessary
(3) No fraying of the fabric, No deformation of fabric
(4) Automated production process with conveyor and feeding systems
(5) Simple production via PC design program
(6) Complete extraction and filtering of the cutting emissions
@ Welcome to contact Golden Laser by info(at)
Laser Cutting Machine | ||||||||||||||
Laser Cutting Machine Introduction
| As the leader of laser solution for flexible fabrics, GODLEN LASER is the first one who developed large format laser cutting machines for industrial fabric cutting. Integrated laser cutting, precision unwinding and rewinding, auto marker, continuous cutting of super long material, auto-recognition cutting, marking, scoring and order management together. •Super large working size, fast speed, and high precision, with CE approval.
At present, GOLDEN LASER has developed more than 30 models of laser cutting machines for industrial fabrics and flexible materials. There are 4 series:
(1) Synchronous Belt Series: Synchronous belt transmission with accurate transmission. Stable performance, high efficiency, lubrication-free and easy maintenance. Compared with other laser cutting machines, it has lower cost. (2) Galvanometer Series: High speed Galvo scanner. Processing speed can reach up to 8000mm/s. Especially suitable for high speed processing of small images. (3) Galvanometer with X, Y Axis Series: Combining X, Y laser head cutting and Galvo head engraving. No need re-locating. High precision, high efficiency and more convenient. (4) Double Y-axis Series: with flying route and double Y-axis structure (principal axis and auxiliary axis). The double Y-axis share the weight of gantry and can achieve large format high speed cutting (1200mm/s).
| |||||||||||||
Laser Cutting Machine Photos | ||||||||||||||
Laser Cutting Machine Features | 1. Open-type wide area laser cutting bed. Various working areas optional. 2. Vacuum absorb conveyor working table with auto-feeding device, it is capable of fast and continuous cutting of textile fabrics. 3. If the length of single layout exceeded cutting area, cutting system can achieve continuous feeding and cutting. 4. Smart nesting software is optional, it can do fast marker making in the most material-saving way. 5. CNC 5-inch LCD screen operating system. Supporting multiple data transmission. Enabling offline or online operation. 6. Laser heads are synchronized with exhaust system so that can totally discharge smoke and fume from materials being cut to keep good environment and high precision of the machine. 7. You can print to the laser from a variety of programs, including CorelDraw, AutoCAD and Adobe software. 8. Equipped with optic CCD camera recognition system, it is able to automatic finding edges and cutting. | |||||||||||||
Laser Cutting Machine Main Technical Parameters | ||||||||||||||
Model NO. | CJG-160300LD | CJG-250300LD | CJG-210600LD | CJG-320800LD | ||||||||||
Working area | 1600X3000mm | 2500X3000mm | 2100X6000mm | 3200X8000mm | ||||||||||
Laser Power | CO2 DC Glass Laser Tube 80W / 100W / 130W CO2 RF Metal Laser Tube 100W / 150W / 200W | |||||||||||||
Working Table | Vacuum absorb conveyor working table | |||||||||||||
Repeating Positioning Accuracy | ±0.5mm | |||||||||||||
Cutting Speed | 0-36000mm/min | |||||||||||||
Motion system | Offline Servo motion control system, 5 inches LCD display | |||||||||||||
Cooling System | Constant temperature water chiller | |||||||||||||
Power Supply | AC 220V±5% /50Hz | |||||||||||||
Format Support | AI, BMP, PLT, DXF, DWG, etc. | |||||||||||||
Standard Collocation | 550W upper exhaust fans, 3000W nether exhaust fans, Mini air compressor | |||||||||||||
Optional Collocation | Auto-feeding system, Auto-recognition system, Auto nesting software, Marking system, Double laser head | |||||||||||||
Working area and laser power can be customized as your requirement. | ||||||||||||||
Wide ranges of Cutting size optional: 1m x 0.6m,1.6m × 1m , 1.8m × 1m , 2.1m × 3m , 2.5m × 3m , 2.1m × 6m , 3m × 6m, 3.2m × 8m , etc. | ||||||||||||||
Price list, brochures, videos, samples-making and detail specifications are available. | ||||||||||||||
Laser Cutting Application | Suitable for cutting a variety of textile, fabric and industrial flexible material. etc.
Laser Plotter Cutter Materials: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, etc.
Application: Inflatable products, Inflatable tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, tents, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, Umbrella, Rain Coat, Rain Apparel etc. | |||||||||||||
Laser Cutting Samples | ||||||||||||||
