Laser Plotter Textile Paraglider Cutting Equipment

Wooden Case Package

Specifications

Laser Plotter Textile Paraglider Cutting Equipment

@ GOLDEN LASER – Fabrics Laser Cutting Machine Demo on YouTube

<< Large Format Laser Cutting Outdoor Products:                           http://youtu.be/lMX-7Gonc0g

<< Laser Cutting Machine for Filter Cloth:                                        http://youtu.be/OHZbhxVIWqQ

<< Flatbed Co2 Laser Cutting Machine for Home Textile:                 http://youtu.be/RdTQ_fQF1ME

<< Double Y-Axis High Speed Laser Cutting Machine for Fabric:     http://youtu.be/ed6tIzYwDyE

<< VisionCut Laser Cutting Sublimation Printing Textile:                  http://youtu.be/PyLwdtDORTQ

With the variety of the outdoor’s material, large size for processed design, high costs of raw materials, Golden Laser introduced super large working size, continuous nesting and auto-feeding laser processing system. It reaches super large size laser cutting without restriction, makes any designs with rapid production, modular installation, and easy maintenance.

@ Advantages of Laser Cutting

♦ No burr/fraying with laser cutting

Laser cutting is done by high temperature process. It can make cut edge to close up automatically. Hence, no need to recut the patterns after one-time cutting.

♦ No distortion to the processed fabric

In the process of cutting, laser dose not touch the processed fabric, but laser beam works on the fabric.

♦ High precision

Diameter of the laser beam can be focalized into 0.1mm (we adopt top lens imported from world famous company II-VI-INFRARED).

Cutting is done exactly according to uploaded graphics through computer control.

♦ High efficiency and easy operation

Just upload the graphics into the cutting machine and laser will cut fabric into shapes as designed.

@ More Laser Cutting Machine Details, contact Golden Laser by info(at)

@ Laser cutting machine application: Suitable for cutting a variety of textile and industrial fabrics.

1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.

2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.

3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.

4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.

5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.

6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.

@ Laser Solution for Cutting Textile Fabrics

(1) Laser cutting with large working area

(2) Smooth, clean cutting edges, no reworking necessary

(3) No fraying of the fabric, No deformation of fabric

(4) Automated production process with conveyor and feeding systems

(5) Simple production via PC design program

(6) Complete extraction and filtering of the cutting emissions

@ More Laser Cutting Machine Details, contact Golden Laser by info(at)

@ Fabric Laser Cutting Machine Brief Introduction

Compared with the traditional knife and hot branding processing, laser is advanced CNC technology and a unique non-contact processing, working without any graphical limits and will not produce any mechanical deformation. Laser processing has the advantages of high precision, high speed, no fraying, and high quality results. In addition, applicability of laser processing is more flexible. Laser can do cutting, engraving, hollowing, punching and other processing for a variety of textile, fabrics, garment accessories, leather, fur, shoe, plush toy, home textile, upholstery, carpet, automotive interior, car seat cover, etc. Laser processing technology is more sophisticated, creative and unique.

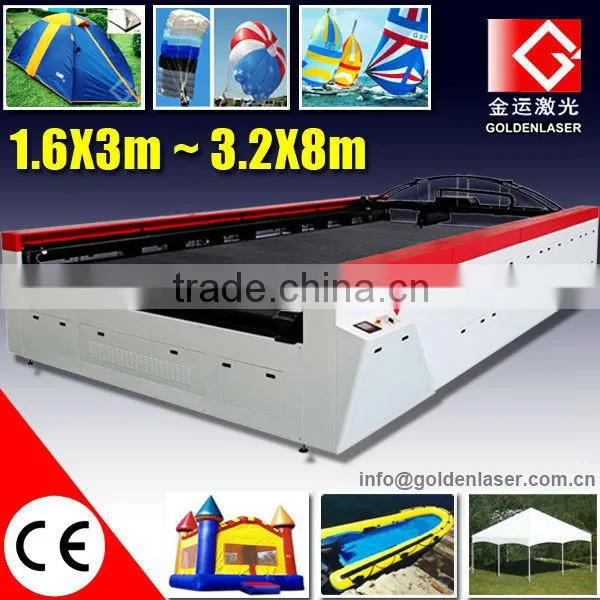

Flat Bed Co2 Laser Cutting Machine

CJG-160300LD  CJG-250300LD  CJG-320500LD  CJG-320800LD and More

Laser Cutting Machine Features

1. Open-type wide area laser cutting bed. Various working areas optional.

2. Vacuum absorb conveyor working table with auto-feeding device, it is capable of fast and continuous cutting of textile fabrics.

3. If the length of single layout exceeded cutting area, cutting system can achieve continuous feeding and cutting.

4. Smart nesting software is optional, it can do fast marker making in the most material-saving way.

5. CNC 5-inch LCD screen operating system. Supporting multiple data transmission. Enabling offline or online operation.

6. Laser heads are synchronized with exhaust system so that can totally discharge smoke and fume from materials being cut to keep good environment and high precision of the machine.

7. You can print to the laser from a variety of programs, including CorelDraw, AutoCAD and Adobe software.

8. Equipped with optic CCD camera recognition system, it is able to automatic finding edges and cutting.

CJG-320800LD Laser Cutting Machine Configuration

CJG-320800LD Large Format Laser Cutting Machine Specification

• Laser type: DC glass laser tube or RF metal Co2 laser tube

• Laser power: 130W ~ 200W optional

• Working area: 3200X8000mm (1600X2500mm, 1600X3000mm, 2100X3000mm, 2500X3000mm, 2100X6000mm, 3200X5000mm and other working areas available)

• Cutting speed: 0-600 mm/s

• Positioning accuracy: ± 0.5 mm

• Motion system: Japanese servo control system

• Control panel: New 5 inches control panel

• Working voltage: 220 V ± 10%, 50/60 HZ

• Total power: 14KW

• Auxiliary equipments: Big exhaust fans, air blower

• Cutting platform: Auto conveyor vacuum working table

• Extra system: Auto feeding system & Marking pen system (optional)

• Cooling system: Constant temperature water chiller

• Power controlling mode: Laser power and motion system cooperate

• Controlling software: Original GOLDEN LASER software, English manual

• Machine weight: About 2000 Kg

Samples Gallary (Suitable for cutting a variety of textile, fabric and industrial flexible material. etc.)

 We would like to email you the most suitable machine's details according to below information

1, What material do you need to cut ?

2, What is the width and length of the material or is it in roll ?

3. What is the max. size of pieces after cutting?

4,What is your business industry ? Are you an end user or dealer?

Attn:               Ms. Yoyo Ding

E-M-A-I-L:      info(at)

Site:

More Laser Cutting Machine Demo on YouTube:      /user/Goldenlaservideo

Golden Laser offers Customized Laser Solutions. Looking for Users & Distributors Globally!
