The Golden Hontec Converting Machines are modular design of lines allows every customer to customise the equipment exactly according to specific needs. The machine allows the freedom to add or remove components based on the complexity of operations. It can fulfill different applications in a single production cycle, creating labels with the highest value.

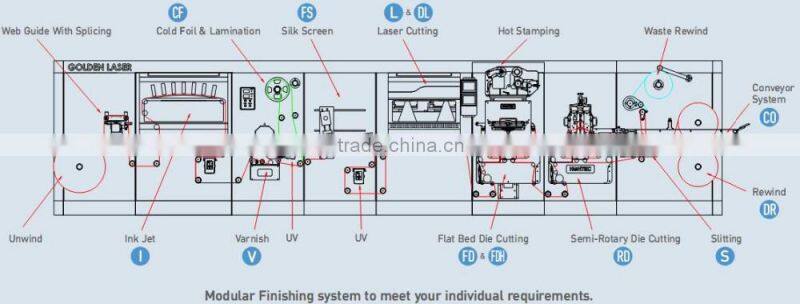

Each of our after printing systems are designed to add-on converting options, such as:
Laser die cutting,
Lamination,
Flexo Varnish Station,
Hot Stamping Station,
Semi-Rotary Die Cutting Station,
Slittering,
Sheeters,
Rewinders
Exclusively,our laser die cutting technologh is the right modular solution both for digital and traditional finishing.

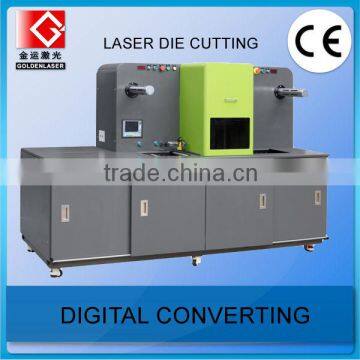

LC230 machine ,230mm web width Laser+UV varnish+Slitting
https://youtu.be/2FXoKoKrjOQ
LC230 machine,230MM web width Laser+Lamination+Slitting
https://youtu.be/kP57-kUzPOw

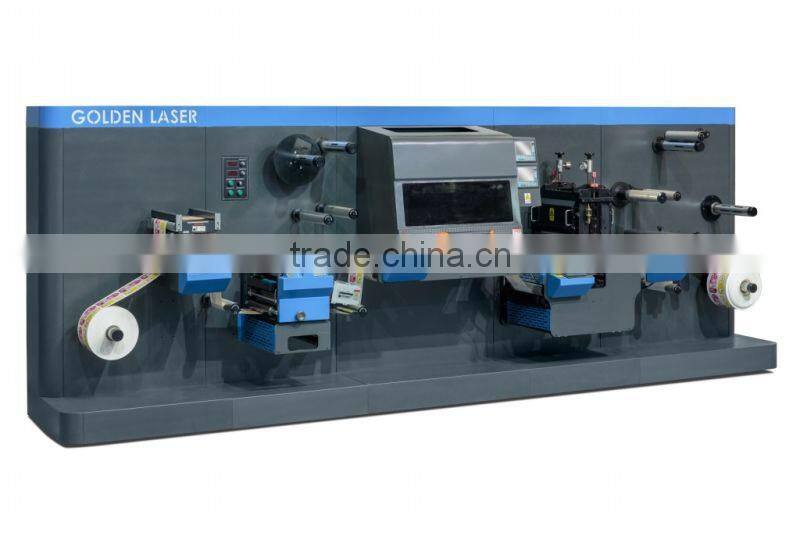

LC350 machine,350mm web width, Double laser head+lamination+uv varnish+semi-rotary cutting
https://youtu.be/OHMsZ_Mwe2Q
Un-winder
Electrically driven pneumatic tension spindle
Web tension and speed control via material rocker
Max. web width: 350 mm
Max Unwind Diameters:600mm

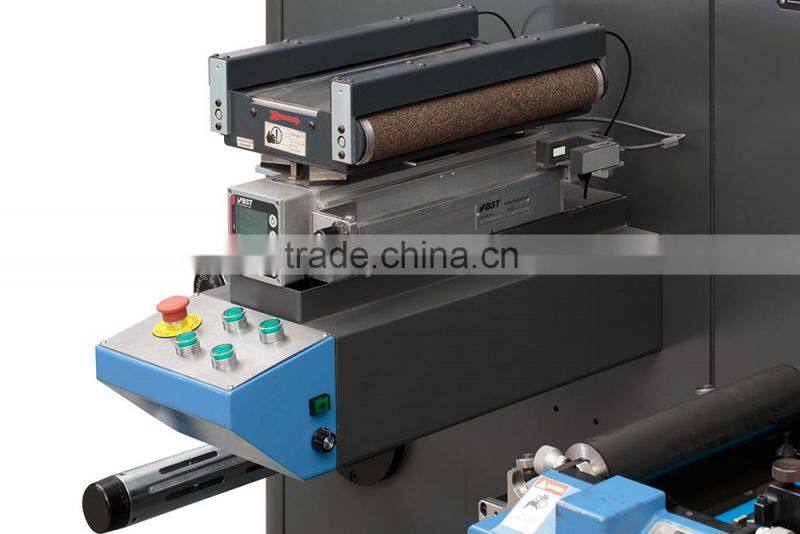

Web Guide Control System From BST
From BST
Edge sensor adjustment
Laser Die Cutting System
Laser die cutting area 350mm*∞
Sealed CO2 laser source from Rofin 275w up to 500w
Lifetimeof the laser source Recharge=20,000hours
Single or dual laser head is available
3axis Galvo Scanner head from Scanlab
Vacuum table with wastebasket
Water chilling for the laser tube
Blowing and exhausting air nozzle system for smokeless operations
Cutting Accuracy +/- 0.1 mm
Laser cutting speed up to 80m/min
The software is able to import die cutting files from common graphic software: Adobe Illustrator (ai), Data exchange files (dxf), HP graphic files (plt), Bitmap (BMP)etc.

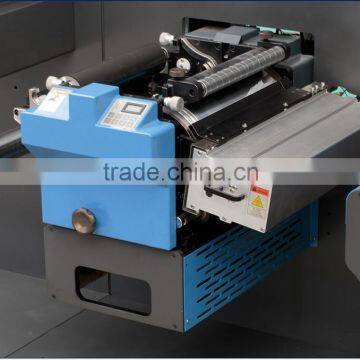

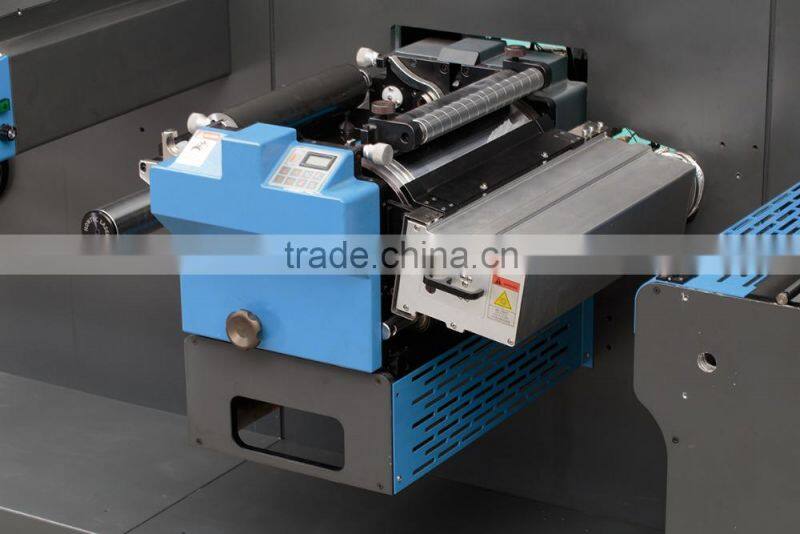

Flexo UV Varnish Station
Format of the varnish from 5~350mm
Controlled by servo motors from PHASE
Dried immediately by exposure ultra-violet light
Printing speed up to 60m/min
The application and replacement of the flexible plate can be done in a few second thanks to the opening on the top that allows operater an easy access to the cylinder

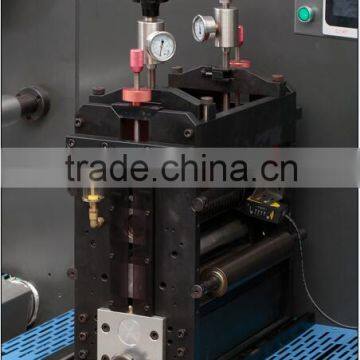

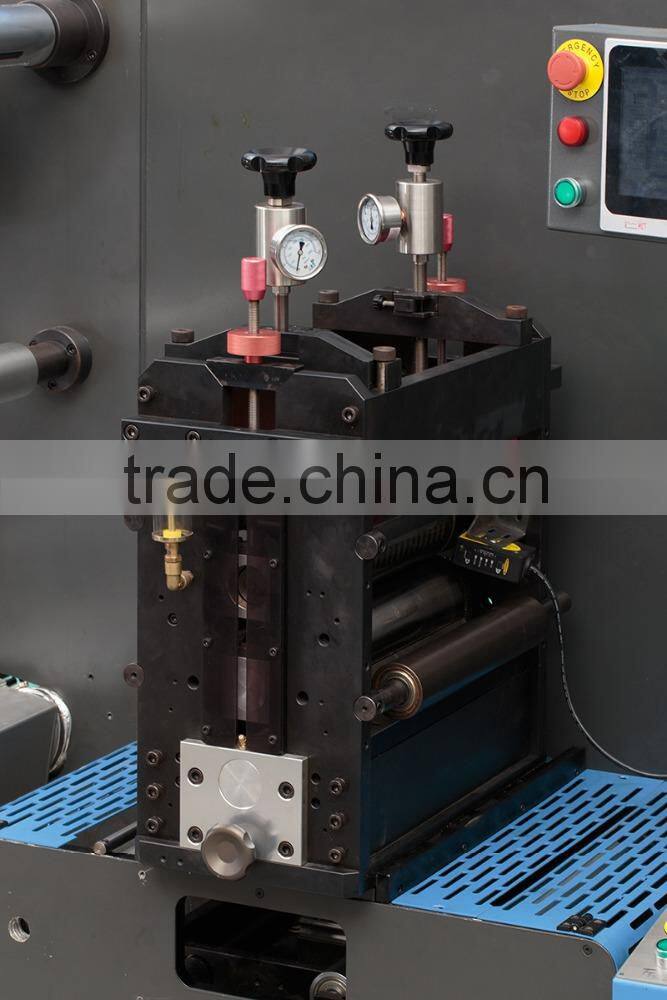

Semi-rotary Die Cutting
Format of the semi-rotary die cutting from 5~350mm
Controlled by servo motors from PHASE
Slitting
At most fix 5 knives
Dual Re-winder
Controlled by servo motors from PHASE
Web tension and speed control via material rocker
Max. web width: 350 mm
Max Re-wind Diameters:600mm
Waste Collecter
Waste grid removal with a pneumatic expansion rewind spindle
Max. web width: 350 mm
Max Re-wind Diameters:600mm
LC230

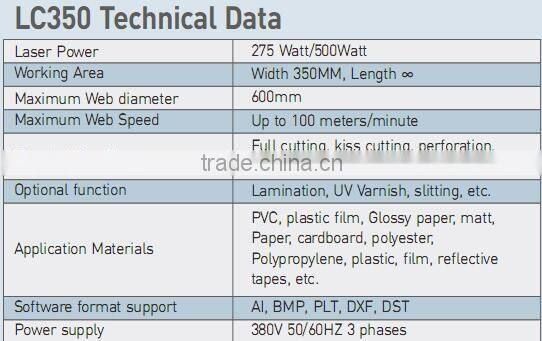

lC350
Golden Hontec Laser technology Co.,Ltd is one of the most innovative and energetic companies in Asia dedicated in printing and finishing industries. We are the First Asian Company built and installed the first set of high speed roll to roll label laser die cutting machine early on 2009.With several years development and growing,our production line covered from diversified finishing system, such as laser die cutter, semi rotary die cutter, slitting, cold foil, UV varnishing, etc.
Our aim is to build magnificent convert solutions and creat more value for clients.
