HDMI switch 2x1 switch Multi-Viewer With picture in picutre, support  RS232 and IR





I. Introduction



This product is a high performance 2 by 1 Multi-Viewer. It supports two High definition input source display on one screen. As a Multi-Viewer, it can display on one screen in 4 modes.



II. Features



  1. 1. Compliant with HDMI 1.3a,HDCP 1.2;
  2. 2. Supports multiplexed HDMI 2-input and 1-output and 4 display modes;
  3. 3. Supports up to 1080p High Definition resolution;
  4. 4. Support scaler up, scaler down function;
  5. 5. Support multi output resolution;
  6. 6. Support digital audio format LPCM/AC3/DTS



III. Package



  1. 1. HDMI 2x1 Multi-Viewer ------------------------------------------------------------------ 1PC
  2. 2. 5V1A DC Power adapter ----------------------------------------------------------------- 1PC
  3. 3. Remote control------------------------------------------------------------------------------1PC
  4. 4. RS232 Serial Cable--------------------------------------------------------------------------1PC
  5. 5. Operation Manual ------------------------------------------------------------------------- 1PC
  6. 6. Mounting ears-------------------------------------------------------------------------------2PCS



IV. Specifications

      1. Video Bandwidth225MHz[6.75Gbps]

  1. 2. Input Ports2 × HDMI (Female type)
  2. 3. Output Ports1 × HDMI (Female type),
  3. 4. Audio outputPCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
  4. 5. Input Resolution480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,



1080i50/60Hz,1080p24/30/50/60Hz,800x600@60,



1024x768@60,1280x720@60,1920x1080@60;



  1. 6. Output Resolution1080p, 720p, 1080i,1024x768,1360x768
  2. 7. ESD ProtectionHuman Body model:±8 kV (air-gap discharge)



±4 kV (contact discharge)



8.     Power Supply              5V/1A DC (US/EU standards, CE/FCC/UL certified)



9.     Dimensions70 mm (W)×140mm (D)×25 mm (H)



10.    Weight300 g



11.    Chassis Material   Metal



12.    Operating Temperature0 °C~40 °C/ 32 °F~104 °F



13.    Storage Temperature        −20 °C ~ 60 °C/−4 °F ~140 °F



14.    Relative Humidity20~90 % RH (non-condensing)



15.    Power Consumption (Max)   10W

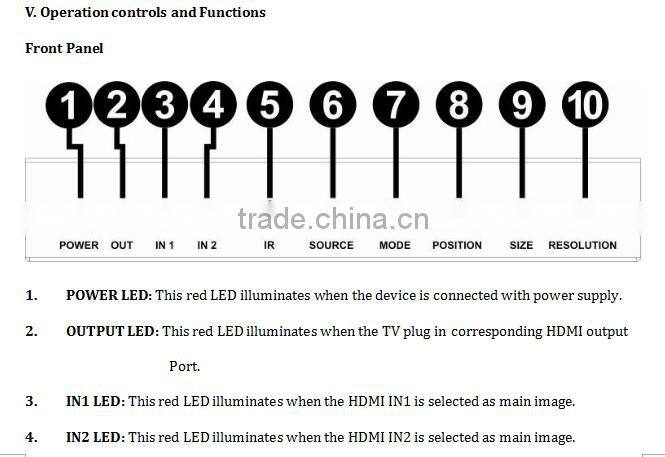

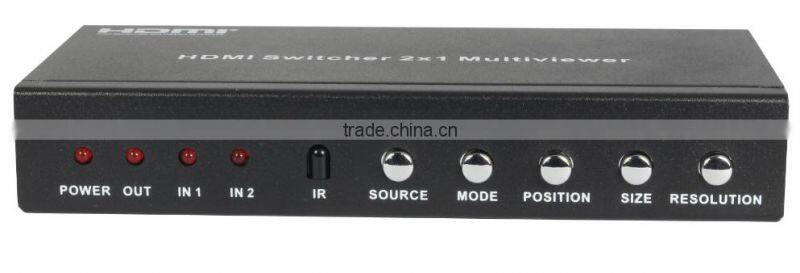

  1. 1. IR: Remote control signal receive.
  2. 2. SOURCE: Press the button to select the input source as main image, and the LED will indicates the corresponding input source.

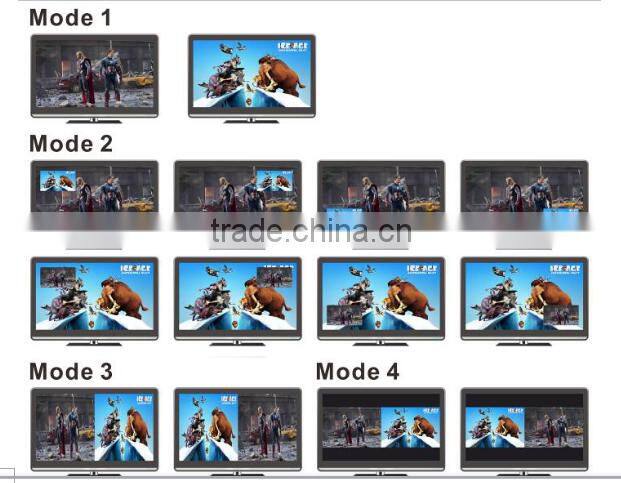

  3. 3. MODE: Press the button to select display mode. See the description 1.
  4. 4. POSITION: Press the button to select the position of sub image when in PIP mode.
  5. 5. SIZE: Press the button to select the size of sub image when in PIP mode.
  6. 6. RESOLUTION: Press the button to select the output resolution.



  1. 1. Select RS232 COM port.
  2. 2. Click to connect or disconnect PC and Matrix.
  3. 3. Select output resolution.
  4. 4. Click set to confirm.
  5. 5. Click IN1 or IN2 to select the input source as main image.
  6. 6. Click the mode Icon to select output mode.
  7. 7. Click the position Icon to select PIP position.
  8. 8. Select PIP size and click set to confirm.
  9. 9. Click to reset to the factory settings.
  10. 10. Display the FW file path.
  11. 11. Click to open BIN file(file extension is “.bin”)
  12. 12. Display the progress of the software upgrade.
  13. 13. Click to upgrade the Matrix software.
