2 Port/4port SDI Splitter SDI/HD-SDI/3G-SDI Distance up to 300m
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Playvison
Model Number:
HDV-S14
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Stablility 60Ghz Wireless Extender HDMI Wireless Balun Transmitter and ReceiverNegotiableMOQ: 1 Piece -
Super Quality 60Ghz Wireless Balun HDMI Wirelessextender Distance up to 30mNegotiableMOQ: 1 Piece
-
Factory Price 60Ghz Wireless Extender HDMI Wireless Balun Transmitter and ReceiverNegotiableMOQ: 1 Piece
-
SDI Splitter 1x2/1x4 SDI/HD-SDI/3G-SDI Distance up to 300mNegotiableMOQ: 1 Piece
-
2 Port/4 Port SDI Splitter SDI/HD-SDI/3G-SDI Distance up to 300mNegotiableMOQ: 1 Piece
Brand Name
Playvison
Model Number
HDV-S14
Place of Origin
Guangdong, China

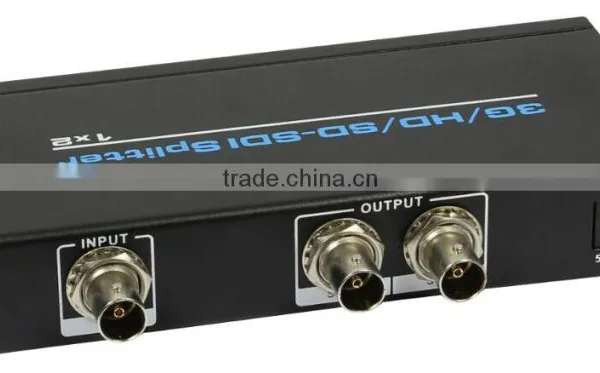

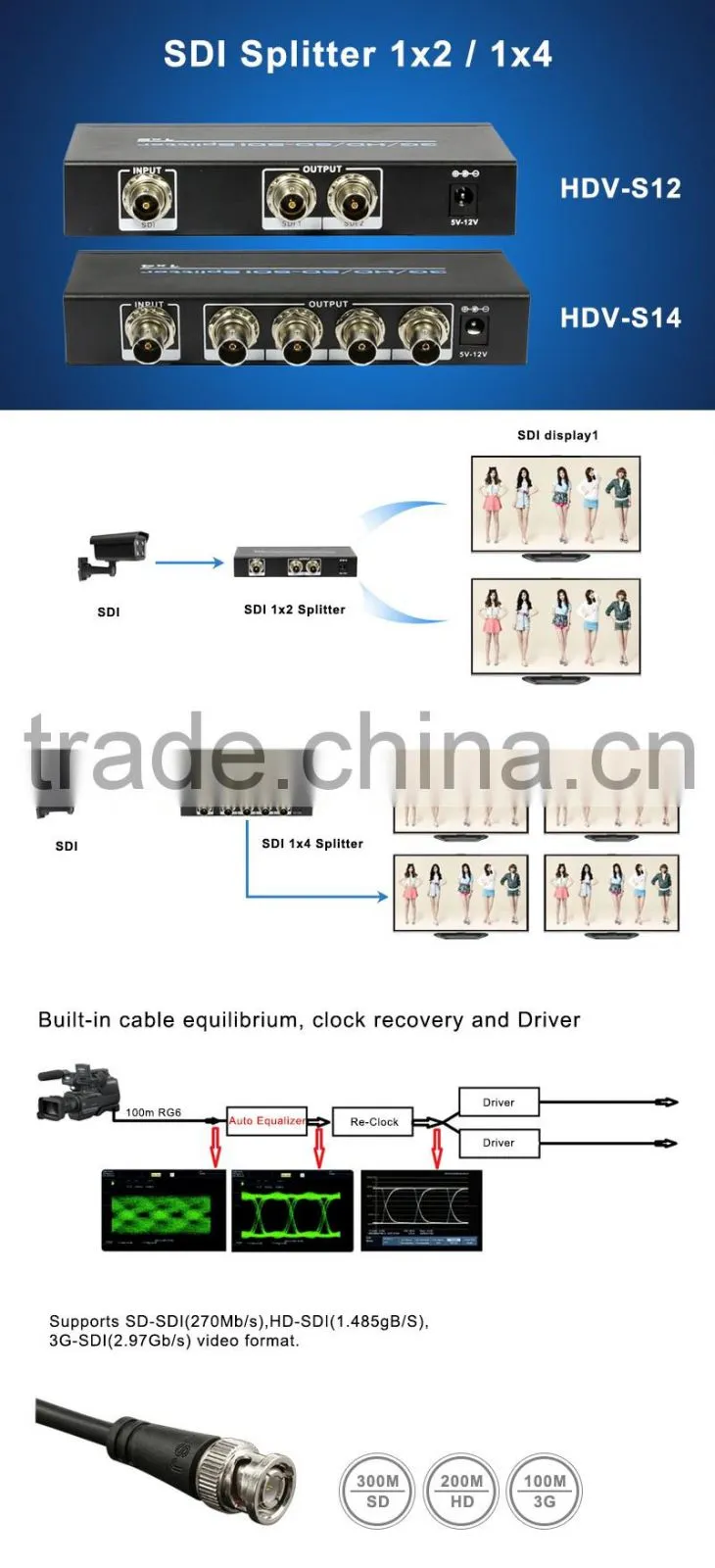

SDI Splitter 1x2/1x4
distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
I. Introduction

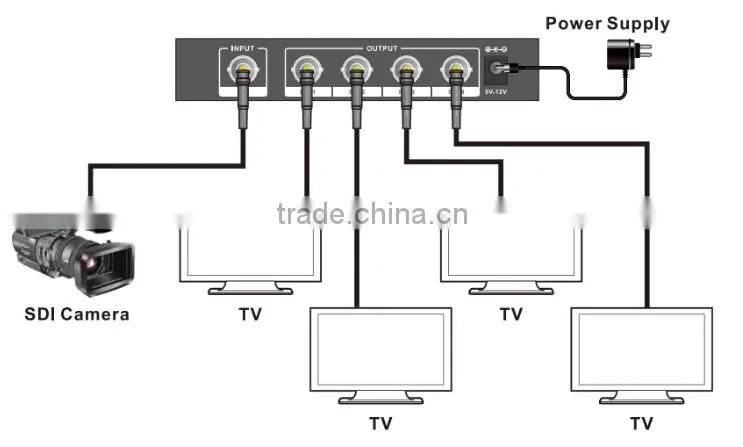

1×4 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 4 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.
II. Features
- 1. 1 SDI input signal split to 4 SDI sink devices.
- 2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
- 3. Built-in cable equilibrium, clock recovery and drive.
- 4. Supports resolutions up to 1920x1080@60Hz.
- 5. Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
- 6. Supports 5-12V wide voltage input.
III. Package
- 1. 1x4 SDI Splitter --------------------------------------------------------------------------- 1PCS
- 2. 5V1A DC Power Supply adapter ------------------------------------------------------- 1PCS
- 3. Operation Manual ------------------------------------------------------------------------- 1PCS
IV. Specifications
- 1. Frequency Bandwidth 3Gbps
- 2. SDI Splitter Input Ports 1 x BNC Female input port
- 3. SDI Splitter Output Ports 4 x BNC Female output ports
- 4. Power Supply DC 5V 1A
- 5. ESD Protection Human Body Model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
- 6. Dimensions (mm) 70(W) X 145 (D) X 25 (H)
- 7. Weight 350g
- 8. Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
- 9. Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
- 10. Relative Humidity 20 ~ 90% RH (Non-condensing)
- 11. Power Consumption (Max) 1.5W
