Hdmi Splitter 1x2
Ⅰ.INTRODUCTION
1 × 2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. It offers HD video solution for super market ; shopping m all ; HDTV, STB, DVD , projector factory; data control center; information distribution; conference room presentation; education and training ; corporation show room ; home theater , etc.
Ⅱ. SPECIFICATIONS:
Input Video Signal |
0.5 -1.0 volts p-p |
Input DDC Signal |
5 volts p-p (TTL) |
Max Single Link Range |
1920X1080, 1080P |
Output Video |
HDMI 1.3 + HDCP1.0/1.1/1.2 |
Resolutions DTV/HDTV |
480p/576i/576p/720p/1080i/1080P |
HDMI Version |
HDMI 1.3 |
Operating Frequency |
Up to 225MHz |
EIDI Duration |
4 seconds |
Power supply |
DC 5V |
Ⅲ.CONNECTION
a ) . Connect the input source and output displays to the HDMI Splitter .
*Please refer to the Connection Image.
b ) . Connect the DC 5V power supply to the splitter. Please kindly note that power supply with higher voltage may damage the splitter.
c) . When input source and output displays are connected and turned on, the corresponding LED will light.
Attention: In order to protect the splitter and your devices, p lease make sure the splitter is
powered off before you attach in or extract video source and displays . Please insert and
extract HDMI cables gentl

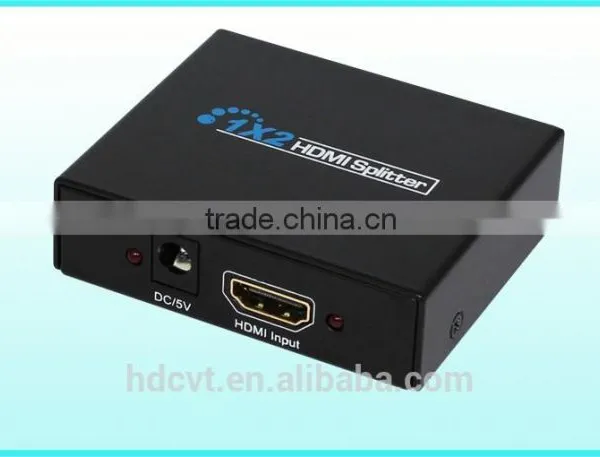

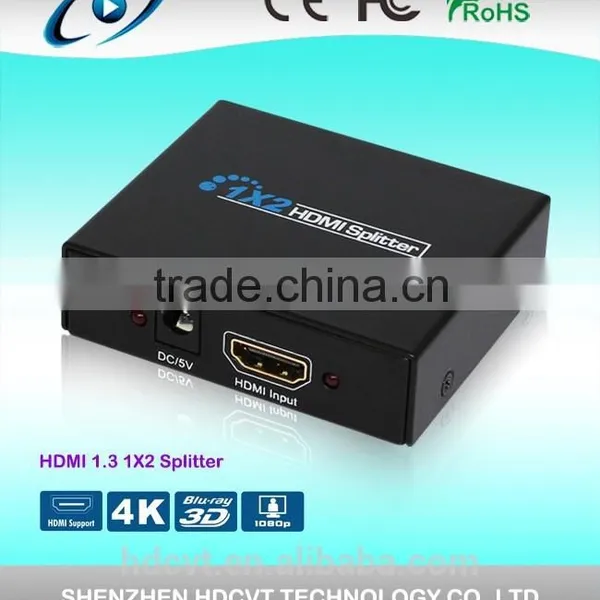

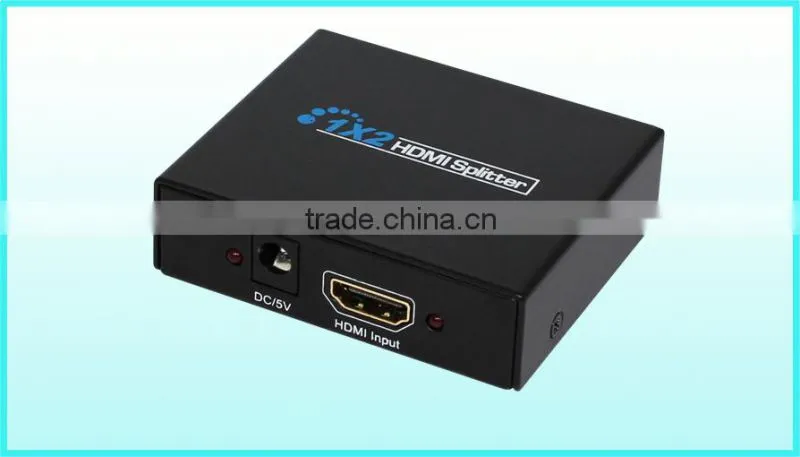

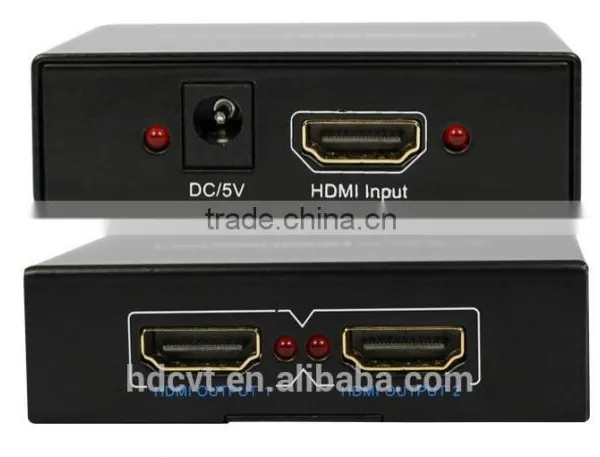

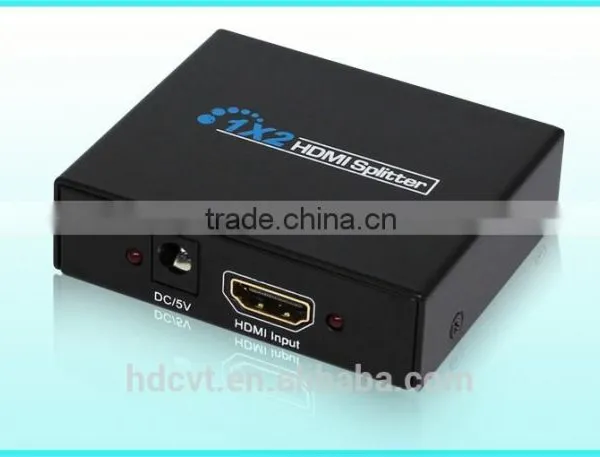

Power LED Power Supply Socket
HDMI Input LED of HDMI Input
HDMI1 Output LED of HDMI1 Output
LED of HDMI2 Output HDMI2 Output
BOX CONTENTS:
Item |
Qty |
Remark |
HDMI splitter 1 × 2 |
1 PCS |
|
Power |
1 PCS |
DC5V/1A |
User Manual |
1 PCS |
en |
|
|
|
FAQ
A ) . The splitter doesn’t appear to be functioning.
Firstly, check if the LED lights, if the power supply is in good condition and well connected. Secondly, make sure all cables are in good condition and well connected.
Thirdly, make sure the length of the cables is within the maximum supported length of this splitter. Lastly, please try to connect the input source to the display directly to see if it display normally.
B )If the maximum resolution the two displays supported is not the same, what resolution be displayed?
The splitter will display at the lower one to both displays.

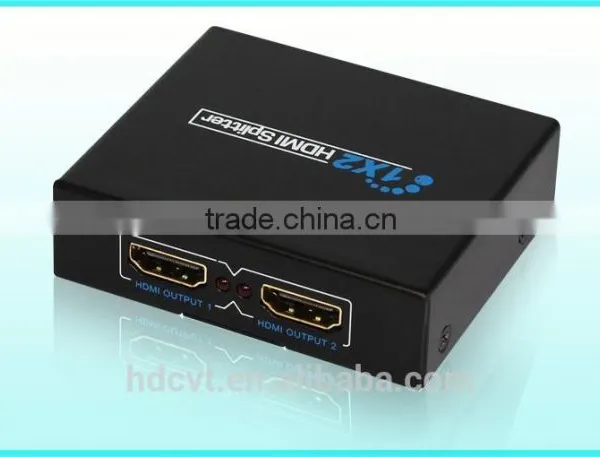

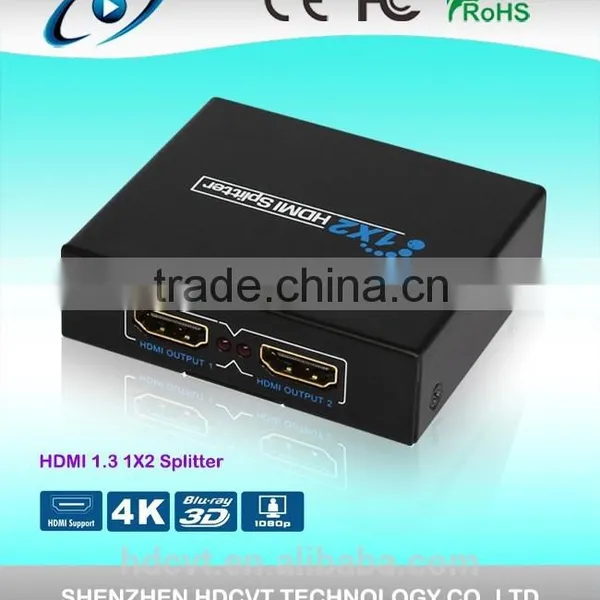

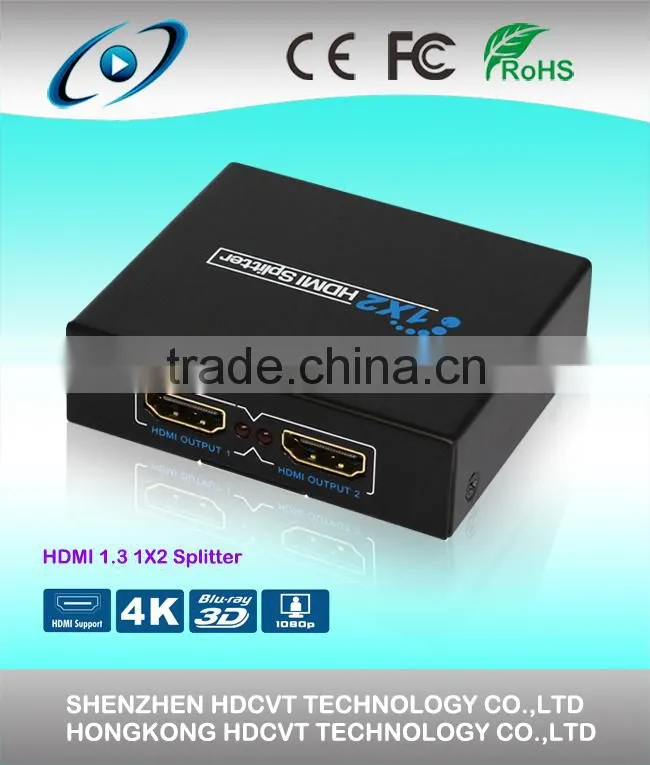

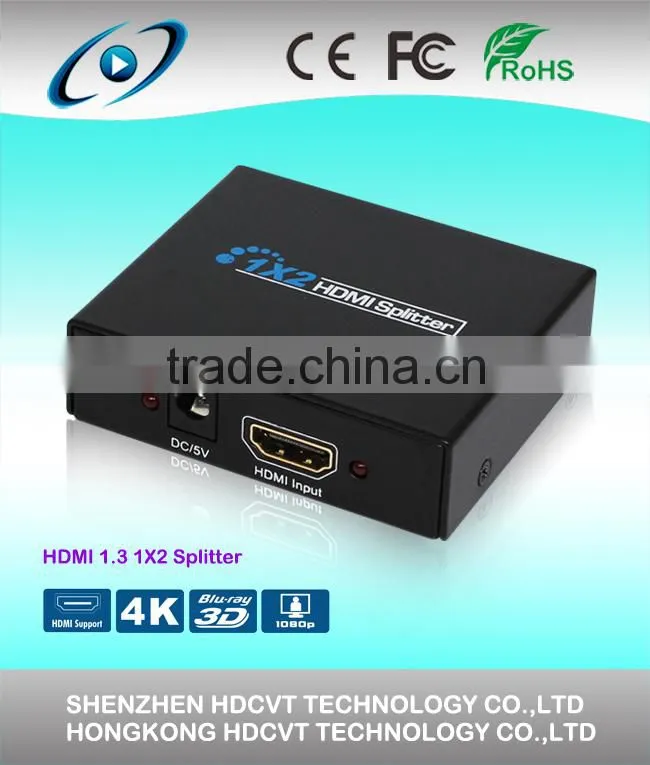

Product Picture
Packaging: Colors box package in export carton box.
53*40*30CM
50PCS/CNT
Shipping: DHL,UPS,FEDEX,Air/Sea freight
1: Sample is available
2: OEM service
3: Best after-sell service
4: warranty period: one year
Our company attach great importance to R&D, production, marketing and sales services. For many years, high quality and sincere services have won us more and more trust and support among customers from all over the world. We have built long-term, strategic and cooperative partnership with many famous enterprises.
If you have any questions, pls feel free to contact.
