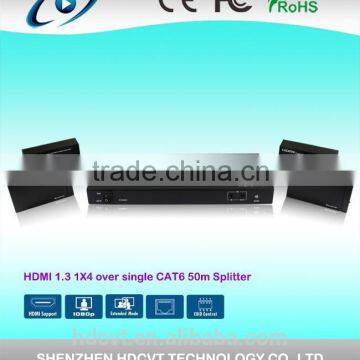

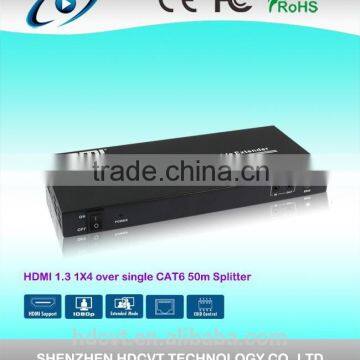

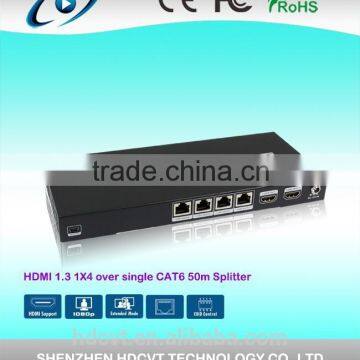

Good quality HDMI 1 x 4 over single CAT6 50m splitter

LPCM7.1CH  HDMI splitter

I.  Introduction

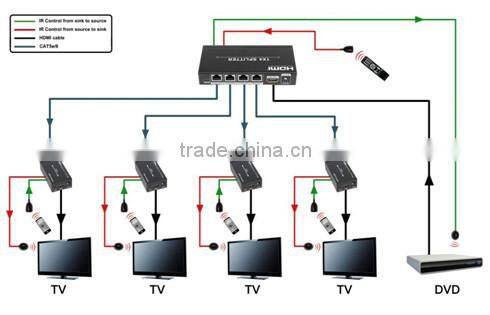

The Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display. It is designed to convert the HDMI signal and transmit by Internet cable. It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the Sink side which is 50 meters outside, also you can control the Sink in the Source side which is 50 meters outside using the Splitter.

II.  Features

1. 1.      Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0.
2. 2.      Full HD support: 1080p@60Hz@24 bit/pixels.
3. 3.      Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
4. 4.      Operates for TMDS clock frequencies up to 148.5MHz.
5. 5.      Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distances transmission.
6. 6.      UTP cable termination follows the standard of IEEE-568B.
7. 7.      Supports EDID control via EDID selector.
8. 8.      Transfer Bidirectional Infrared control signal together with the

HDMI signal.

III.  Package

1. 1.      HDMI Splitter ------------------------------------------------------- 1PCS
2. 2.      Receiver ------------------------------------------------------------- 4PCS
3. 3.      Wideband IR Tx ---------------------------------------------------- 4PCS
4. 4.      Wideband IR Rx ---------------------------------------------------- 4PCS
5. 5.      5V2A DC Power Supply adapter -------------------------------- 1PCS
6. 6.      5V1A DC Power Supply adapter -------------------------------- 4PCS
7. 7.      Operation Manual ------------------------------------------------- 1PCS
