Specification

Video Bandwidth                      297MHz/2.97 Gbps

Input Ports                                4 × HDMI (Female type)

Output Ports                             2 × HDMI (Female type)

Output Resolution                   480i ~1080p50/60, 4Kx2K@24/30, VGA~UXGA

HDMI Cable In                          1080p/12bits (15m)

HDMI Cable Out                       1080p/12bits (15m)

ESD Protection                         Human Body model:±8 kV (air-gap discharge)

                                                                                   ±4 kV (contact discharge)

Power Supply                           5 V/1A DC (US/EU standards, CE/FCC/UL certified)

Dimensions                              113 mm (W) × 260 mm (D) × 26 mm (H)

Weight                                       750 g

Chassis Material                      Metal

Silkscreen Color                      Black

Operating Temperature          0 °C~40 °C/ 32 °F~104 °F

Storage Temperature              −20 °C ~ 60 °C/−4 °F ~140 °F

Relative Humidity                     20~90 % RH (non-condensing)

Power Consumption                2.0 W

Operation and Fuctions

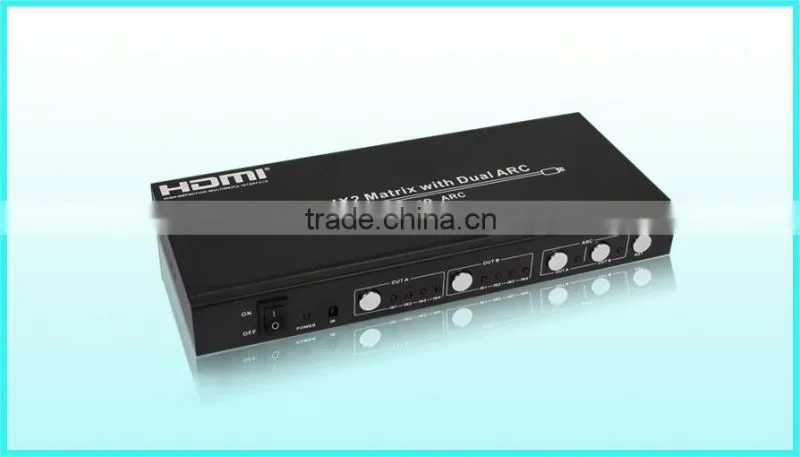

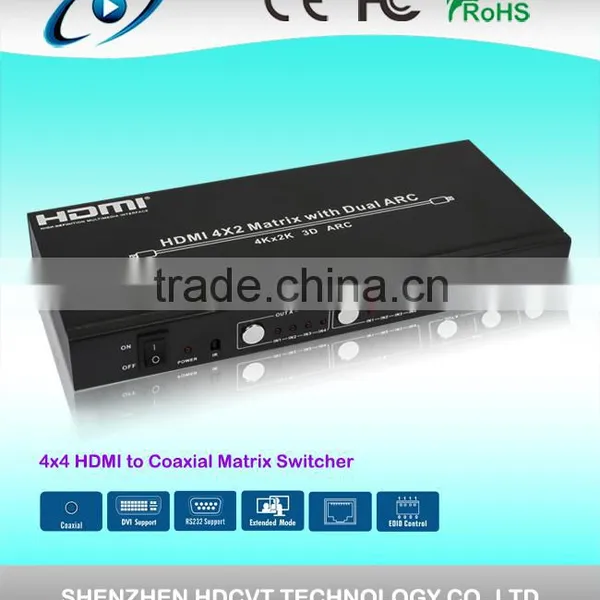

5.1 Front panel

1. ON/OFF: Power on/off switch.
2. POWER LED: This red LED illuminates when the device is connected with power supply.
3. IR : Remote control receiverwindow.
4. OUT A: These red LED illuminates when the output A channel select to the corresponding input.
5. OUT B: These red LED illuminates when the output B channel select to the corresponding input.
6. ARC: Press these button to select OUT A or OUT B Coaxial audio from source or HDTV .

ARC fuciton : If you need use ARC,your HDTV must support this fuction, When you open the ARC fuciton,the Coaxial of the matirx will output the HDTV current display content audio. Otherwise will output the matrix input source audio.

     7.  RST BUTTON: Press this button the matrix setting will recover to factory state.

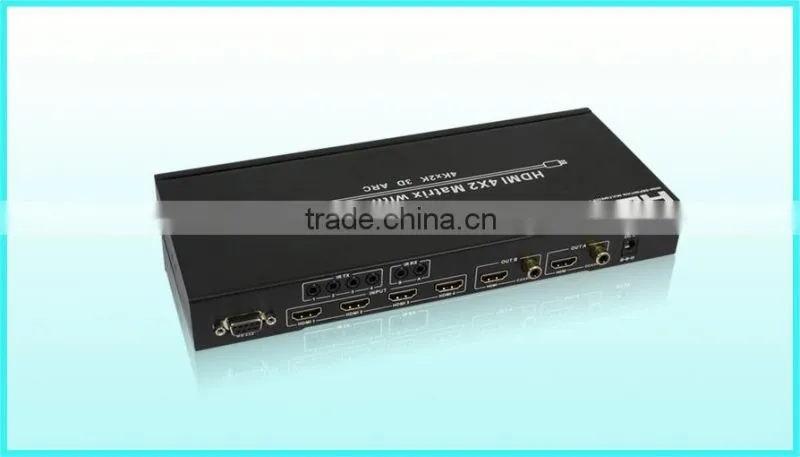

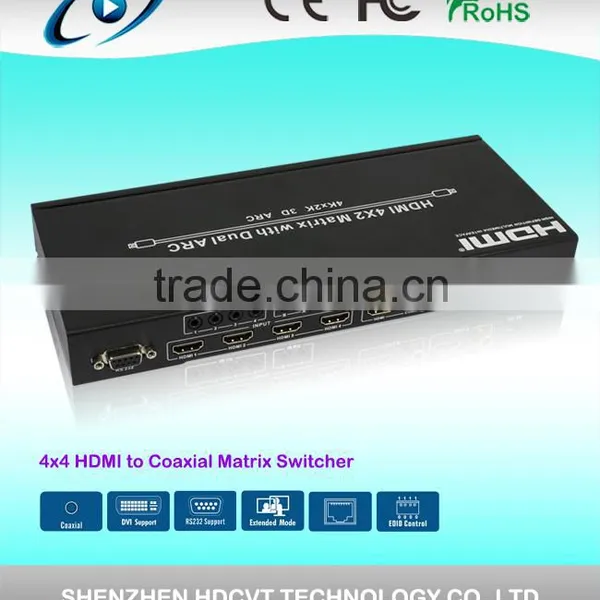

Rear panel

1.  RS232: Connect the RS232 port to the PC or notebook by RS232 Cable to control the matrix.
2.  Input: These slot is where you connect the HDMI source output from DVD, PS3,Set-top Box or Note Book.
3.  IR TX: Connect the IR Blaster cable included in the package for IR signal transmission. Pace the IR blaster in direct line-of-sight of the equipment to be controlled.
4.  IR RX: Connect to the IR Receiver for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR receiver.
5.  OUT B: The HDMI is where you connect the HDTV or monitor with HDMI cable for input source display.The Coaxial audio output is where you connect to the amplifier with coaxial cable.
6.  OUT A: The HDMI is where you connect the HDTV or monitor with HDMI cable for input source display.The Coaxial audio output is where you connect to the amplifier with coaxial cable.
7.  DC 5V: Plug the 5V1A DC power supply into the unit and connect the adaptor to AC wall outlet.

OUTPUT A: Press IN1IN2IN3IN4 button will fast switch to select input source to HDMI OUTPUT A, and the LED will indicate the corresponding input source. Press button OUTPUT A will cycle from input IN1IN2IN3IN4.

OUTPUT B: Press IN1IN2IN3IN4 button will fast switch to select input source to HDMI OUTPUT B, and the LED will indicate the corresponding input source. Press button OUTPUT B will cycle from input IN1IN2IN3IN4.

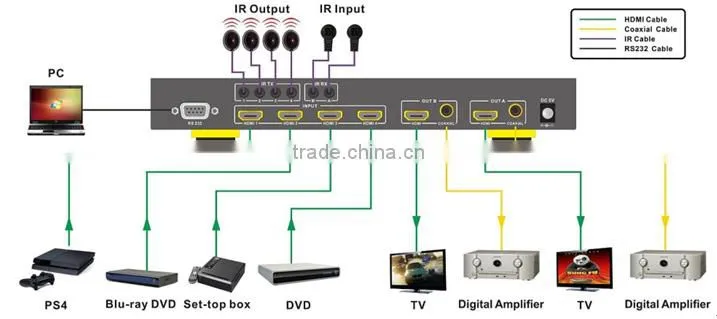

Connection Diagram
