New Style Extruding Equipment for Powder Coating Machine :
Main Characteristic:
1. Hand hydraulic pressure barrel; Easy to change color and cleaning
2. Three zone PID temperature control accuracy ±1°C
3. Cooling water system inside the screw
4. Separately cooling water system in barrel No. 3 zone to avoid block water passage
5. Gear box equipped with lubricating system
6. Gear box equipped with water cooling system

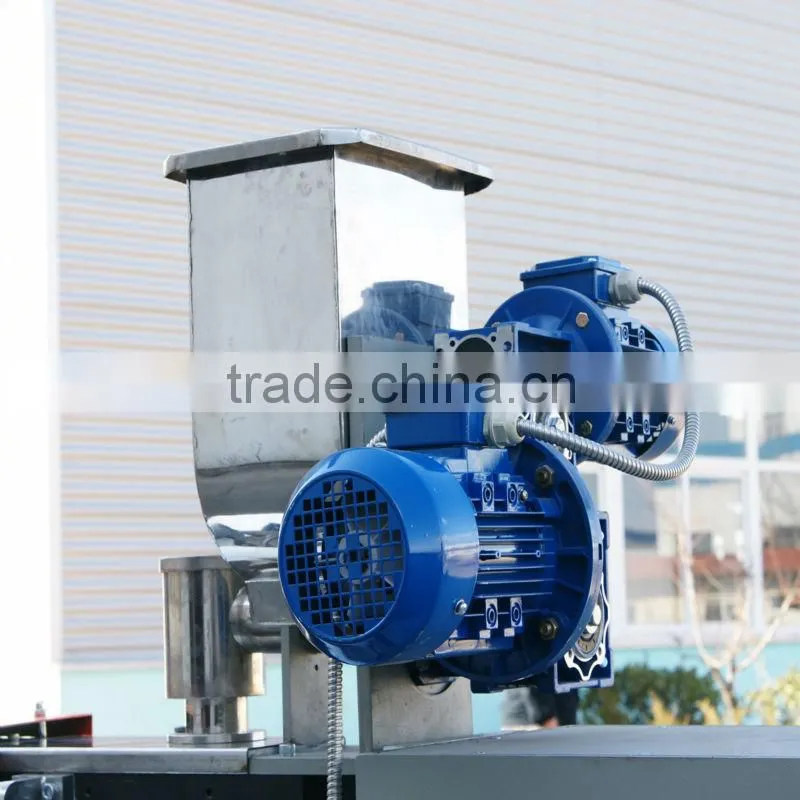

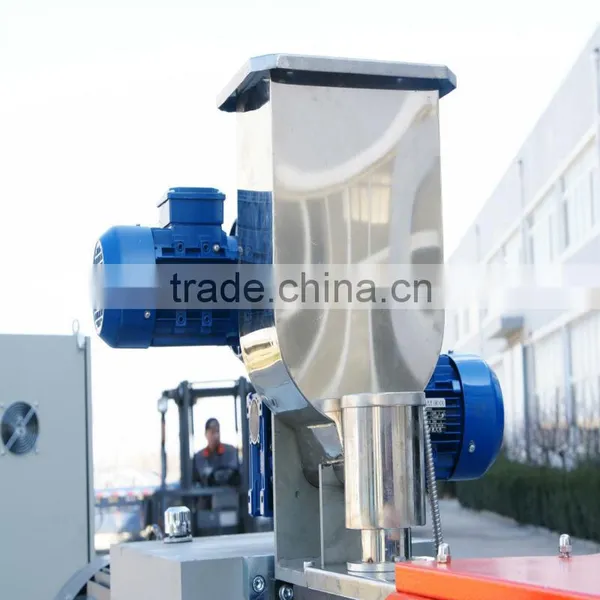

7. Feeding area has permanent magnetic metal remover
8. Extruder noise lower than ≤80dB
Main Technical Characteristic:
1.The changing during moving gap is zero
2. High disperse efficiency
3. Self-cleaning system
4. Double temperature PID control, control accuracy ±2°C
5. Barrel equipped with soft water recycle automatic cooling system
6. Low noise and high secure gear box system
7. Equipped with permanent magnetic iron remover
8. Low material consumption, electricity and material rate kg/h.kw is higher
Main Technical Parameter:
Model |
SFJ-46A or B |
SFJ-55A or G |
SFJ-64A or G |
SFJ-80G |
Screw diameter(mm) |
46 |
55 |
64 |
80 |
Length-diameter(L/D) |
14:1 |
16:1 |
15:1 |
15:1 |
Capacity(Kg/H) |
100~180 or 100~280 |
300~400 |
400~500 |
600~800 |
Screw motor power(kw) |
15, 6 or 22, 4 |
30 |
45 |
55 |
Feeding motor power(kw) |
0.37 |
0.37 |
0.55 |
0.55 |
Heating power(kw) |
0.75*4 |
0.75*6 |
1*5+0.75*1 |
2*5+1.5*1 |
Mixing motor power(kw) |
- |
0.37 |
0.37 |
0.37 |
Screw speed(rpm) |
0~500/0~800 |
0~500 |
0~500 |
0~500 |
Temperature control system |
±2°C Double temperature PID auto-control. Accuracy ±2 |
|||
Speed adjust system |
Adjustable speed by means of frequency inverter |
|||
Feeding system |
Variable by means of frequency inverter |
|||
Cooling system |
Water cooled |
|||
Equipped with |
Screw feeding |
|||
Permanent strong-magnetic device | ||||
Overall dimension(mm) |
|
2650*900*1900 |
2900*900*2000 |
3600*950*2260 |

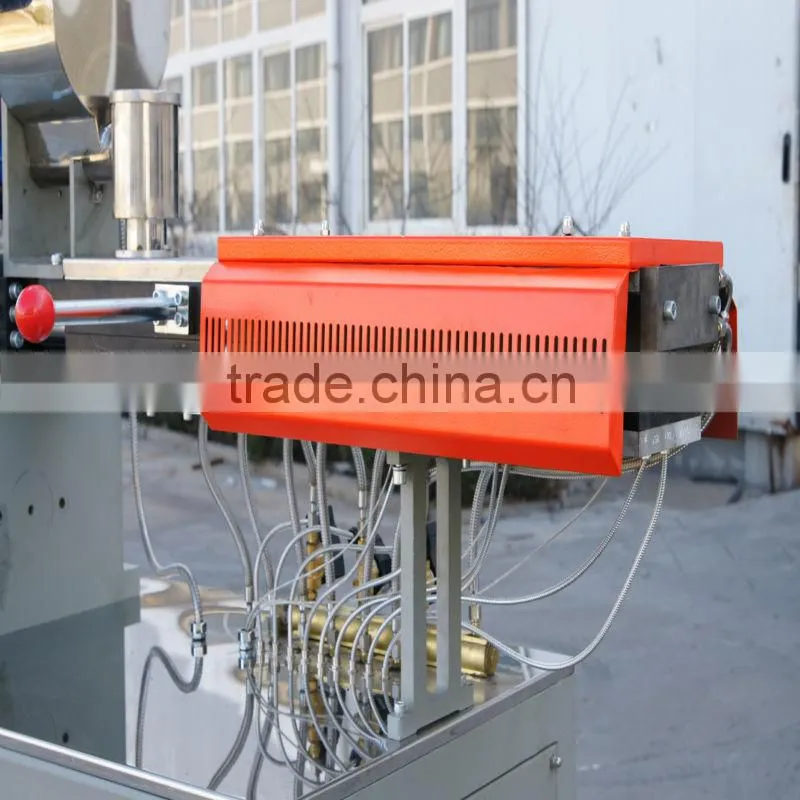

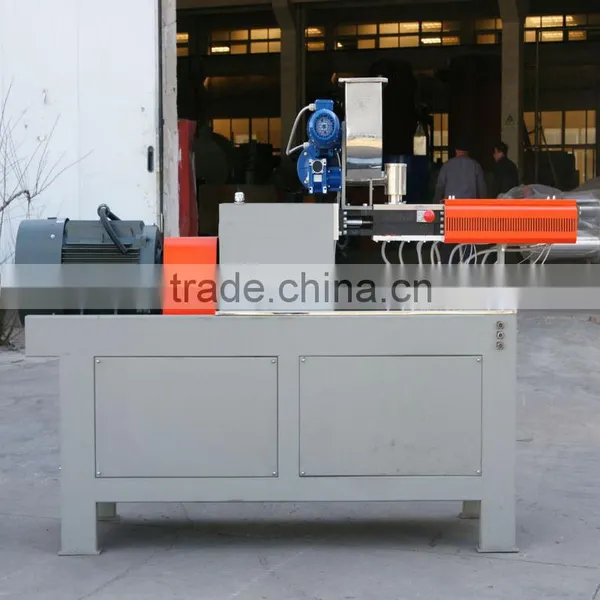

Machine PIC:

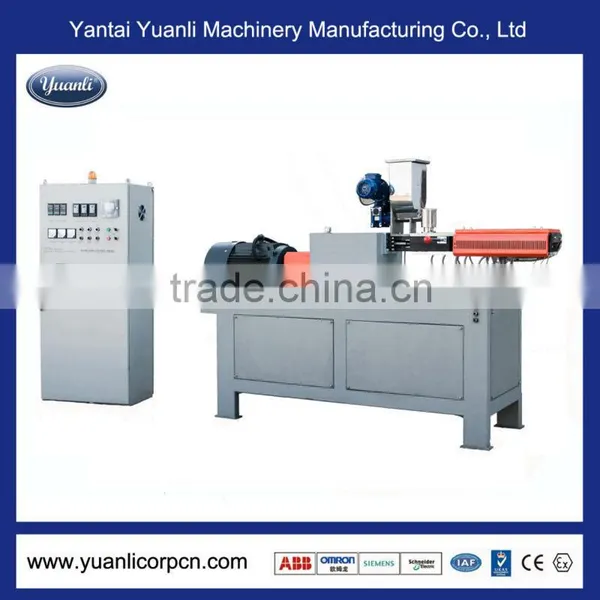

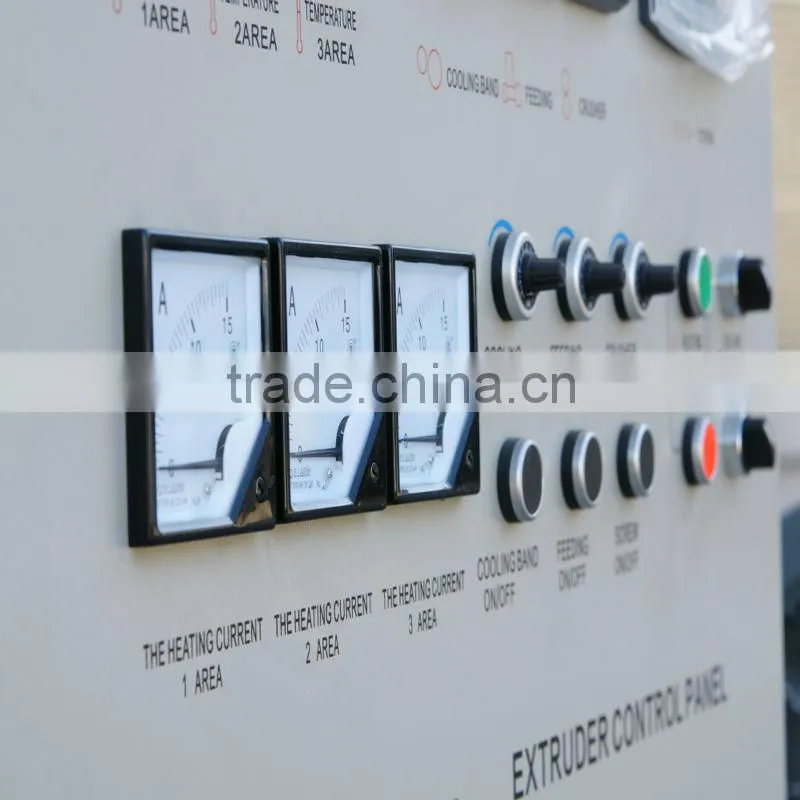

extruder with electric cabinet
Machine Parts:
Siemens Motor
We make machining part in our own facotry to control the quality of the machine parts to make sure the machine's quality

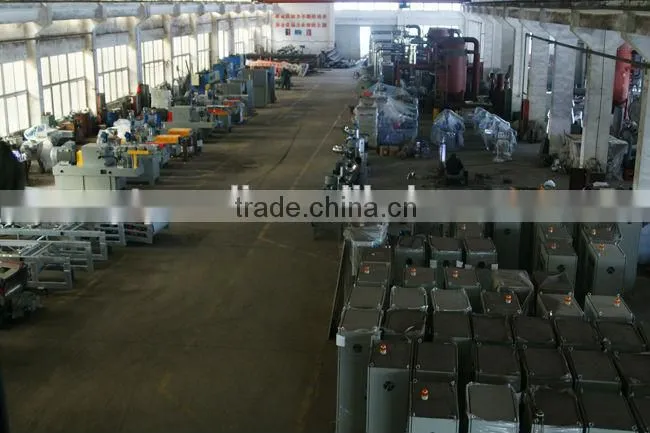

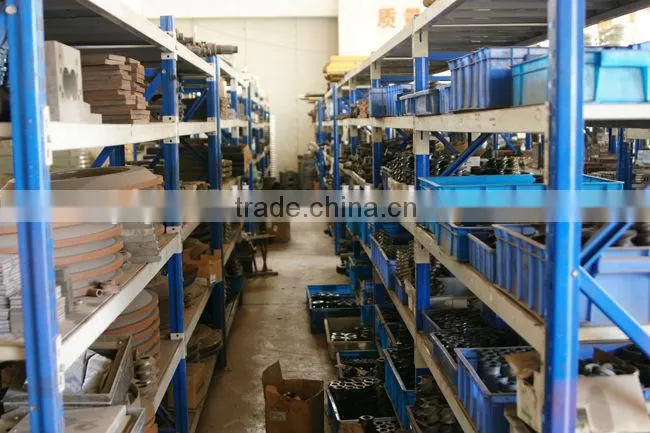

Worshop View:
Office Pic:
Our advantages:
1. Formulation Provided
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
2. Manufacturing Technique
We make machining part in our own factory to control the quality of the machine parts to make sure the machine's quality. We have a presence in over 15 countries and are a technology driven organization with an extensive staff of highly experienced R&D and technical service personnel in Asia, Europe and the Americas.
3. After-sale Service
We can provide a variety of services to our customers, such as our engineer abroad installation service, technical support online service, on-site training service, long-term maintenance service, spare parts replacement & repair service.
Wlecome to visit Yuanli Manufacturing Company,tks!!
