Excellent Performance Grinder Machine for Powder Coating
MF-30S Grinding System
Application:
This series of grinding system is classified as ACM grinding machine, which is widely used in powder coating production line. It can also be used in other industries such as pharmacy, pigment, food, chemicals and ceramic.
Main characteristic:
1. Openable main grinding case for easy access to inside parts for cleaning and maintenance
2. Openable top cap by means of electromotor for easy access to internal parts of cleaning
3. Perfect particle size distribution
4. All parts to be in contact with powder coating made from stainless steel
5. Equipped with famous brand electrical parts
6. Equipped with tracking suspended sieve
7. Classifier never stick with powder
8. Two kinds of pulse time setting
Main Technical Parameter:
Model |
MF-30S |
Main motor power(kw) |
22 |
Pin disk speed(rpm) |
4500 |
Classifier motor power(kw) |
3 |
Classifier speed(kw) |
0~2800 |
Feeding motor power(kw) |
0.55 |
Grinder cover motor power(kw) |
0.18 |
Discharge motor power(kw) |
0.37 |
Rotary sieve motor power(kw) |
1.5 |
Blower motor power(kw) |
22 |
Blower flow rate(m3/min) |
70 |
Seperating efficiency |
≥98% |
Particle size MESH |
120~350 |
Capacity(kg/h) |
400~500 |

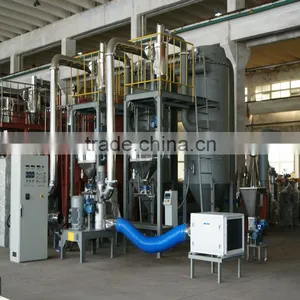

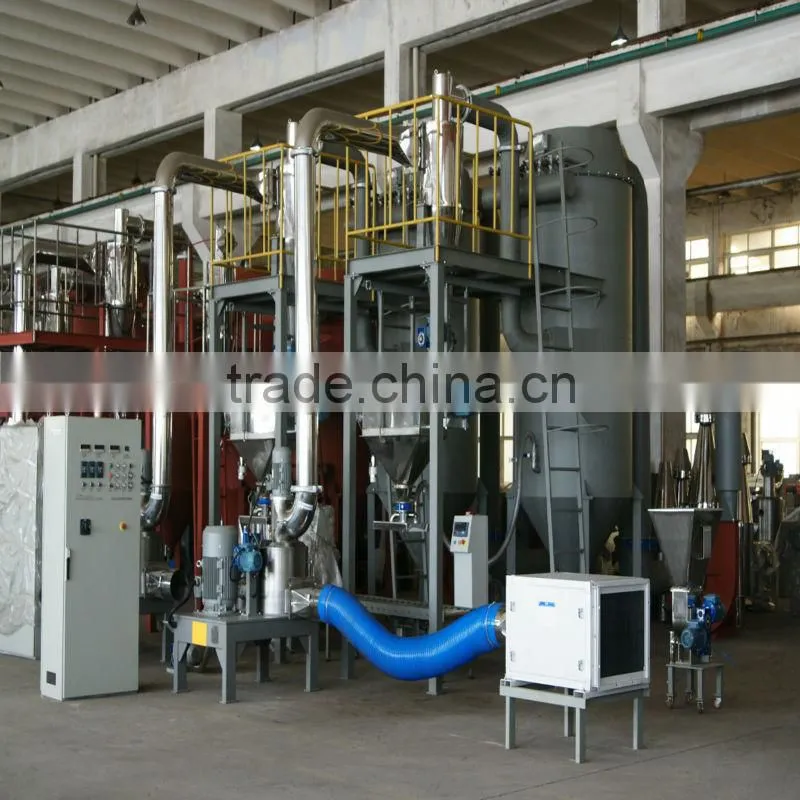

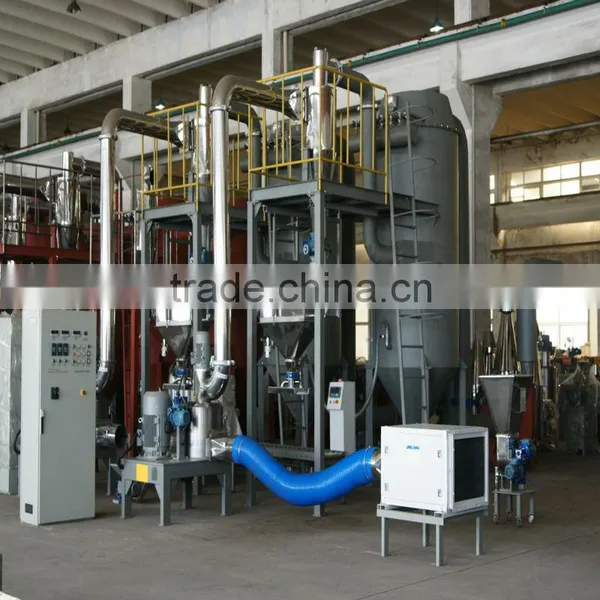

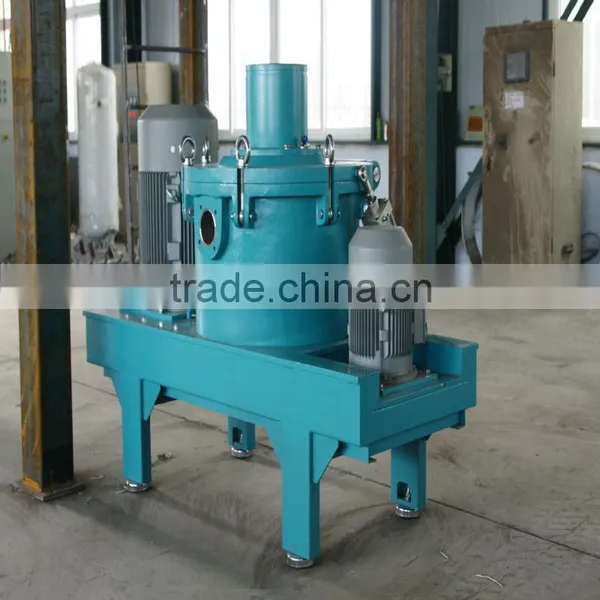

Machine Pic:

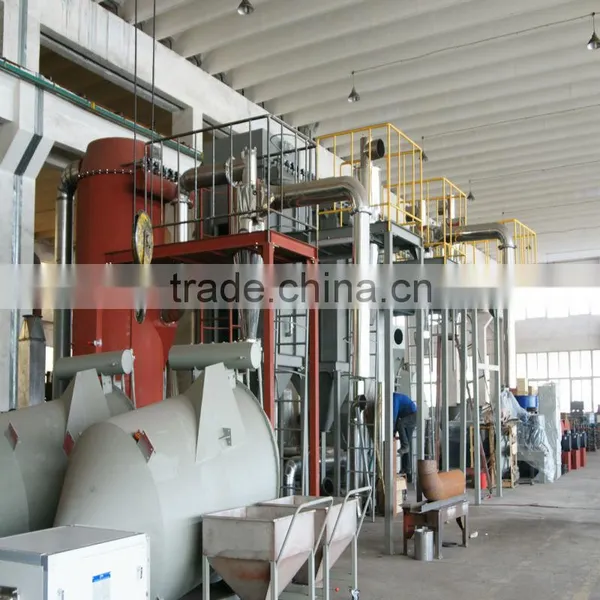

Workshop:
About Company:
We exported the first powder coating production line to United Kingdom in 1989. Since then, our equipments opened the international market. We cooperate with Italy SBS Company from 2000, the quality of our machines are in accord with European standard. We achieved perfect image, and trust from foreign customers because of our excellent quality of equipments and superior customer services.
We are not only provide installation services to customer, but also provide our customer good formulation to help customer produce best quality powder coating.
Our advantages:
1. Formulation Provided
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
2. Manufacturing Technique
We make machining part in our own factory to control the quality of the machine parts to make sure the machine's quality. We have a presence in over 15 countries and are a technology driven organization with an extensive staff of highly experienced R&D and technical service personnel in Asia, Europe and the Americas.
3. After-sale Service
We can provide a variety of services to our customers, such as turkey project, our engineer abroad installation service, technical support online service, on-site training service, long-term maintenance service, spare parts replacement & repair service.
We sincerely invite you to visit our factory, thx!
