Favorable Price Stainless Steel Air Cooling System for Electrostatic Powder Coating line
JFY-510N Air-cooled cooling band series
Application:
Generally is used in powder coating production line to cool the extruded material.
An stainless steel caterpallar along with cold air solidfy melted material and lead them to crusher
at the end of the cooling band.
Flakes can be adjusted from 1-3mm in thickness and 5-10mm in width.
Features:
1. Cooling roll has been designed specially to max. cool efficiency
2. Hard chrome plated cooling roll
3. Cooling roll and crusher equipped with overloaded alarm and protection system
4. Chain anti distortion system
5. Reverse motion possibility for emergency case
Main Technical Parameter:
Model |
JFY-510N |
Capacity(kg/h) |
400~500 |
Caterpillar length(mm) |
5000 |
Roller length(mm) |
1000 |
Roller diameter(mm) |
Φ273 |
Roller diameter(mm) |
Φ168 |
Drive power(kw) |
1.1 |
Crusher drive |
0.37 |
Fan power |
65W×8 |
Cooling system |
Air-cooled |
Variable speed |
Adjustable speed by means of frequency inverter |
Overall dimension(mm) |
5500*1400*1400 |

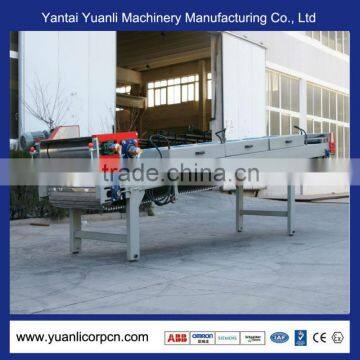

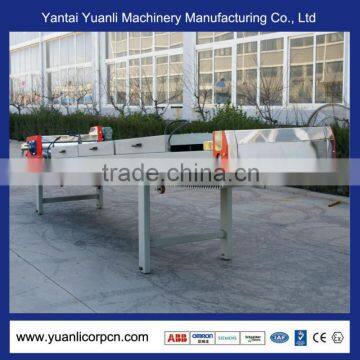

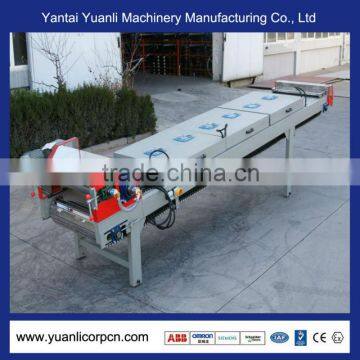

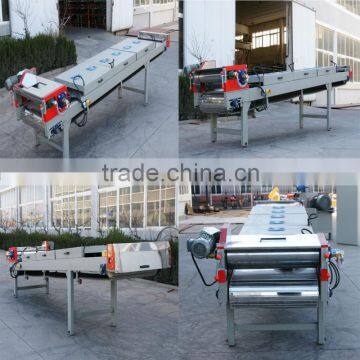

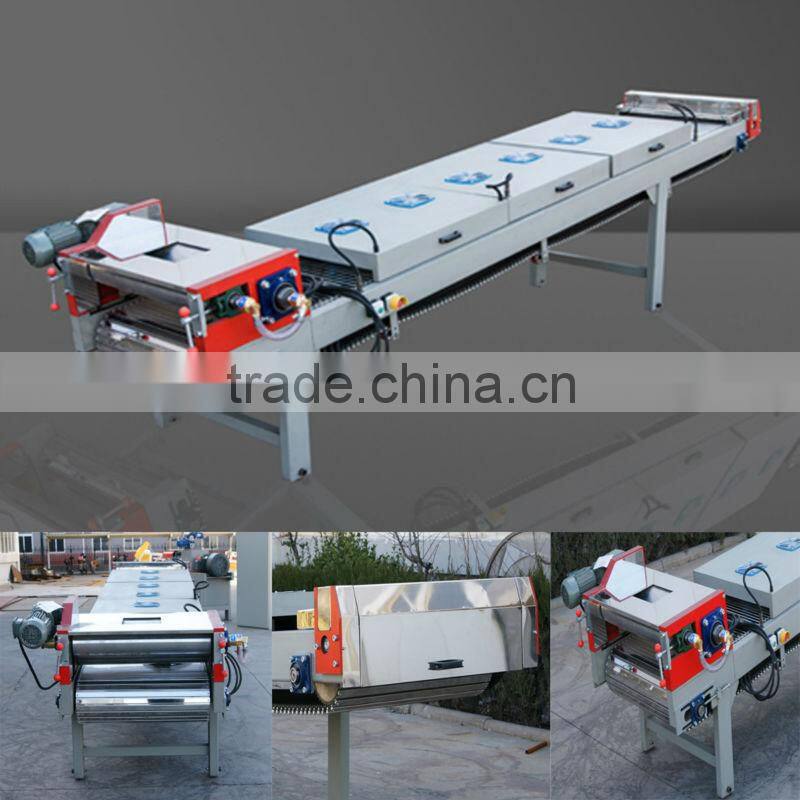

Machine Display:

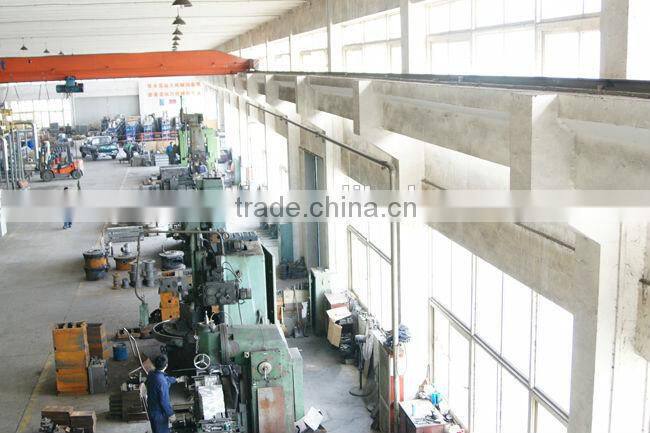

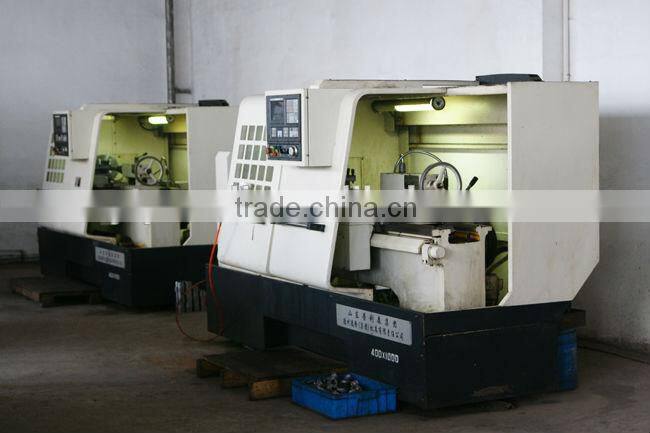

Our Workshop:
Introduction of Yuanli:
Yantai Yuanli Machinery Manufacturing Co., Ltd. with more than 27 years experiments, offer wide range of services in powder coating field from A to Z including know-how, technology, machinery, raw material, technical support.
Our product has been supplied all around China and exported to international market like, Italy, Iran, Turkey, India, Thailand, Egypt, Malaysia, Czech, Poland, Russia, USA.
Our advantages:
1. Formulation Provided
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
2. Manufacturing Technique
We make machining part in our own factory to control the quality of the machine parts to make sure the machine's quality. We have a presence in over 15 countries and are a technology driven organization with an extensive staff of highly experienced R&D and technical service personnel in Asia, Europe and the Americas.
3. After-sale Service
We can provide a variety of services to our customers, such as turkey project, our engineer abroad installation service, technical support online service, on-site training service, long-term maintenance service, spare parts replacement & repair service.
Our certificate:
CE Certificate
CE Certificate authorized by APRAGAZ Inspecting Authority from Belgium
Sira Certification Service
The Quality Management System of Yantai Yuanli Machinery Manufacturing Co., Ltd. has been assessed by Sira Certification Service and found to comply with GB/T19001-2008 idt ISO9001:2008 for the Design, manufacturer and sales of electrostatic power production equipment.
