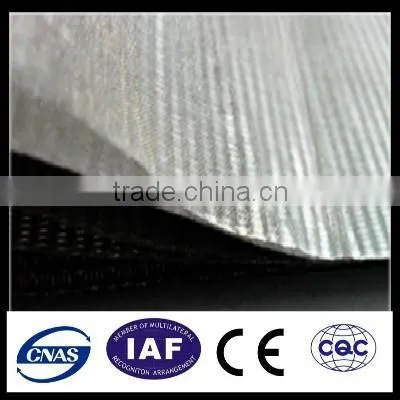

Five layer sintered wire mesh is a widely used new type filter media in standard structure which is composed of five layers

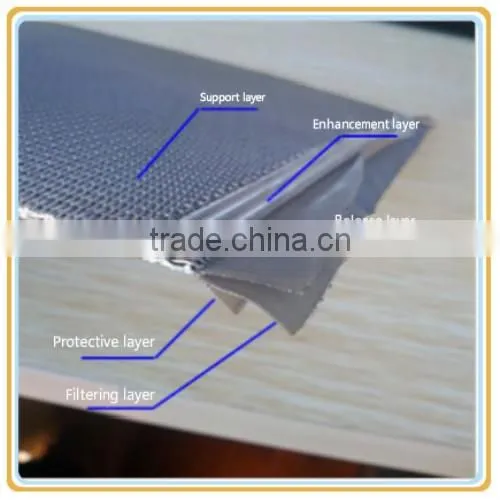

of wire mesh stacked orderly and sintered in a vacuum oven. The five layers are protection layer, control layer, dispersion
layer and two support layers. It has advantages of stable filter precision, high strength and easy backwashing etc.
Good strength and rigidity: having good mechanical strength and resistance of compression. Convenient to be machinedwelded and assembled.
High precision and stable performance: The fact that the filter layer is at the second layer makes itself well protected andensures consistent and homogeneous filter precision. High durability can be maintained persistently during operation.
Corrosion resistance and heat resistance: The material of stainless steel 316L has remarkable features of corrosion resistance and heat resistance. The maintainable temperature is ranged from -200℃ to 480℃ and it is still active under a condition of acid or alkali.
Easy to clean: With an excellent backwashing construction, it can be reused numerously for longer service life
Type |
Theoretical precision |
Air permeability |
Bubble pressure |
zsw1 |
1 |
|
5300-6000 |
zsw2 |
2 |
(1-6)×10-4 |
4300-5000 |
zsw5 |
5 |
(6-10)×10-4 |
3000-3700 |
zsw10 |
10 |
(6-10)×10-4 |
2700-3300 |
zsw15 |
15 |
(1-6)×10-3 |
2000-2600 |
zsw20 |
20 |
(1-6)×10-3 |
1800-2300 |
zsw25 |
25 |
(6-10)×10-3 |
1400-1900 |
zsw30 |
30 |
(6-10)×10-3 |
1200-1700 |
zsw40 |
40 |
(1-6)×10-2 |
1000-1500 |
zsw50 |
50 |
(1-6)×10-2 |
900-1200 |
zsw70 |
70 |
(6-10)×10-2 |
700-1100 |
zsw100 |
100 |
≥5×10-2 |
650-1000 |
zsw150 |
150 |
≥5×10-2 |
|
zsw200 |
200 |
≥8×10-2 |
|
Remark:
Bubble point pressure in compliance with national standard ISO4003
Air permeability in compliance with international standard ISO4022
Measurement of air permeability is accomplished under pressure of 1000pa, media is air
Data of permeability for reference only, order placement is subject to inspection certificate
Note: We can produce a variety of sizes of products according to different customer needs.
1,Standard export packaging in carrton or wooden box
2,Special requirements can be made
Hebei HangLi Metal products CO., LTD was establish in 1995, locked in the hometown of wire mesh, and is one of the leading manufacturers of Metal Wire Mesh products in Hebei province of China.
Our company has engaged in production and marking in oil vibrating screen, Vapor-liquid filter, sintered mesh, sintering carpet, wedge wire screen, stainless steel wire mesh and the other related products. We have our own import and export rights, and we have already passed the ISO 9001:2000 certificate and CE certificate.
Our customers
Q:What information should i provide, if i want to lowest quotation? |
A:The specification of products, such as material,mesh number,wire diameter,hole size,length×width and quantity. |
Q:What is the payment? |
A:We usually use the T/T or L/C. |
Q:Could you provide free sample? |
A:Yes,we can provide free sample. |
Q:Are you a manufacturer? |
A:Yes,we have specialized in this field for about 10 years. |
