1.LR2 series thermal overload relay2.thermal thermal relay
emecanique thermal overload relays

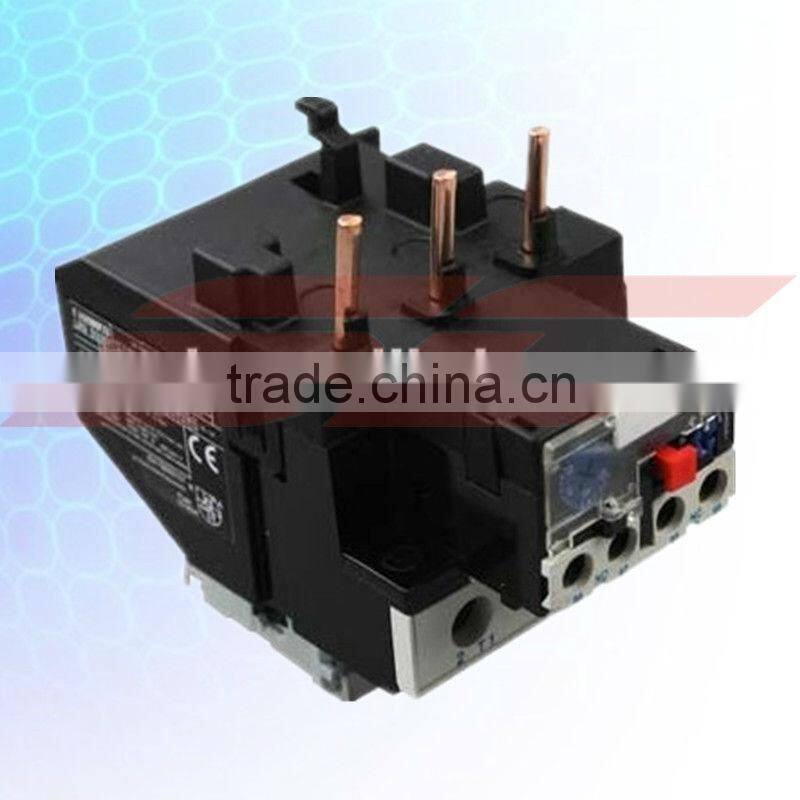

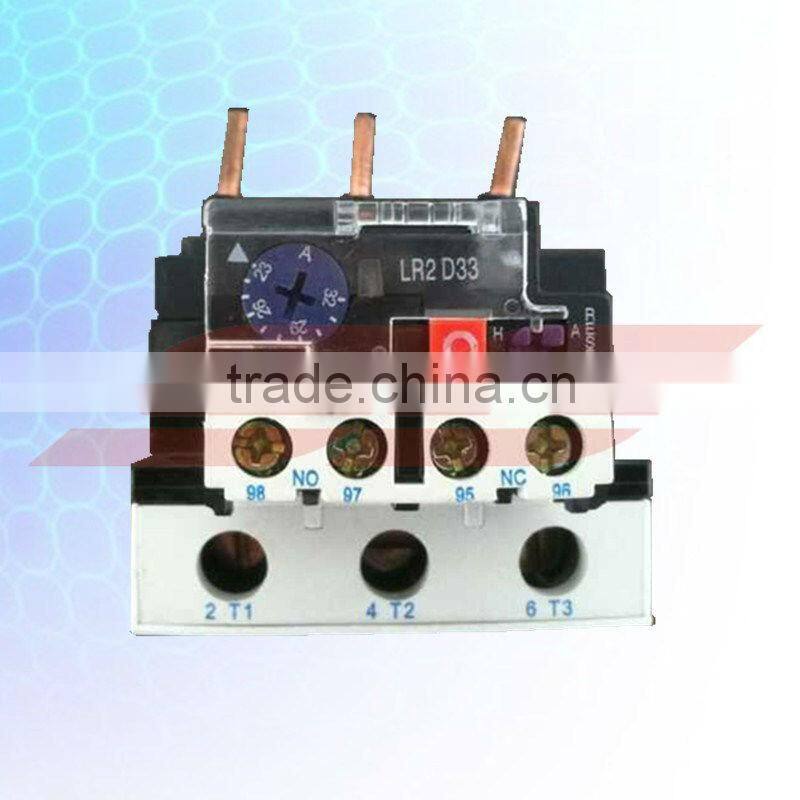

LR2 D13 thermal relay
APPLICATION
This series of Thermal overload relay,overload relay,thermal relay,relay can be used in the circuit of 50or60HZ, rated insulation voltage 660V, rated current 0.1-96A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be plugged in BAC9 series AC contactor.It is the most advanced thermal relay in the nineties in the world.
CHARACTERISTICS
A. Fundamental parameter of the main circuit: (a). Rated insulation voltage 660V (b). Rated working current 25, 36, 93A separately (c). The regulator seal of rated setting current and setting. (d). Current of the thermal component (see Table below) B. Auxiliary circuit (a). There is one pair of NO/and N/C contact with electric insulation. (b). Rated insulation voltage 500V (c). Rated frequency 50-60HZ.
SPECIFICATIONS
Type | Rated working current of thermal relay | Thermal component | ||
Rated current(A) | Rated setting range (A) | |||
LR2-D13 | 25 | BAR2-D1301 | 0.16 | 0.10-0.16 |
1302 | 0.25 | 0.16-0.25 | ||
1303 | 0.40 | 0.25-0.40 | ||
1304 | 0.63 | 0.40-6.3 | ||
1305 | 1.0 | 0.63-1.0 | ||
1306 | 1.6 | 1.0-1.6 | ||
13X6 | 2.0 | 1.25-2.0 | ||
1307 | 2.5 | 1.6-2.5 | ||
1308 | 4.0 | 2.5-4.0 | ||
1310 | 6.0 | 4.0-6.0 | ||
1312 | 8.0 | 5.5-8.0 | ||
1314 | 10.0 | 7.0-10.0 | ||
1316 | 13.0 | 9.0-13.0 | ||
1321 | 18.0 | 12.0-18.0 | ||
1322 | 25.0 | 17.0-25.0 | ||
LR2-D23 | 36 | LR2-D2353 | 32 | 23.0- 32.0 |
2355 | 36 | 28.0-36.0 | ||
LR2-D33 | 93 | LR2-D 3353 | 32 | 23.0-32.0 |
3355 | 40 | 30.0-40.0 | ||
3357 | 50 | 37.0-50.0 | ||
3359 | 65 | 48.0-65.0 | ||
3361 | 70 | 55.0-70.0 | ||
3363 | 80 | 63.0-80.0 | ||
3365 | 93 | 80. | ||
