Condition New
Place of Origin Hubei, China
Brand Name XL
Model Number CTNM15
Production Capacity 1000kg/h
Voltage 380V
Power(W) 24KW
Weight 1500kg
Dimension(L*W*H) 2600*1700*3100(mm)
Certification ISO09001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Unique design, good stability, easy disassembly,easy maintain

CTNM15 combination type of complete sets of rice milling machine

CTNM15 is a multipurpose rice mill, it can clean up the impurity, stone, rice milling, with good brown rice separation effect, easy operation, fast production, rice quality were shining brilliantly, paddy separating sieve empty material fast, no residue, etc, belong to the most advanced small screen gravity type hybrid rice mill on the market at present, and is also as the first choice for small farmers.

The main technical parameters :

Output

(kg/h)

Support power

(KW)

 Speed of main spindle

(r/min)

Weight

(kg)

 External dimension

(L×W×H)(mm)

1000

24

1350

1200

2500×2000×3000



kinds of paddy separator ,hammer mill ,grain dryer and rice mill



MGCZ series double-body gravity paddy separator

Scope of application:

MGCZ series double-body gravity paddy separator is a new type of paddy separating equipment in our company research and development, this machine mainly is to use the proportion of rice and brown rice, special sieve plate through the chute, separation is a mixture of rice and brown rice to rice and brown rice, improve the rate of whole rice for rice milling processing, improve enterprise economic benefits, is one of the key equipment in rice milling process.

Main features:

Use double-body structure, smooth operation, good balance, stable performance. Compact design, low noise, low consumption, the unit screen area is large, high output. Highly automatic, operate convenient and reliable.

Strong separation capability, wide applicable scope, suitable for mixed breed paddy content and high water paddy separation.

 Durable, reliable ,easy maintenance.

Main Technical Parameters:



model

output

(t/h)

power

(KW)

speed of main spindle

(r/min)

Suction air volume

(m/h)

weight

(kg)

External dimension

(L×W×H)(mm)

MGCZ60×20×2

6.5-7.5

3

300

170×2

1350

2270*1850*2120

MGCZ60×15×2

4.5-7.5

2.2

300

160×2

1150

2220*1750*1970

MGCZ46×20×2

5.5-6.5

2.2

300

150×2

1100

1940*1760*2050

MGCZ46×15×2

3.5-4.5

2.2

300

150×2

1100

1700*1550*1780

MGCZ46×12×2

2.5-3.2

1.5

300

140×2

900

1650*1550*1700



kinds of paddy separator ,hammer mill ,grain dryer and rice mill

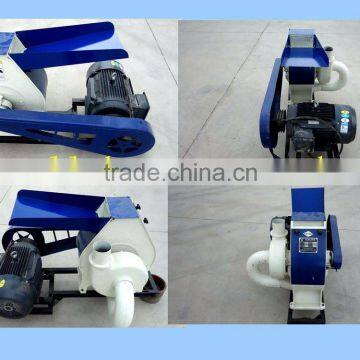

SFSP drop-shaped types of hammer mill (small type)



The series equipment is primarily designed for the various primary particle size is greater than the size of the raw material (such as corn, cereal, rice husk, straw, etc) for grinding processing, strong adaptability of its raw material, high yield, stable, secure, reliable, easy maintenance and simple features, widely used in cereals, foodstuffs, chemical and other processing industries.



The main technical parameters :





Model

output

(kg/h)

power

(KW)

speed

(r/min)

rotor diameter

(mm)

weight

(kg)

dimension (L×W×H)(mm)

SFSP40×18

300

11

4000

400

100

760×530×1000







 kinds of paddy separator ,hammer mill ,grain dryer and rice mill







SFSP drop-shaped types of hammer mill (medium and large type)



The series equipment is primarily designed for the various primary particle size is greater than the size of the raw material (such as corn, cereal, rice husk, straw, etc) for grinding processing, strong adaptability of its raw material, high yield, stable, secure, reliable, easy maintenance and simple features, widely used in cereals, foodstuffs, chemical and other processing industries.



Main Technical Parameters:





Model

husk

Output

(t/h)

Support power

(KW)

main spindle speed

(r/min)

rotor diameter

(mm)

Weight

(kg)

External dimension

(L×W×H)(mm)

SFSP56×30

0.5

22

2900

560

405

1363×860×1033

SFSP56×36

0.7

30

2900

560

435

1524×860×1033

SFSP56×40

0.8

37

2900

560

440

1564×860×1033

SFSP56×45

1.1

45

2900

560

460

1630×860×1033

SFSP56×50

1.3

45

2900

600

630

1750×873×1148

SFSP56×60

1.8

55

2900

600

675

2000×873×1148

SFSP56×70

2.5

75

2900

600

730

2160×873×1148

SFSP56×80

3.5

90

2900

630

960

2245×980×1245

SFSP56×90

4

110

2900

630

1045

2525×980×1245

SFSP56×100

4.5

110

2900

630

1110

2660×980×1245





Company Information

  Hubei Xianliang Machinery Co.,Ltd is located at the the beautiful and rich Jianghan Plain,the hometown of Chinese gymnastics(Hometown of Gymnastics prince——Li Xiaoshuang,Li Dashuang,Yang Wei,Zheng Lihui).——Hubei Xiantao,and is one of the professional backbone enterprises domestically which produces the grain processing machinery.

      The company has been more than ten years since it has been created,now it has fixed assets RMB 50 million ,260 employees,floor area 50000m2,and annual production and sales amount over RMB 100 million.

       Now the company is mainly manufacures XGI type and CTNM18 series combined rice mill which have several patents.These series of products are agricultural machinery products supported and popularized by the state emphatically.Besides popular with many domestic grain producing region,the products also selling to foreign countries,such as Myanmar,Thailand, Vietnam and Peru.The company is a grain machinery processing enterprise with perfect products quality,powerful technical strength and complete production equipment!
