Specifications
advantages : compact structure, simple operation ,convenient for maintenance ,easy transportion.TQLQ45 stone cleaning machine overview:
The machine is a kind of cleaning equipment for cleaning foreign matters and dust with larger gravity than that of corns. During working, dust and light foreign matters will be absorbed by the fan. For millet and foreign matters with larger gravity than that of corns, as they have different gravity and suspending speed, under the fan’s function of inhale air, upper airflow will be generated on the scale-typed sieve plate of removing stone; due to the function of airflow, millets will be suspended and stones will be submerged on the surface of sieve; and under the function of sieve plate with directional deflection and advance and return movement, stones will move upwards and be removed from the outlet of stones; and grains will move downwards under the function of self-gravity and flows from the fee outlet.
Main Technical Parameters of each combined part:
Type |
TQLQ45 |
TQLQ50 |
TQLQ52 |
|
Power(kW) |
3 |
3 |
3 |
|
Capacity(t/h) |
1 |
1.2 |
1.5 |
|
Amount of inhale air (m3/h) |
2000 |
2000 |
2000 |
|
Amplitude of vibration (mm) |
5 |
5 |
5 |
|
Vibration frequency (r/min) |
400 |
400 |
400 |
|
|
Angle of Cleaning Sieve( °) |
sieve of big foreign matters |
1.5 |
1.5 |
1.5 |
|
sieve of small foreign matters |
4 |
4 |
4 |
|
Angle of Stoner Sieve ( °) |
12-14 |
12-14 |
12-14 |
|
External Dimension (mm) (L×W×H) |
1240×1270×2700 |
1240×1280×2700 |
1240×1300×2700 |
|
Main Technical Parameters:
|
Output (kg/h) |
Support power (kw) |
|
Speed of main spindle (r/min) |
Weight (kg) |
External dimension (L×W×H)(mm) |
1200 |
3 |
|
420 |
300 |
1240×1270×2700 |
Power supply: 380volts/50Hz
Specifications:
*compact construction, beautiful appearance
*easy to operate
*steady performance
*national patents
Product pictures:

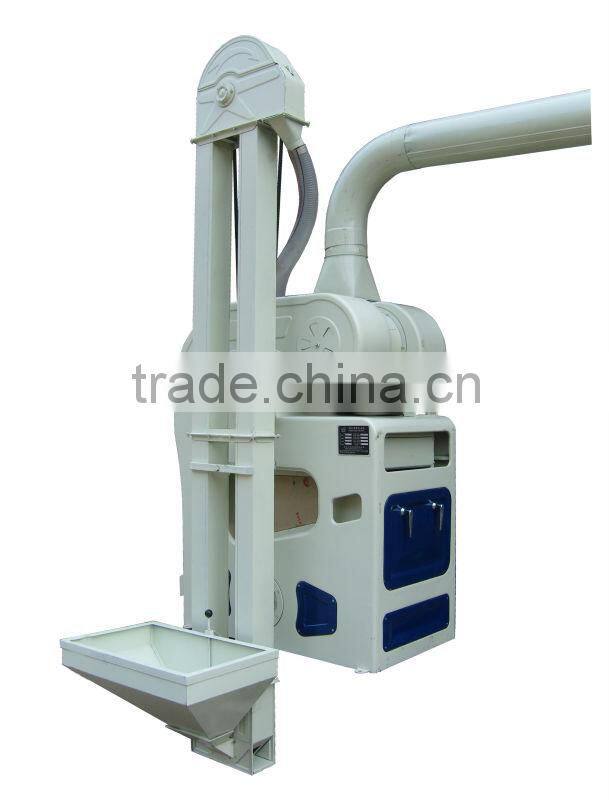

combined cleaning stoner
MGCZ70×5 gravity paddy separator
In wooden package
Engineers available to service machinery overseas
Hubei Xianliang Machinery Co.,Ltd is located at the the beautiful and rich Jianghan Plain,the hometown of Chinese gymnastics(Hometown of Gymnastics prince——Li Xiaoshuang,Li Dashuang,Yang Wei,Zheng Lihui).——Hubei Xiantao,and is one of the professional backbone enterprises domestically which produces the grain processing machinery.
The company has been more than ten years since it has been created,now it has fixed assets RMB 50 million ,260 employees,floor area 50000m2,and annual production and sales amount over RMB 100 million.
Now the company is mainly manufacures XGI type and CTNM18 series combined rice mill which have several patents.These series of products are agricultural machinery products supported and popularized by the state emphatically.Besides popular with many domestic grain producing region,the products also selling to foreign countries,such as Myanmar,Thailand, Vietnam and Peru.The company is a grain machinery processing enterprise with perfect products quality,powerful technical strength and complete production equipment!
www.hbxljx.en.china.cn
We welcome your inquires. Please feel free to contact us!
