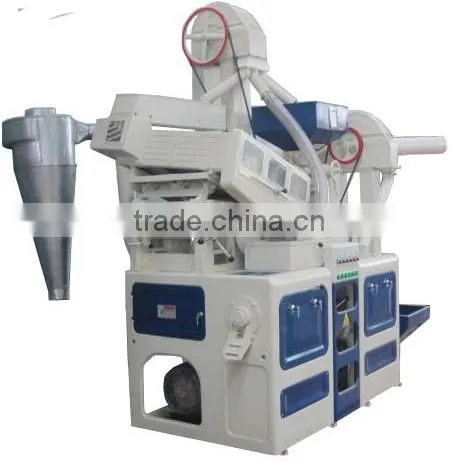

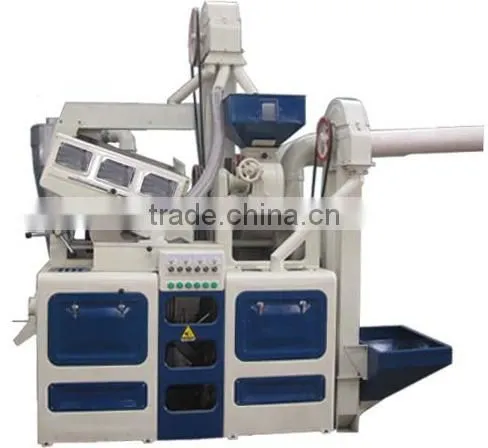

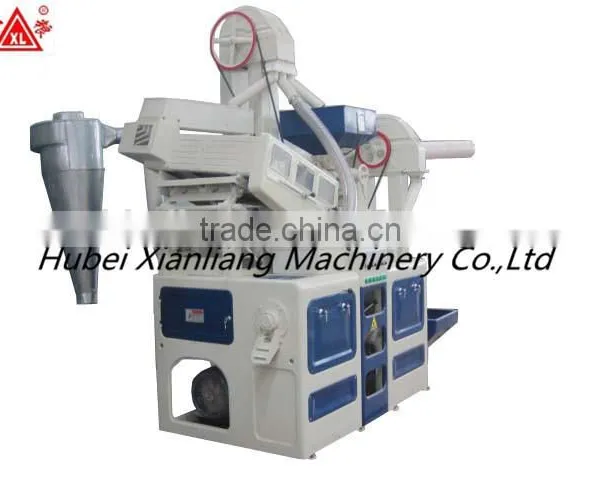

CTNM15 Complete De-stoner Rice Huller and Rice Whitener

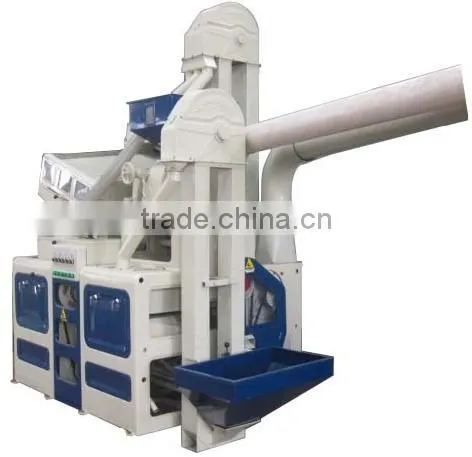

CTNM15 Complete De-stoner Rice Huller and Rice Whitener photo-1
CTNM15 Complete De-stoner Rice Huller and Rice Whitener photo-2

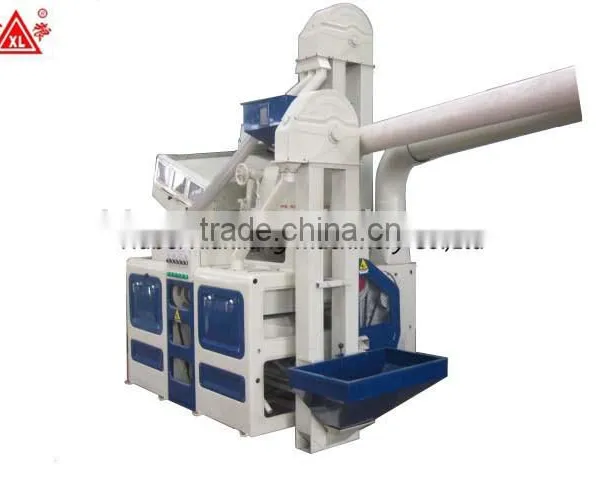

CTNM15 Complete De-stoner Rice Huller and Rice Whitener photo-3
CTNM15 Complete De-stoner Rice Huller and Rice Whitener photo-4
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
XL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Wuhan/Tianjin/Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hubei, China
Brand Name XL
Model Number CTNM15
Production Capacity 1000kg/H
Voltage 220/380V
Power(W) 24KW
Weight 1200KG
Dimension(L*W*H) 2500*2000*3000
Certification ISO
Warranty 1 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

CTNM15 complete de-stoner rice huller and rice whitener
Monthly production:200sets
Delivery time:within30 days

CTNM15 complete de-stoner rice huller and rice whitener

Product Description



The machine is a complete set rice milling machine, it can clean, remove dust, destone, mill rice all in one. The paddy separation effect is very good. Easy to install, operate and maintain. Winnow rice fast and the rice is polished. The paddy separation sieve air material quickly, no residual, belonging to the most advanced small gravity sieve type combined rice mill machine in the market, is the preferred product for farmers do small processing plant.



Feature:



1.Husker, whither, destoner all in one
2.Easy to install, operate and maintain;
3.Low consumption ;
4.Lower broken rate





















Main specification



Matched combined machines:

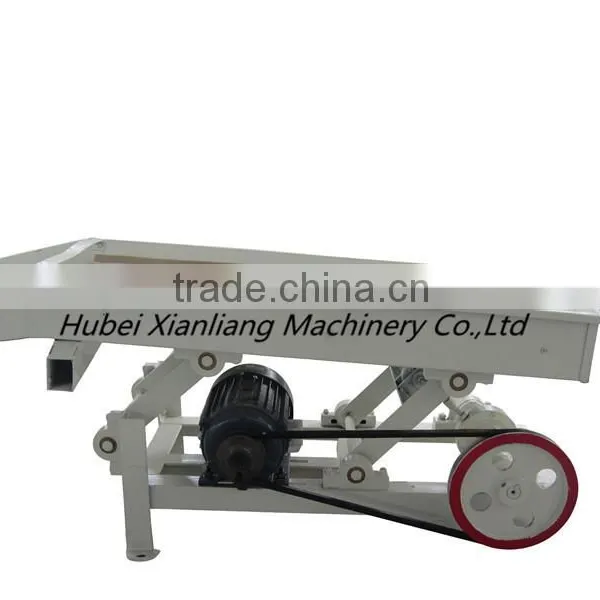

 1.43type vibrating cleaning sieve

 2.43type suction stoning machine

 3.MLNJ15 husker

 4.MGCZ70×5 Gravity Paddy Separator

 5.MNMF13 High-power Suction Type emery roller rice mill etc.



Main Parameters of matched machines:

Matched machine

Power(Kw)

Output(t/h)

single

total

single

total

43 cleaning sieve

0.3

18.3

1.2~1.5

0.7~1

43type stoning machine

1.4

1.2~1.5

MLNJ15 husker

3

1.2~1.5

MGCZ70×5 Gravity Paddy Separator

1.1

1~1.2

MNMF13 High-power Suction Type emery roll Rice Mill

11

1~1.2

DTG19/7S double elevating conveyor

1

1~1.5

DTG19/8D single elevating conveyor

0.5

1~1.5



Main Technical Parameters:



Capacity(kg/h) Power(kw) Speed of main spindle (r/min) Weight(kg) Rice yield from paddy Dimension
1000 24 1700 120 ≥ 71% 2500*2000*3000

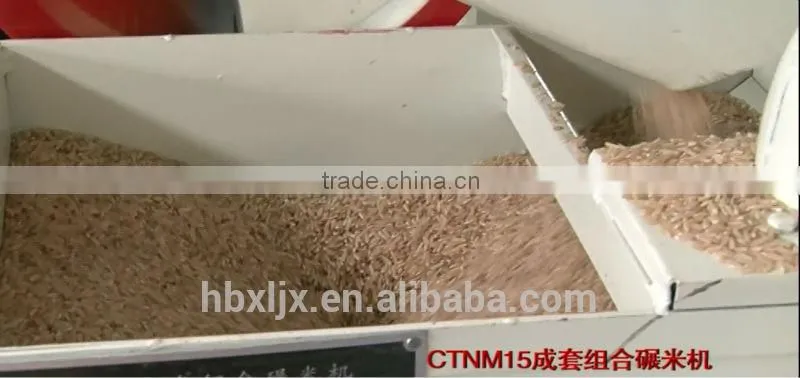

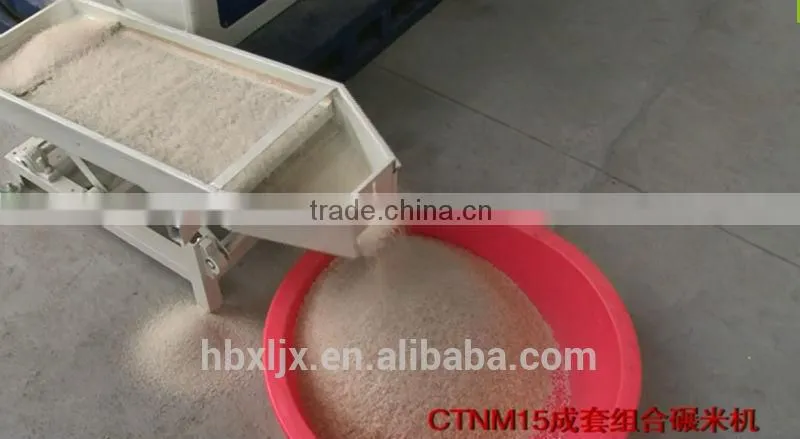

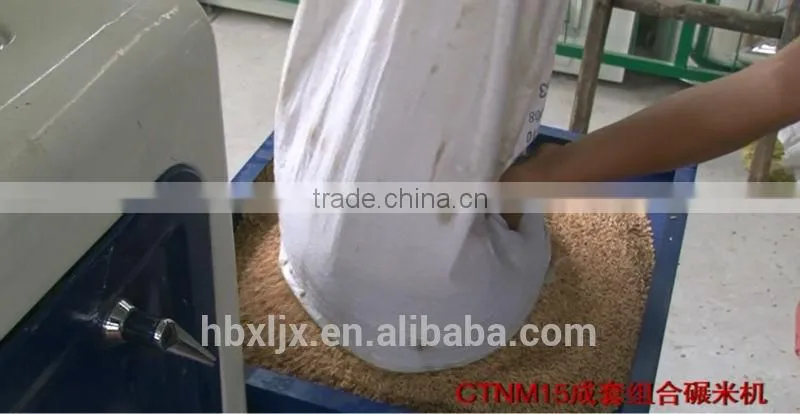

Product Show

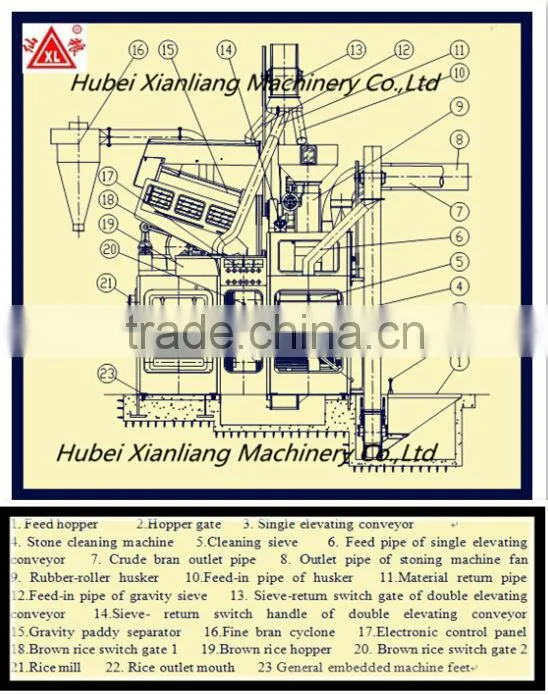

Process flow





















Company Information



Hubei Xianliang Machinery Co., Ltd. is a professional agricultural processing machinery manufacturer. It was established in 1990 and started to produce in 1991. Our company covers about 30000 square meters, and our annual production and sales amount reaches RMB40 million Yuan.



With almost ten years' research and development experience, our products won 21 National Patent, and our company has been identified as "High-tech enterprise".

Our products were listed in "catalogue of agricultural machinery products popularized by the state" in 2005 and became the agricultural machinery products supported and popularized by the state emphatically. We passed ISO9001:2000 international quality system certification in 2006 completely.



We are a grain machinery processing enterprise with perfect product quality, powerful technical strength and complete production equipment.

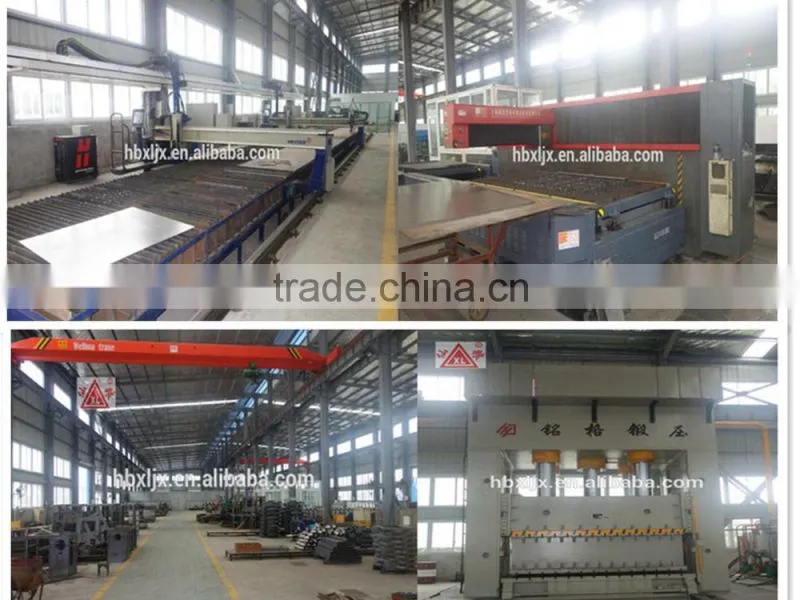

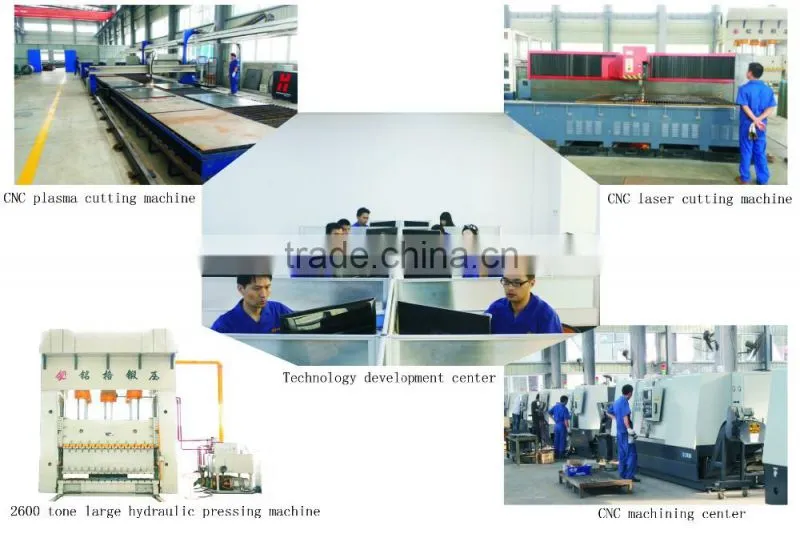

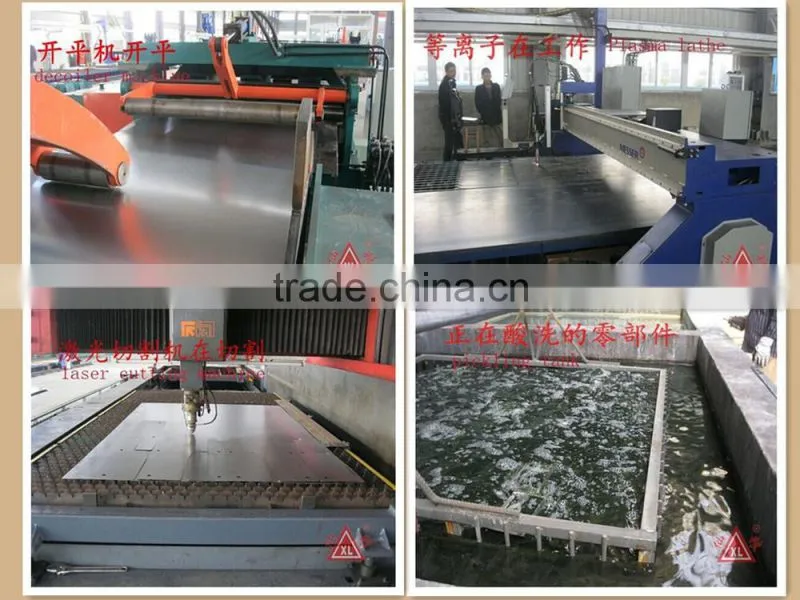

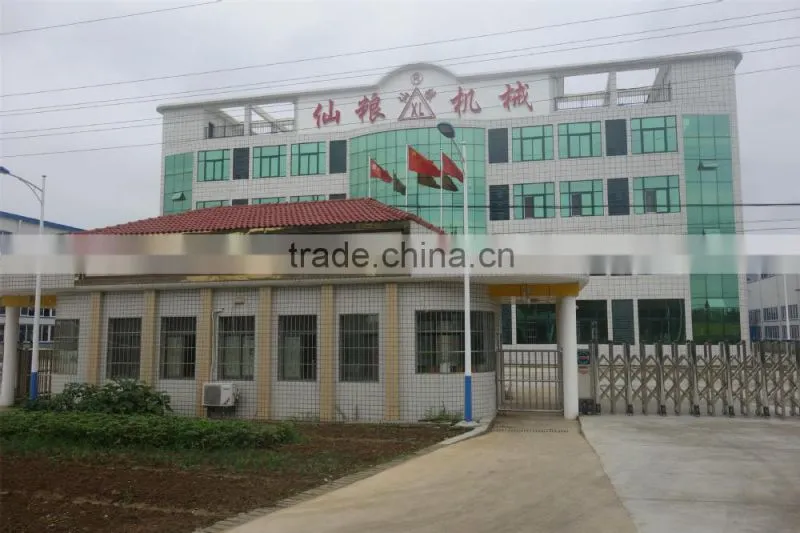

Factory show






































Contact information











If you gave any question, pls feel free to contact me.

We are manufacturer, we promise to supply the lowest factory price, the best quality products and the most thoughtful services!
